Product Description

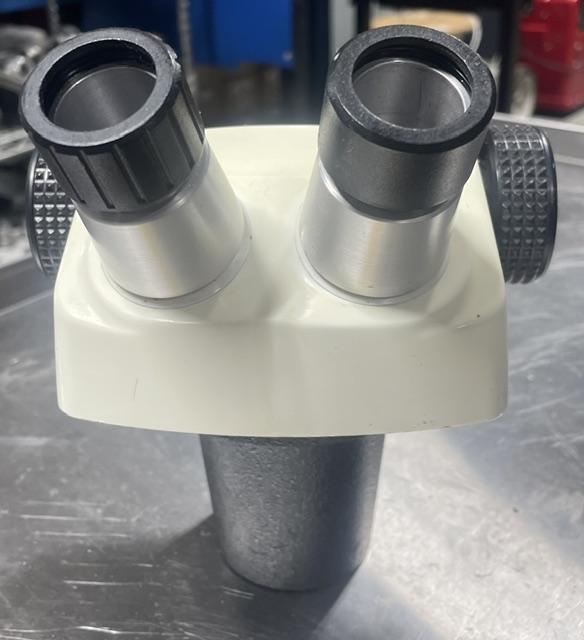

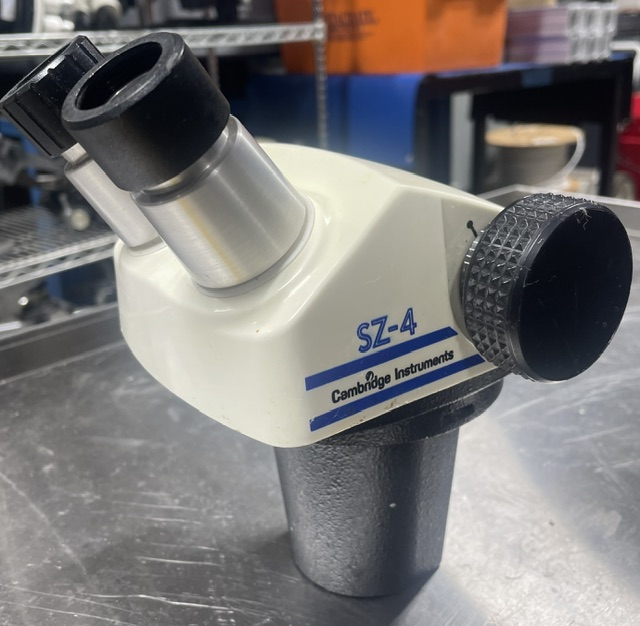

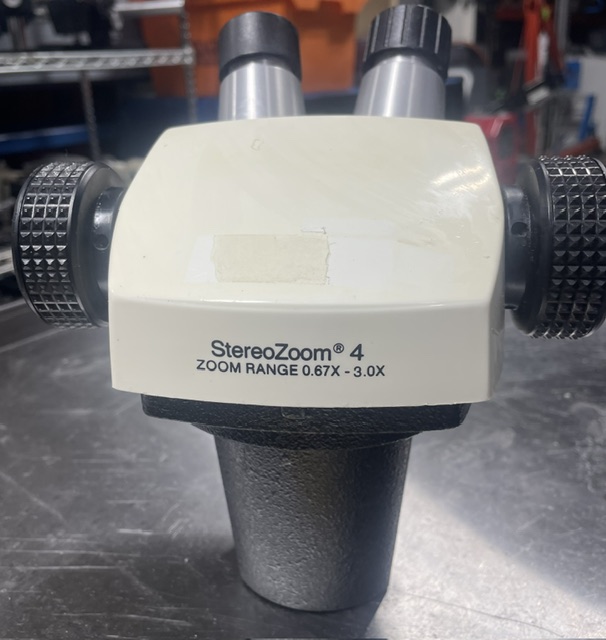

Cambridge Instruments SZ-4 Stereo Zoom Microscope Head – Binocular Body from the Classic Bausch & Lomb StereoZoom 4 Platform
This used Cambridge Instruments SZ-4 is a StereoZoom 4 microscope head (binocular body). The SZ-4 design is one of the most popular stereo microscopes of all time , originally manufactured by Bausch & Lomb and later taken over by Leica and also marketed under the Cambridge Instruments name . These microscopes were introduced in 1959 and manufactured through 2000 .
The SZ-4 features a 0.7x to 3x continuous zoom range and a 1:4.3 zoom ratio . When fitted with standard 10x eyepieces, the SZ-4 provides a total magnification range of 7x to 30x . The head includes a 30-degree inclined binocular head, adjustable diopters for both eyepiece tubes, and a wide interpupillary distance range of 52mm–72mm .
The SZ-4 is still widely used today for quality control applications due to its crisp images and reliability . It is compatible with original Bausch & Lomb StereoZoom components and accessories, allowing for trouble-free integration into existing setups .
Condition Note: This unit is untested.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Cambridge Instruments / Bausch & Lomb / Leica |
| Model | SZ-4 (StereoZoom 4) |
| Type | Stereo Zoom Microscope Head |
| Head Type | Binocular (30° inclined) |
| Zoom Range | 0.7x – 3.0x (7x – 30x with 10x eyepieces) |
| Zoom Ratio | 1:4.3 |
| Interpupillary Distance | 52 – 72 mm |
| Diopter Correction | > 5 Diopter |
| Compatibility | Bausch & Lomb / Leica / Cambridge components |
| Applications | Quality control, inspection, assembly, education, research |
| Condition | Used – Untested |
Key Features & Benefits
| Feature | Benefit |
|---|---|
| 0.7x–3.0x Zoom Range | Versatile magnification for a wide range of inspection and assembly tasks. |
| Classic StereoZoom Design | Proven optical design known for crisp images, reliability, and long service life . |
| Compatibility | Interchangeable with original Bausch & Lomb StereoZoom 4 components . |
| Binocular Comfort | 30° inclined eyepieces and adjustable diopters for comfortable extended use. |
| Ergonomic Zoom Control | Single continuous zoom knob on top for smooth magnification changes . |
Applications
-
Quality Control: Widely used for inspection, measurement, and QA tasks .
-
Assembly: Precision assembly of small components in manufacturing.
-
IT & Engineering: Inspection of circuit boards and small parts .
-
Education: Natural science, biological engineering, and teaching labs .
-
Research: General laboratory specimen inspection.
