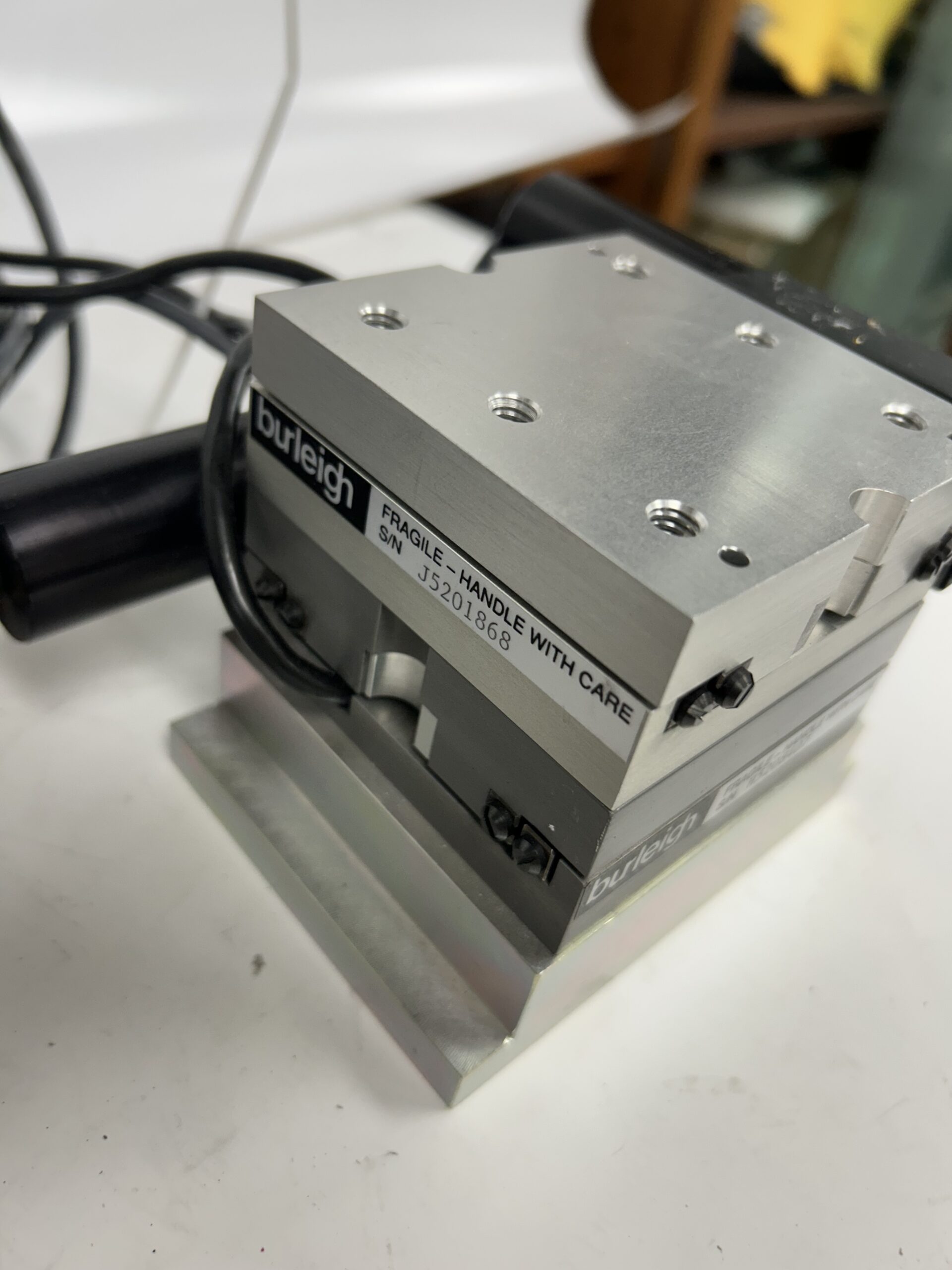

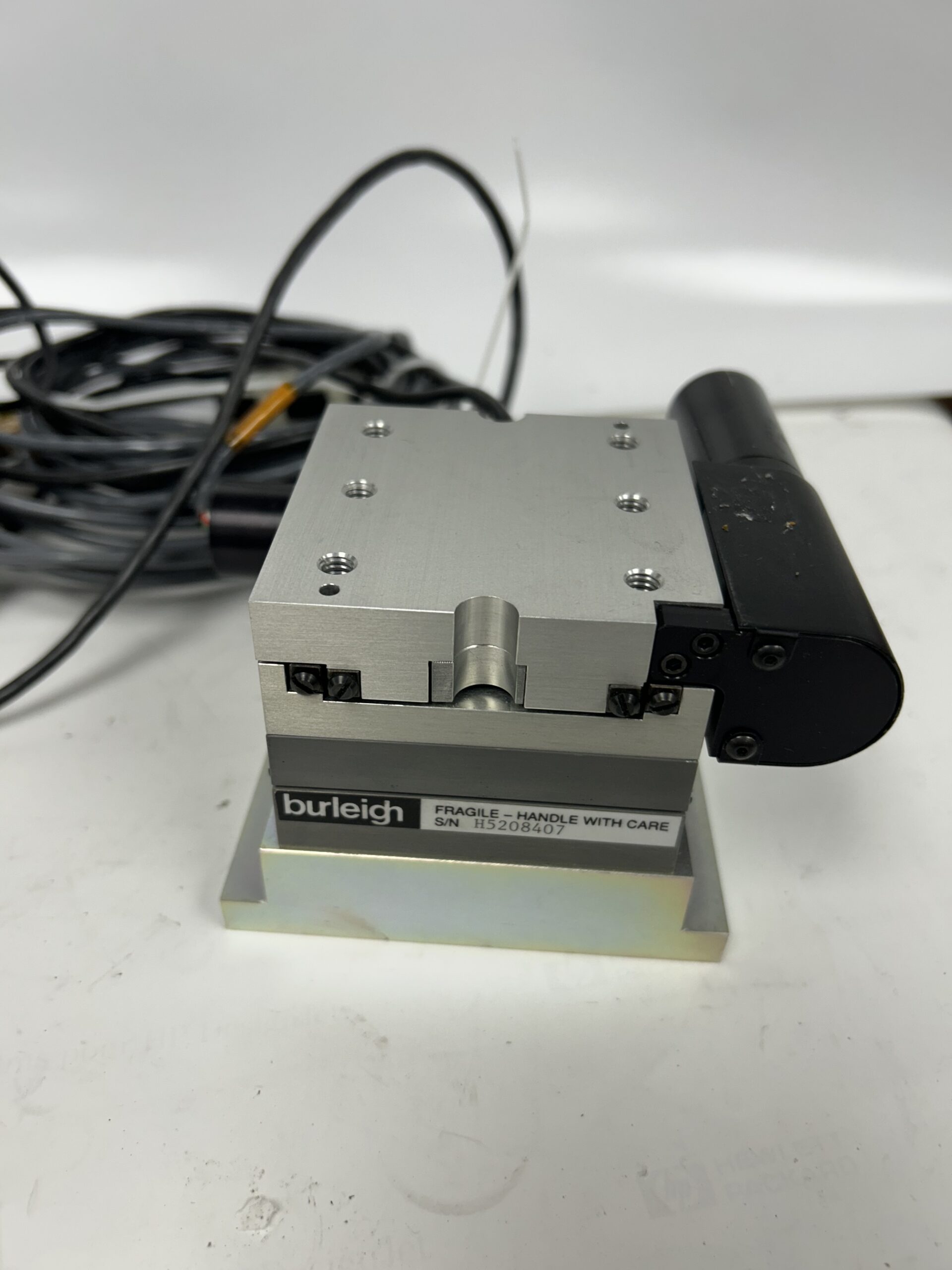

Burleigh 3″ x 3″ Transition Stages

Product Overview:
This pair of Burleigh 3″ x 3″ Transition Stages offers exceptional precision and reliability, featuring XY motion and integrated piezoelectric motors for ultra-fine adjustments. Designed for demanding applications, these stages deliver high performance for laboratory, optical, and industrial environments.

Key Features:

• Piezoelectric Motor Integration: Enables precise, smooth, and repeatable XY motion control.
• High Precision Movement: Suitable for sub-micron positioning requirements.
• Compact Dimensions: 3″ x 3″ platform size ideal for constrained workspaces.
• Durable Build: Anodized aluminum construction ensures longevity and resistance to wear.
• Fine-Tuned Adjustability: Perfect for optical alignment, micro-assembly, and experimental setups.
• Dual Stages: Includes two matching stages for coordinated or independent operation.

Specifications:

• Manufacturer: Burleigh
• Platform Dimensions: 3″ x 3″ (76.2mm x 76.2mm)
• Motion Range: Full XY planar adjustments with sub-micron resolution.
• Actuation Type: Piezoelectric motors for precise, vibration-free control.
• Material: High-grade anodized aluminum for lightweight durability.
• Load Capacity: Accommodates small to medium loads, such as optical or mechanical components.
• Mounting Options: Pre-drilled for flexible configurations.
• Applications: Precision optical alignment, micro-manipulation, and research setups.

Applications:

• Optical Experiments: Fine alignment of lasers, lenses, and photonic components.
• Microscopy: Enhances precision in imaging and experimental systems.
• Research Laboratories: Ideal for setups requiring high repeatability and stability.
• Advanced Manufacturing: Facilitates micro-assembly and inspection processes.
• Educational Demonstrations: Perfect for teaching principles of motion control and precision engineering.

Included in the Set:

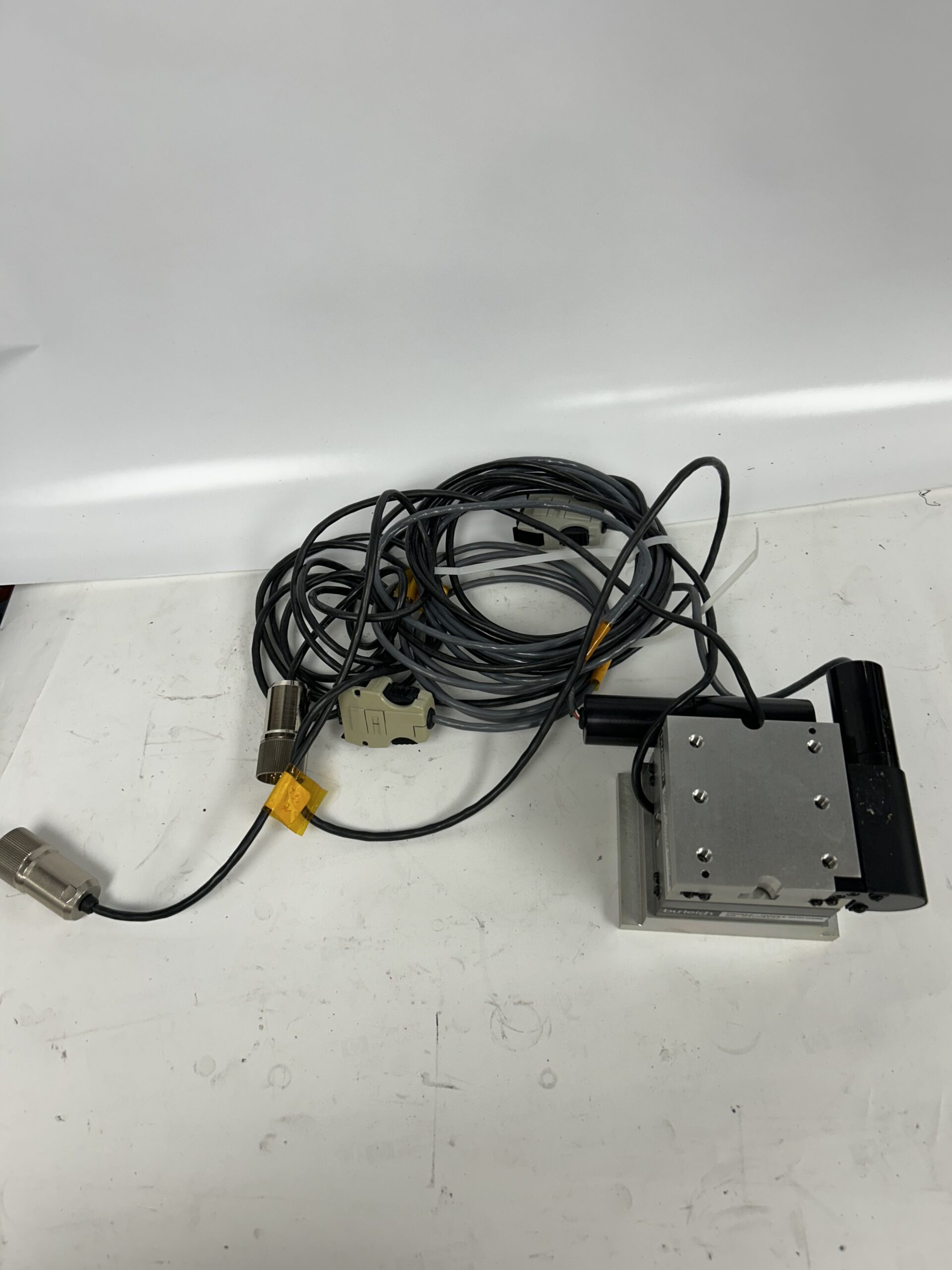

• 1x Burleigh 3″ x 3″ Transition Stages with integrated piezoelectric motors

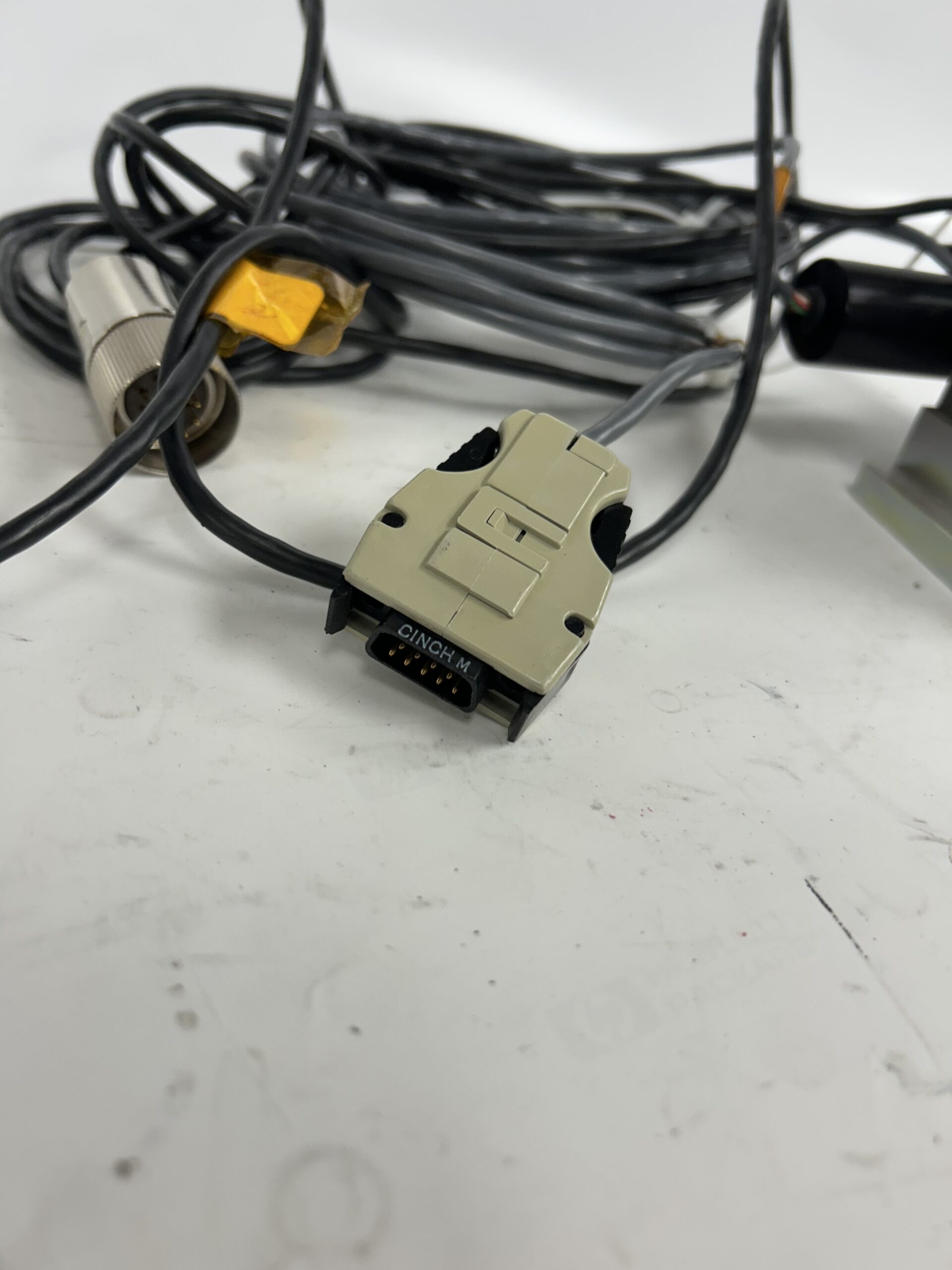

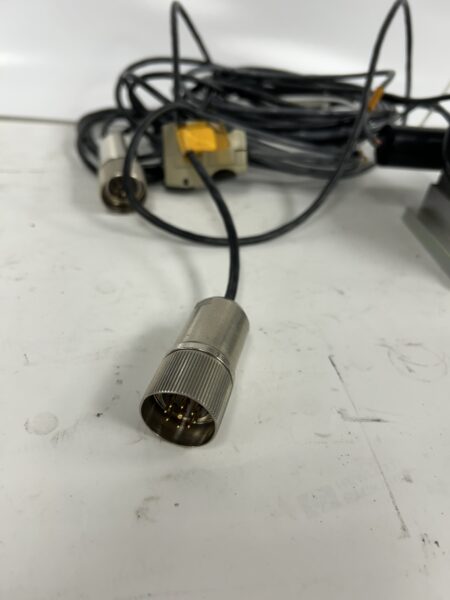

• Connection cables and hardware
