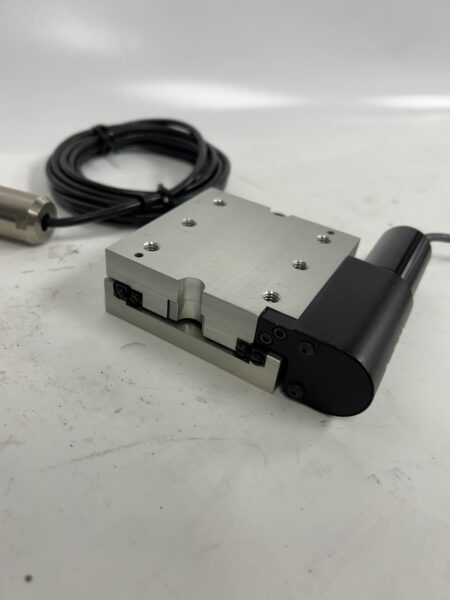

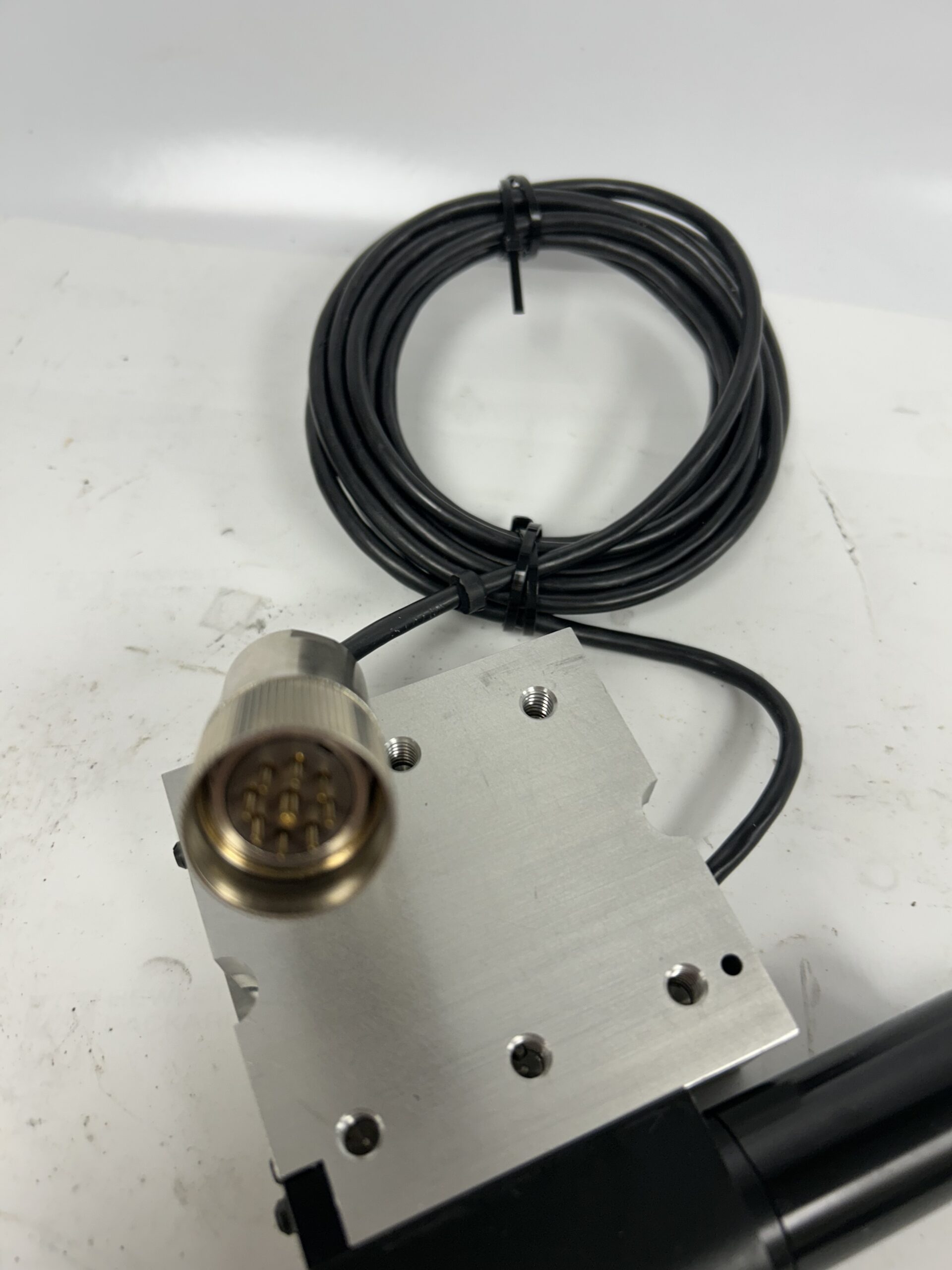

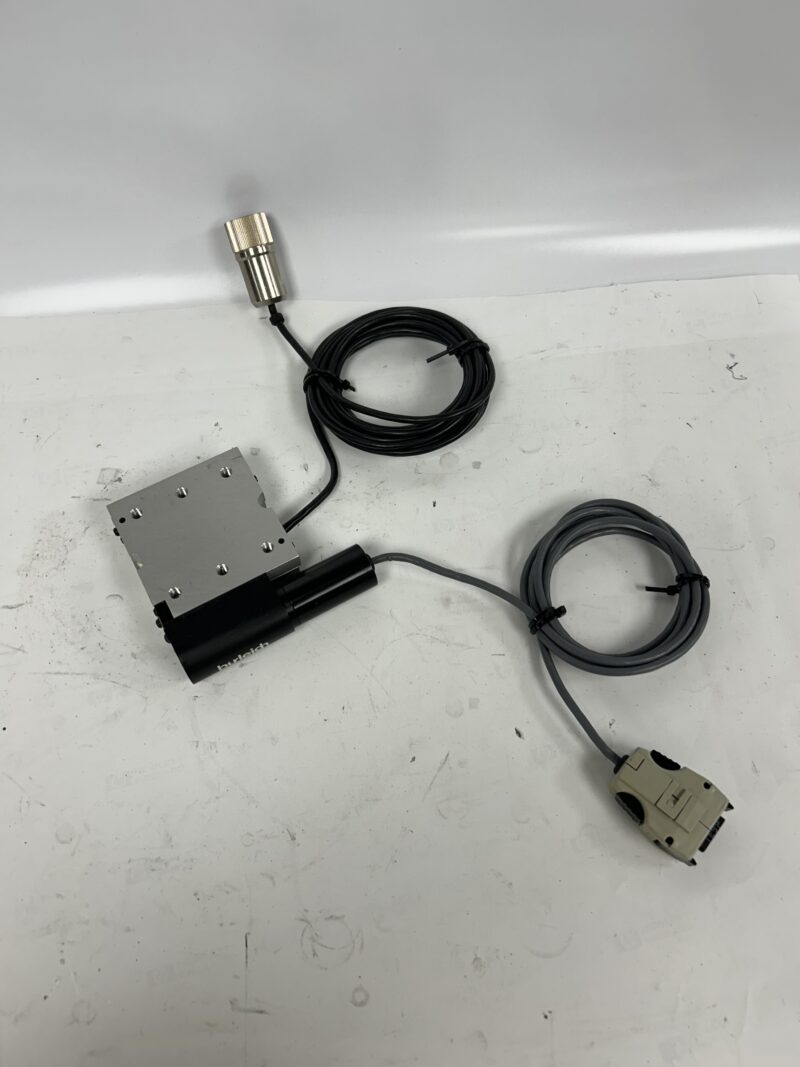

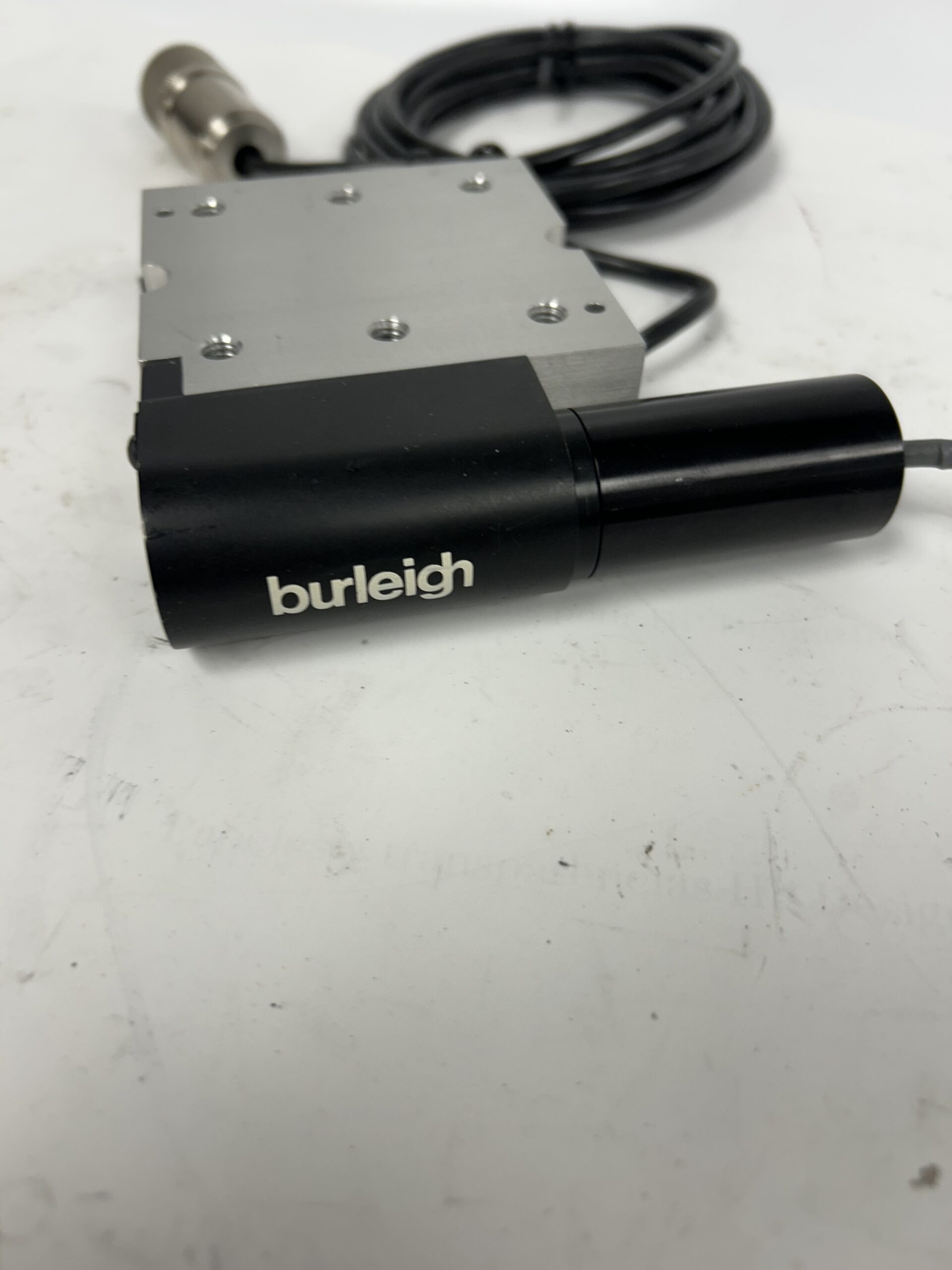

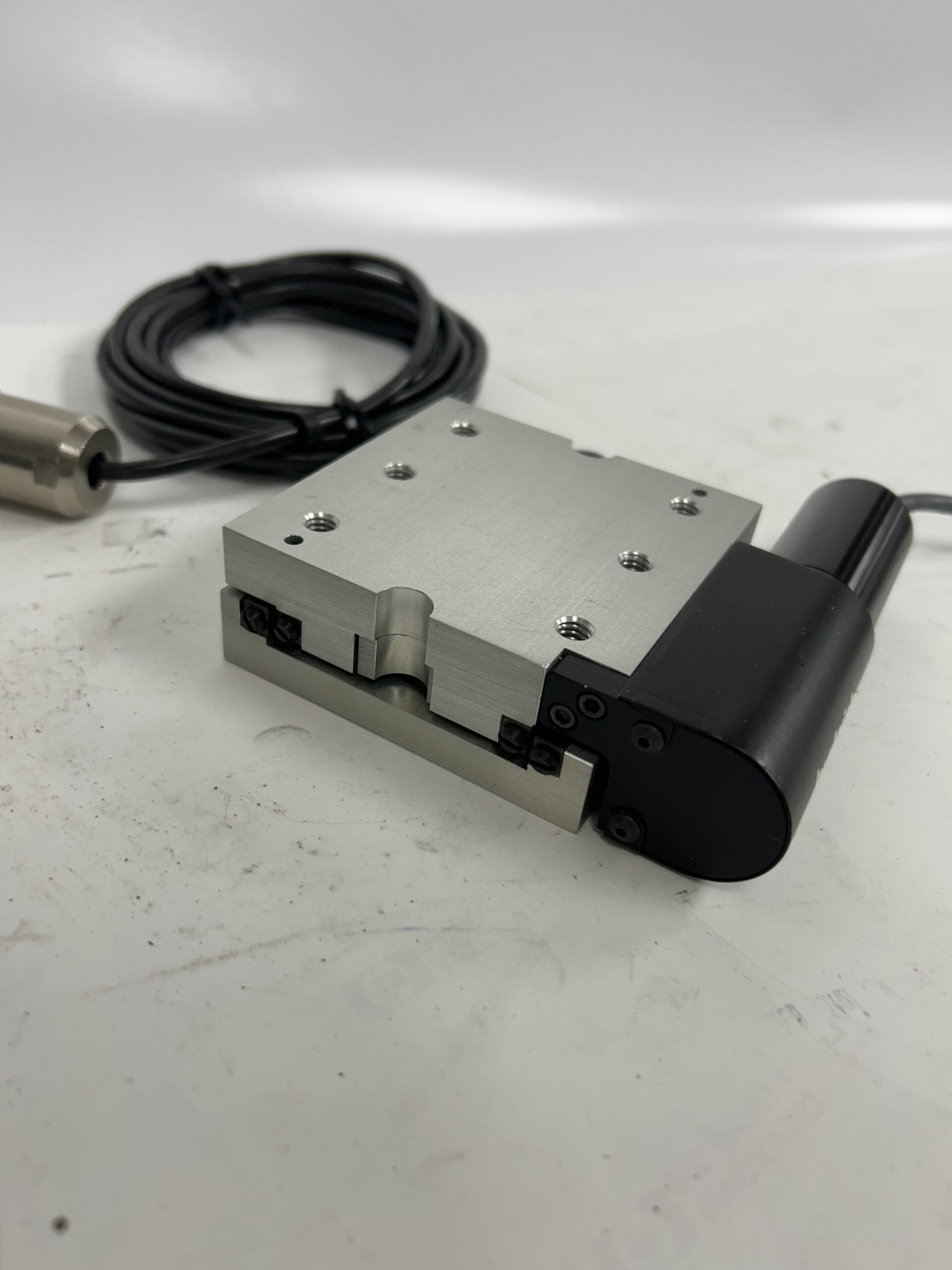

Burleigh 3″ x 3″ Transition Stage

Product Overview:
The Burleigh 3″ x 3″ Transition Stage (Model SN J5201862) is a precision-engineered platform designed for applications requiring smooth, accurate motion control. This stage is ideal for laboratory, research, and industrial setups, enabling fine positional adjustments with repeatable accuracy.

Key Features:

• Precision Engineering: Smooth transitions with minimal backlash for delicate applications.
• Compact Design: 3″ x 3″ form factor, suitable for confined workspaces.
• Durable Construction: Built to withstand rigorous use in demanding environments.
• Versatile Compatibility: Fits seamlessly with a range of optical and mechanical systems.
• Adjustable Mechanics: Offers controlled, fine-tuned movements in various directions.

Specifications:

• Manufacturer: Burleigh

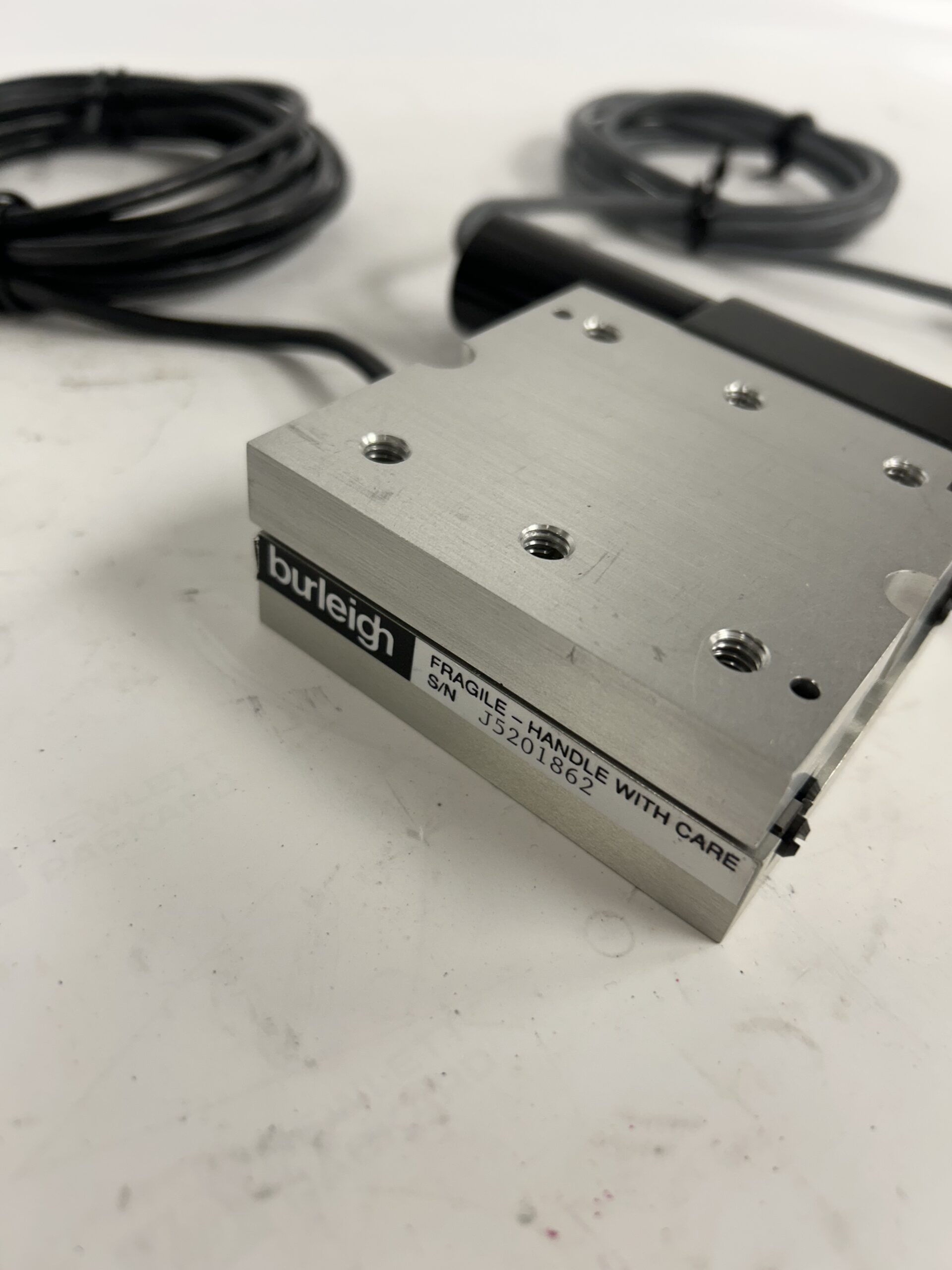

• Model Number: SN J5201862
• Platform Dimensions: 3″ x 3″ (76.2mm x 76.2mm)
• Material: High-grade anodized aluminum for durability and reduced weight
• Motion Type: Transition stage for linear and positional adjustments
• Adjustment Range: Fine control over X, Y, and limited Z-axis motion
• Accuracy: Sub-micron repeatability for high-precision tasks
• Load Capacity: Supports lightweight to medium loads, suitable for optical assemblies
• Mounting Options: Pre-drilled holes for flexible mounting configurations
• Applications: Designed for research labs, optical experiments, and micro-assembly

Applications:

• Optics and Photonics: Positioning lasers, lenses, and other optical components.
• Microscopy: Precision alignment for imaging systems.
• Research and Development: Ideal for experiments requiring exact positioning.
• Assembly Lines: Aids in the fine-tuned assembly of intricate components.
• Educational Labs: Demonstrates principles of motion and precision control.

Included:

• 1x Burleigh 3″ x 3″ Transition Stage (SN J5201862)

Conclusion:
The Burleigh 3″ x 3″ Transition Stage offers unmatched precision and durability, making it an essential tool for laboratories, industrial environments, and research setups. Its compact design and fine motion control capabilities cater to a wide range of high-precision applications.
