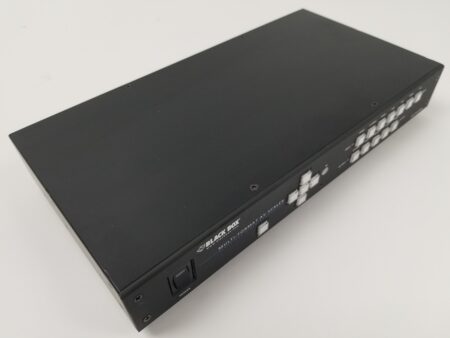

Black Box AVSC-7DA-HDMI Multi-Format AV Scaler/Switcher with DisplayPort.

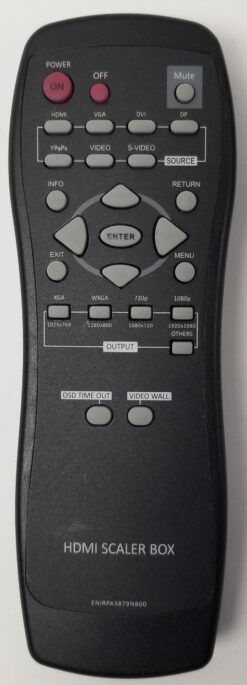

Unit powers on and tests O.K. With power supply and remote. No manual.
As shown. Purchaser responsible for system compatibility, proper wiring and
correct use.
From Black Box: Scales and scan-converts video from composite, S-video,
component, VGA, DVI, HDMI, and DisplayPort sources to HDMI
and VGA. It will support input resolutions up to 2560 x 1600 for
DisplayPort sources, and up to 1080p (at 50 or 60 Hz) and 1920 x 1200
(WUXGA) for DisplayPort, HDMI, DVI, component, and VGA sources. After
scaling and re-timing, if required, it can output at up to 1600 x 1200
(UXGA) and 1080p resolutions. Additionally, NTSC and PAL/SECAM SD video
signals are supported across the inputs and outputs.
The video inputs apart from DisplayPort are each paired with a stereo
analog input, and the component input features a S/PDIF (RCA) audio input
as well as the analog one. There is one stereo analog and one S/PDIF
digital audio output. In addition to the separate inputs and output,
HDMI-embedded audio will also pass through the device.
The device can be controlled locally via front-panel controls or using
an IR remote control. For remote operation, there is an RS-232
port for automation systems a software-based control, and there is an
Ethernet port for controlling it over a network.
More detailed technical specifications and options available online.
