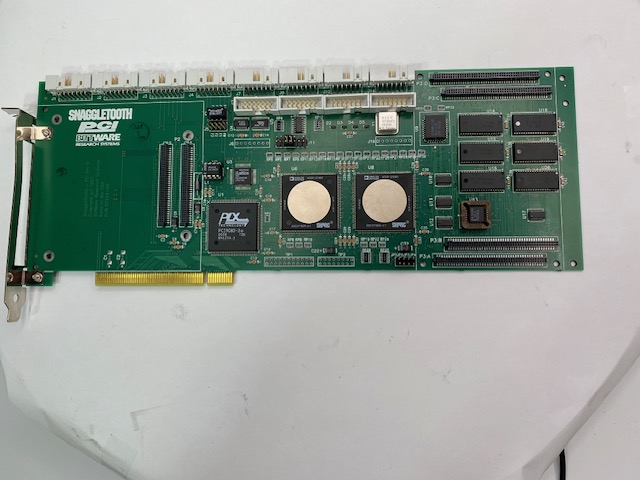

Bittware Research Systems Snaggletooth – PCI DSP Board

The BittWare Snaggletooth-PCI is a legacy PCI-based DSP board designed for high-performance signal processing applications. It features dual Analog Devices ADSP-2106x SHARC processors, renowned for their speed and efficiency in digital signal processing tasks.

🔧 Key Specifications

• Processors: Two ADSP-2106x SHARC DSPs running at 40 MHz.

• Memory: Up to 512K × 48 bits of zero-wait-state external SRAM.

• I/O Interfaces:

  • BITSI mezzanine site for off-the-shelf I/O interfaces.

  • SHARCPAC interface for processor and memory expansion.

  • Eight external link ports (up to 40 MB/s each).

  • Four external serial ports (up to 40 MB/s each).

• Bus Interface: PCI bus for high-speed data transfer.

These features make the Snaggletooth-PCI suitable for applications requiring intensive signal processing, such as telecommunications, radar systems, and scientific instrumentation.
