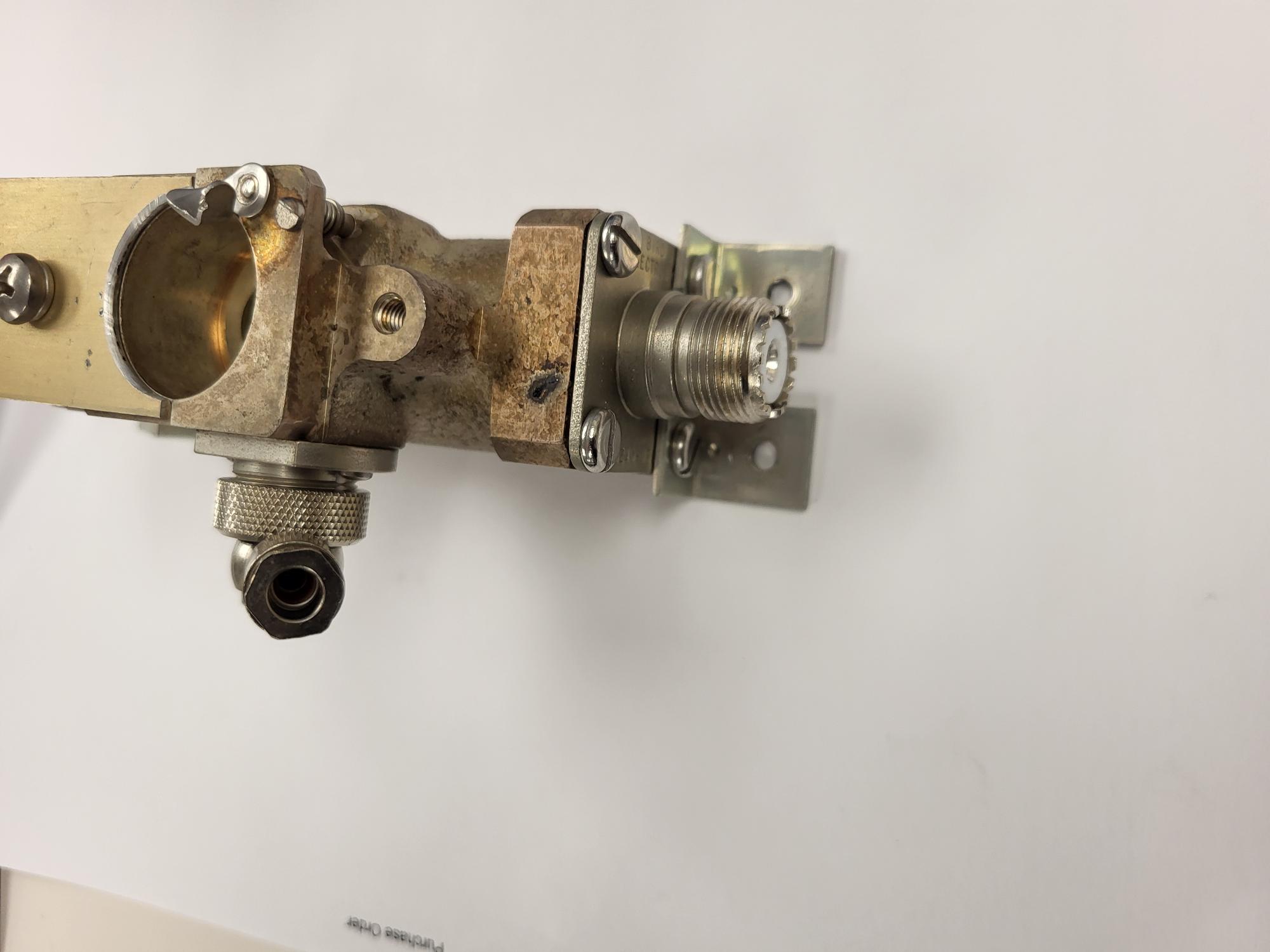

Bird Electronics 4240-000 Thruline RF Line Section with 4240-5-5 Connectors

Bird Electronics 4240-000 Thruline RF Line Section with 4240-5-5 Connectors

Designed to be inserted between an rf transmitter and Antenna or RF load.  It allows for the measurement of forward and relfected power usingf plug-in elements

Key Features and information:

• TYPE: 1-5/8″ Thruline RF Line Section.
• Model 4715-000
• Connectors: Equipped with 4240–5- Type female connectors, which are quick-change solderless RF connectors.
• Function: Used for measuring RF Power, it has two sockets for plug-in-elements to measure forward and reflected power simultaneously
• Line Size: 1-5/8″
• Length: 6.75 inches.
• Weight: 3.25 lbs.
• Impedance: 50 Ohms
• Installation:  Designed for insertion between a transmitter and antenna or load.
• Element Sockets:  Features two sockets for inserting plug-in elements.
• Connector Replacement:  The quick change connectors can be easily replaced in the field by removing four screws.
