Belden 8303 060 Shielded Cable

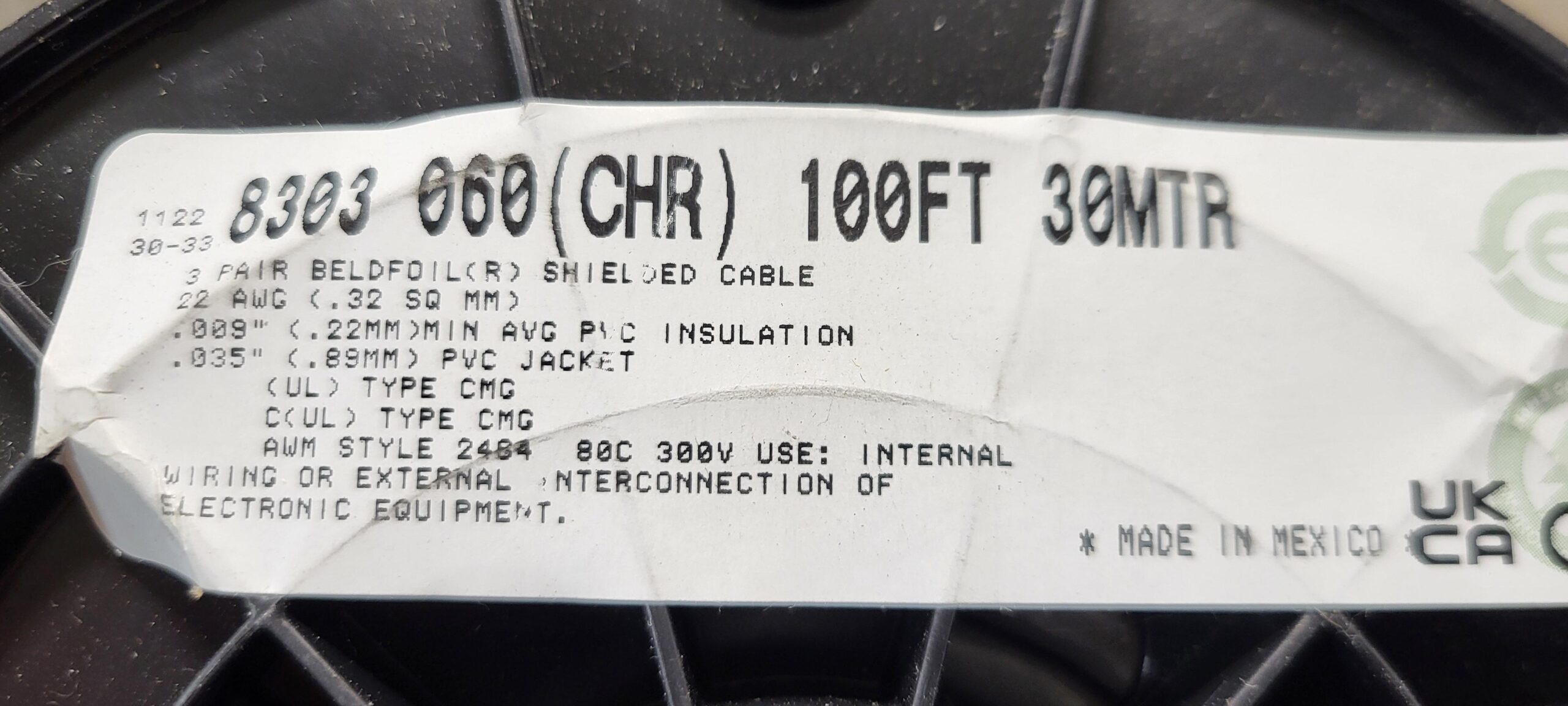

Reel is 100 ft. We have almost a full reel, it is not measured.
Belden’s 8303 cable is designed for low-capacitance, multi-pair applications
such as RS-232 computer communications, analog/digital signal transmission, and audio panel wiring.
-
-
Three twisted pairs (total of 6 conductors).
-
Conductors composed of 22 AWG stranded (7 × 30) tinned copper.
-
Each conductor insulated with semi-rigid PVC (SR-PVC).
-
Overall cable shielded with a Beldfoil® aluminum/polyester tape (100% coverage) plus a tinned copper braid (65% coverage).
-

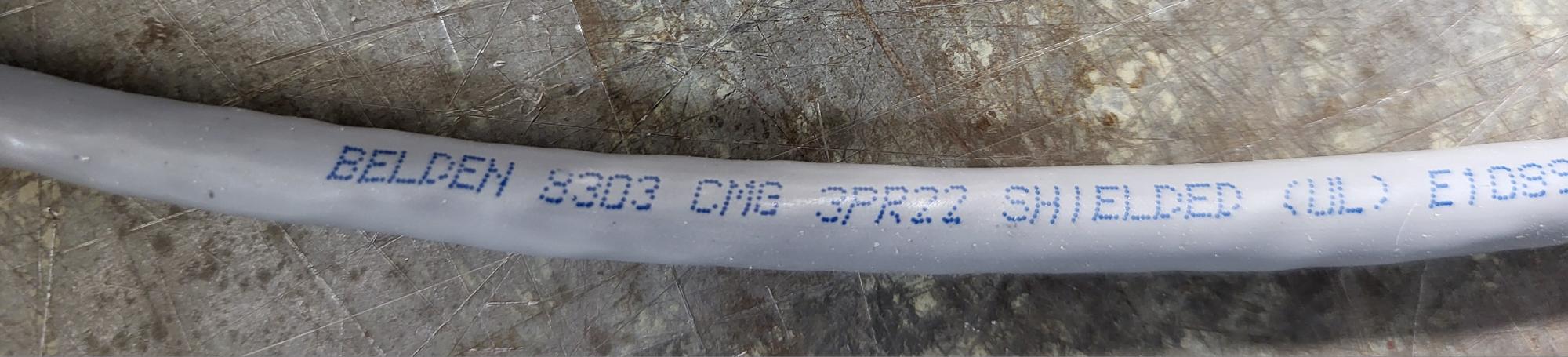

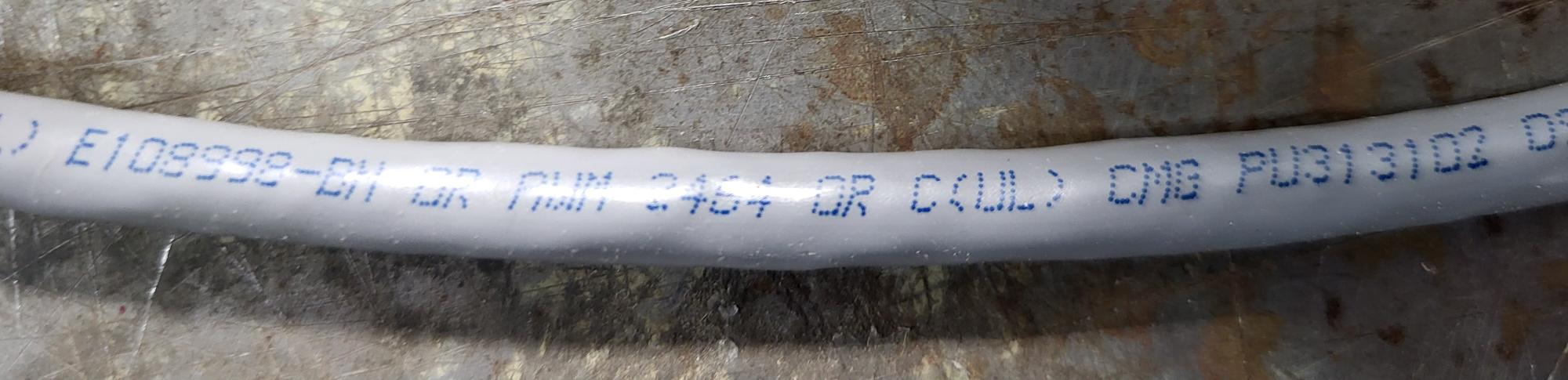

Outer jacket is chrome-colored PVC.
-
-
Electrical/Mechanical Properties:
-
Capacitance: ~35 pF/ft between conductors; ~63 pF/ft to shield.
-
DC resistance: approximately 8.9 Ω/1000 ft.
-
Velocity of propagation: 60%.
-
Current capacity: up to 2.8 A per conductor at 25 °C.
-
Voltage rating: 300 V.
-
Operating temperature: –30 °C to +80 °C.
-
-
Available Lengths:
-
Reel options include 100 ft, 500 ft, 1,000 ft, and 5,000 ft spools.
-
Summary Table
| Feature | Details |
|---|---|
| Series | Belden 8303 (low-capacitance multi-pair cable) |
| “060” / “chr” | Chrome-colored PVC outer jacket |
| Shielding | Beldfoil® tap + tinned copper braid |
| Conductors | 3 twisted pairs, 22 AWG stranded tinned copper |
| Insulation | Semi-rigid PVC |
| Length Options | 100 ft, 500 ft, 1,000 ft, 5,000 ft |
| Usage | RS-232, analog/digital signals, audio, control |
What Does “chr” Mean?
| Weight | 15 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
