Product Description

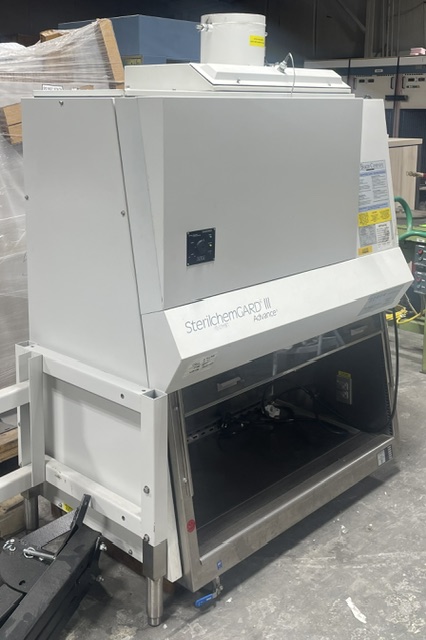

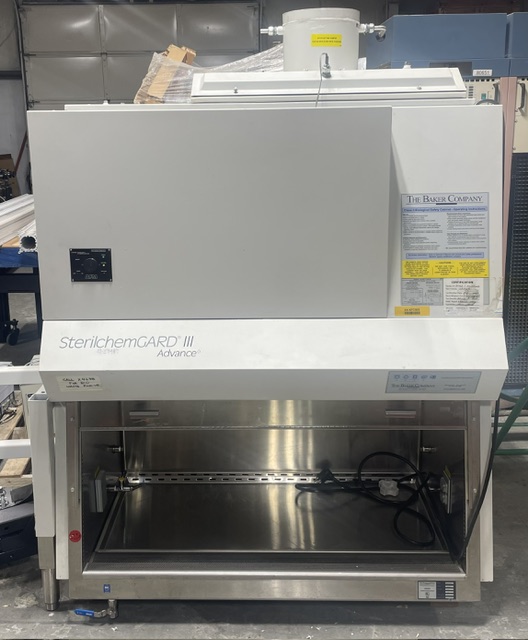

Baker SterilchemGARD III Advance SG-403TX – Class II, Type B2 Total Exhaust Biological Safety Cabinet for Biosafety Levels 1-3
This used Baker Company SG-403TX is a SterilchemGARD III Advance Class II, Type B2 biological safety cabinet designed for work with biological agents requiring containment and a sterile environment. This model is a total exhaust cabinet, meaning 100% of the air is exhausted to the outside, making it suitable for work with volatile toxic chemicals and radionuclides in addition to biological agents .

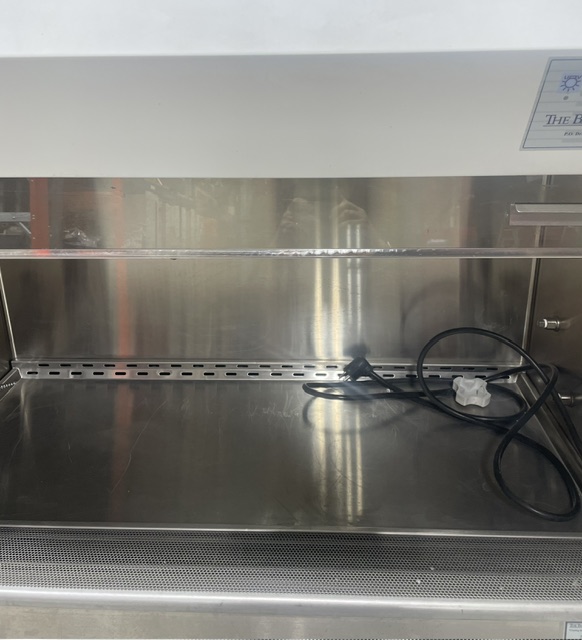

The cabinet is 4 feet wide and features a stainless steel, seamless work surface for easy cleaning . The system is designed with an internal exhaust blower that is interlocked with the supply blower to ensure proper airflow balance. It features a microprocessor control panel with touch buttons, an air flow monitor (AFM), and audible alarms for sash height and exhaust flow failure . The unit also includes a 32W UV sterilization lamp (replacement available), a 32W fluorescent light, and an 8″ exhaust collar .
Condition Note: This unit is untested and sold as-is. It is a complex piece of life-safety equipment that requires professional installation, certification (e.g., NSF/ANSI 49), and testing before use. No accessories, UV lamp, or exhaust blowers are guaranteed unless specified.
Key Specifications
| Specification | Details |
|---|---|

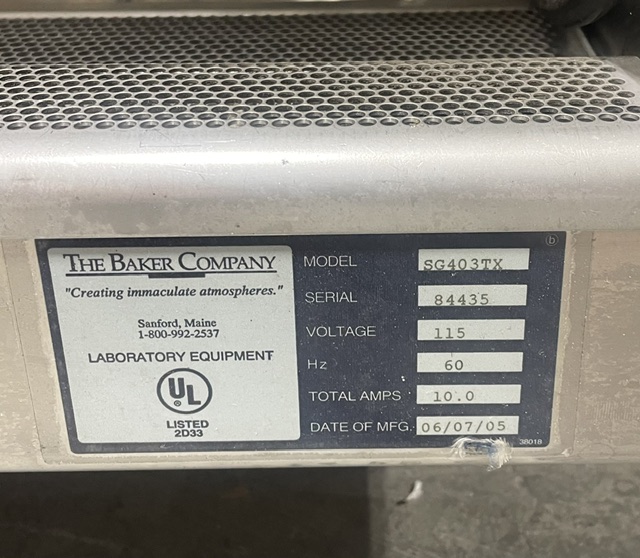

| Manufacturer | The Baker Company, Inc. |
| Model | SG-403TX |
| Series | SterilchemGARD III Advance |
| Type | Class II, Type B2 (Total Exhaust) |
| NSN | 6640-01-590-6246 |
| Biosafety Level | 1-3 |
| Width | 4 ft (approx. 48″) |
| Work Area (W x F-B x H) | 46″ x 22.5″ x 10.6″ (approx.) |
| External Dimensions (W x F-B x H) | 53.5″ x 30″ x 62.6″ (approx.) |
| Power Requirements | 115V, 60Hz, 10A (4A blower, 460W) |
| Weight | 550 lbs (approx.) |
| Exhaust | 100% exhausted via 10″ duct |
| Filter | HEPA (supply and exhaust) |
| Lighting | 32W Fluorescent, 32W UV Germicidal |
| Control | Microprocessor with touch controls |
| Year | [Specify – e.g., 2001 model available as a used unit] |
| Condition | Used – Untested |
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Class II, Type B2 Total Exhaust | Provides maximum protection for personnel, product, and environment, suitable for work with hazardous chemicals . |
| NSF/ANSI 49 Certification | Designed to meet the rigorous standards for biological safety cabinets. |
| Stainless Steel Work Surface | Durable, easy to clean, and seamless for decontamination . |
| Microprocessor Control Panel | Intuitive touch controls for blower, lights, and UV lamp . |
| Airflow Monitor (AFM) | Continuously monitors exhaust flow; shuts off supply blower if airflow drops below safe levels . |
| UV Sterilization Lamp | 32W germicidal UV light for decontamination of the work surface . |
| Sash Alarm | Audible alarm when sash is above the 8″ safe operating height . |
| 10″ Exhaust Collar | Standard connection point for external exhaust ducting . |
| NSN Registration | Confirms compliance with military and government specifications . |
Applications
-
Life Science Research: Cell culture, microbiology, and virology.
-
Clinical Laboratories: Handling infectious agents and patient samples.
-
Pharmaceutical R&D: Sterile compounding and drug development.
-
Academic Institutions: Teaching and research labs.
-
Government & Military: Biosafety level 1-3 containment facilities .
