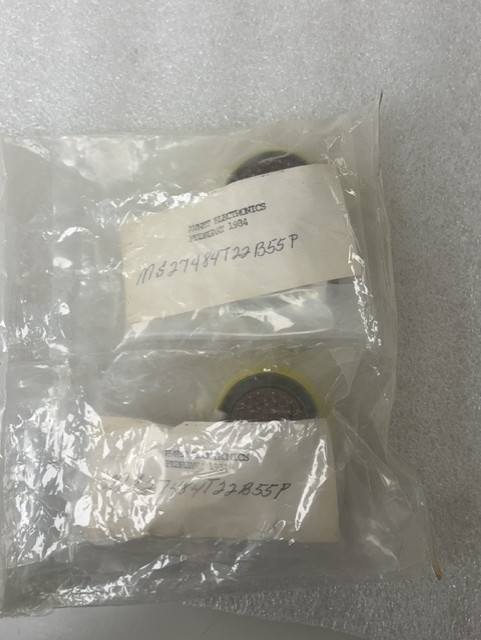

Avnet MS27484T22B55P is a military-spec circular connector equivalent to the MIL-DTL-38999 Series II family. It is a straight plug with a bayonet coupling mechanism, designed for aerospace, military, avionics, and harsh-environment industrial applications.
Product Overview
- Part Number: MS27484T22B55P
- Connector Type: Circular MIL-Spec Plug
- Shell Size: 22
- Insert Arrangement: 22-55
- Contacts: 55 crimp pin contacts
- Coupling Style: Bayonet
- Shell Material: Aluminum alloy
- Finish: Olive Drab Cadmium over Chromate
- Contact Plating: Gold over copper alloy
- Environmental Rating: Environmentally sealed
- Temperature Range: -65°C to +175°C / +200°C depending on manufacturer variant
Applications
- Military and defense electronics
- Aerospace wiring harnesses
- Ground support equipment
- Harsh industrial environments
- EMI/RFI-sensitive systems requiring high shielding performance
| Weight | 2 lbs |
|---|---|
| Dimensions | 9 × 6 × 1 in |
