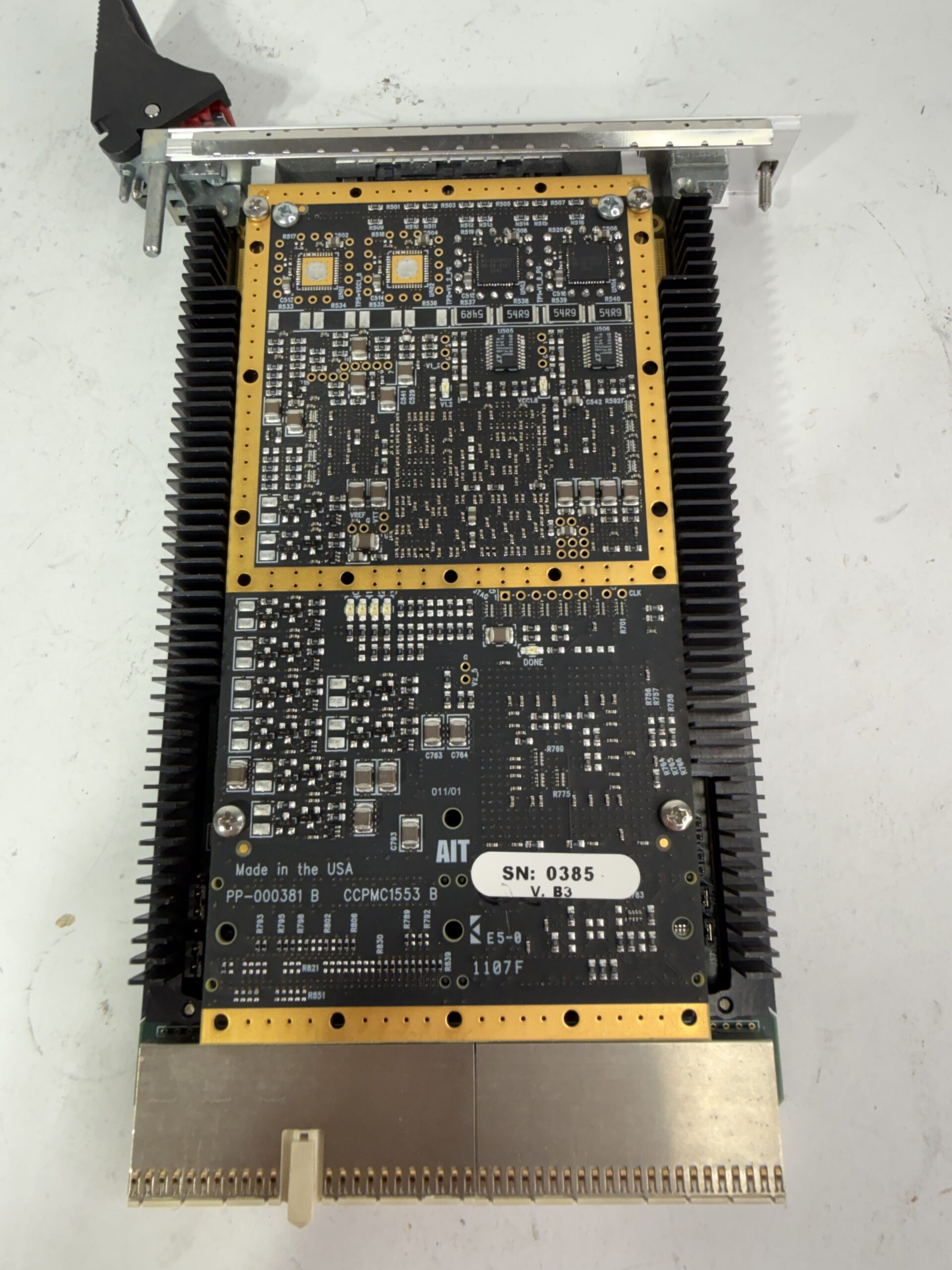

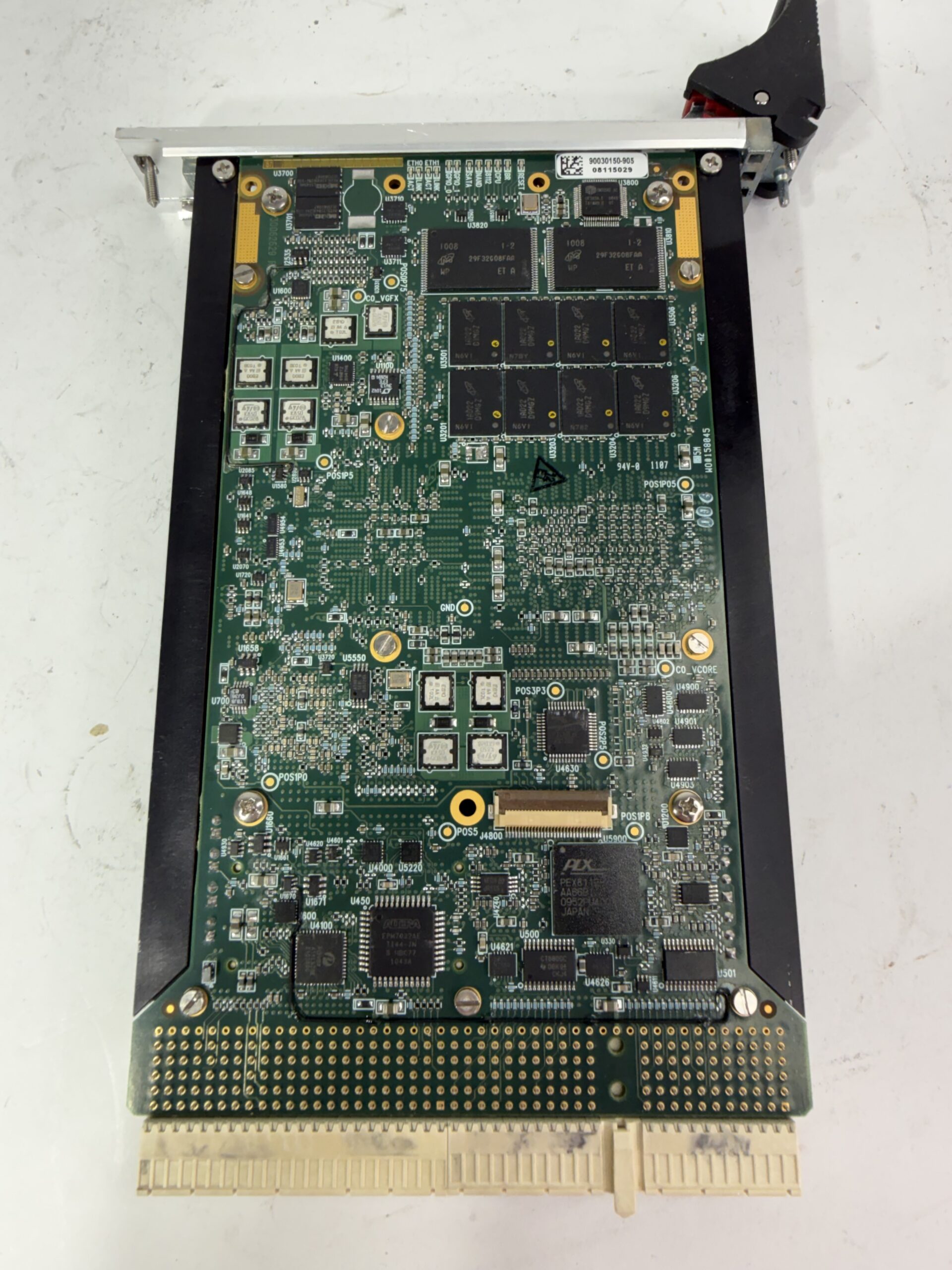

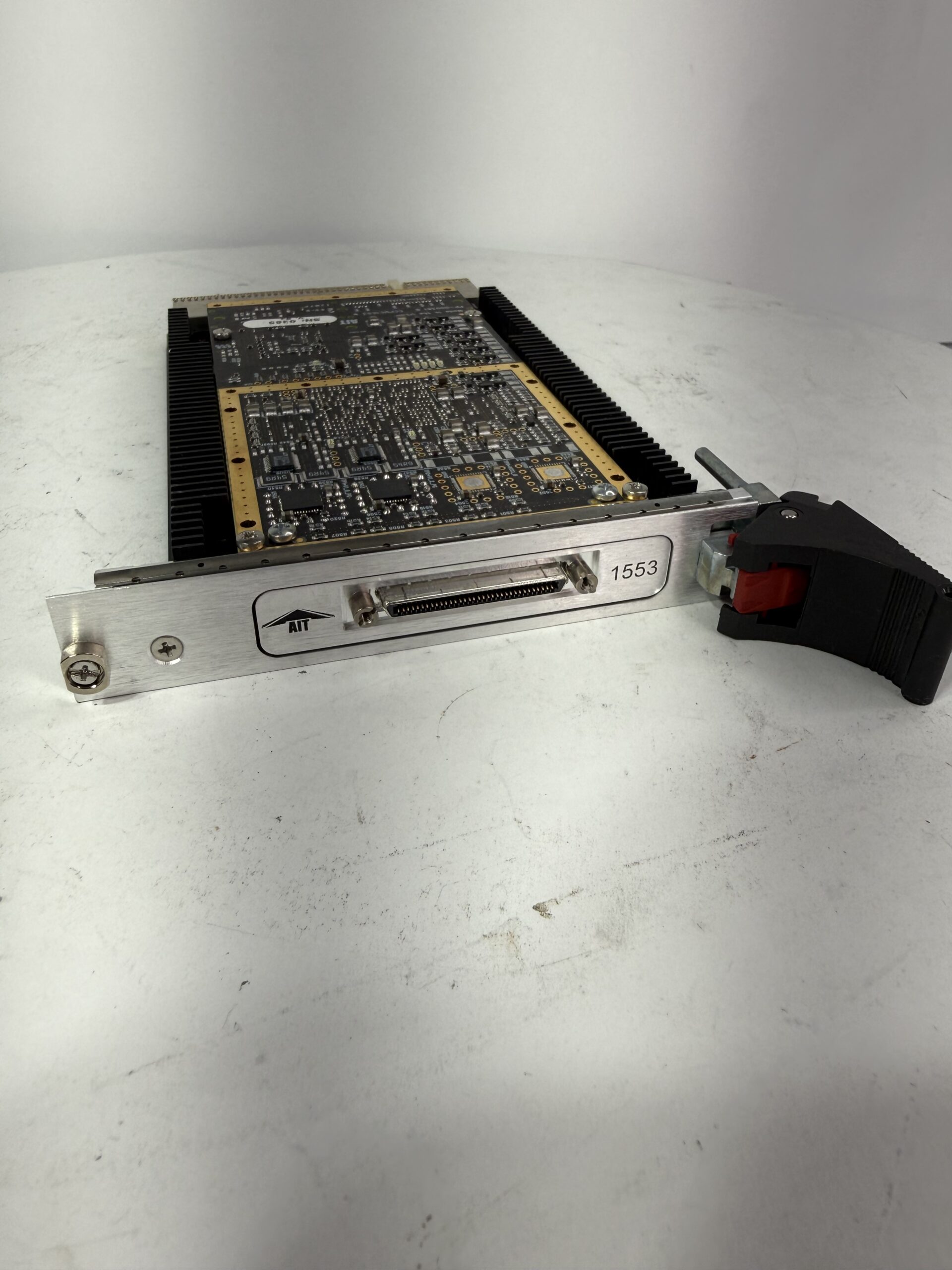

Avionics Interface Technologies 1553 board

Product Description

Avionics Interface Technologies MIL-STD-1553 Interface Board – Avionics Data Bus Component

A specialized MIL-STD-1553 interface board manufactured by Avionics Interface Technologies (AIT), designed for integration into aerospace and defense systems requiring robust, deterministic communication between avionic subsystems. This board implements the dual-redundant 1553 data bus protocol used extensively in military aircraft, spacecraft, and ground vehicles.

🔧 Key Specifications & Details:

• Manufacturer: Avionics Interface Technologies (AIT)

• Compliance: MIL-STD-1553B (likely)

• Function: Acts as a Bus Controller (BC), Remote Terminal (RT), or Bus Monitor (BM)

• Interface: Typically includes dual-redundant transformer-coupled 1553 channels

• Host Interface: Likely PCI, PCIe, CompactPCI, VME, or custom backplane

• Connectors: Military-grade D-sub or high-density multi-pin connectors

• Components: Includes 1553 protocol ICs (e.g., DDC BUS-61553, UTMC), transformers, and military-grade passives

• Operating Temperature: Designed for extended temp range (-55°C to +85°C typical)

🛠️ Potential Applications:

• Avionics System Repair: Replacement component for AIT-equipped aircraft or simulator systems

• Test & Simulation: Integration into 1553 bus test stands, iron bird rigs, or avionics development systems

• Legacy System Support: Maintenance of older military platforms using 1553 data buses

• R&D & Prototyping: Development of custom avionics interfaces or gateway modules

• Component Salvage: Source of high-reliability 1553 transformers, protocol chips, and military connectors
