Atlantic Positioning Systems SPS-2722 209100911 Servo Digital Controller

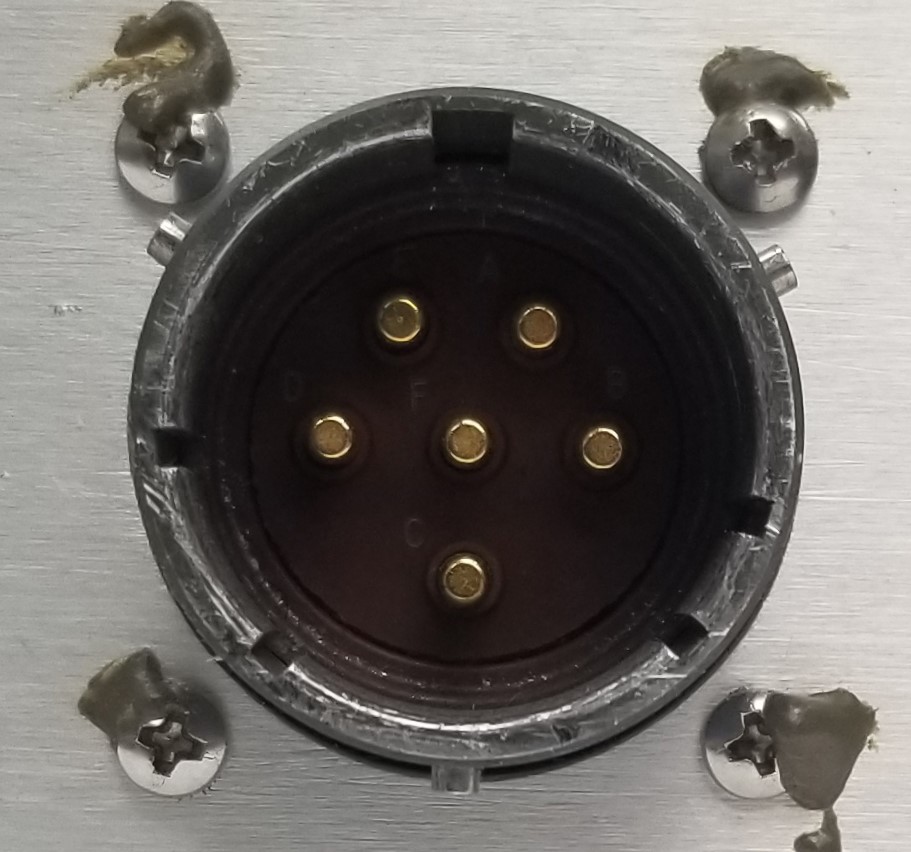

Atlantic Positioning Systems SPS-2722 209100911 Servo Digital Controller. Unit powers on. Test point voltages verified. No further testing possible. No manual, cables, power cord (military style – see gallery image) or other accessories. Purchaser responsible for any possible maintenance, calibration, alignment etc. and proper installation/use. As shown.

The Servo Digital Control Unit (SDC) is a microprocessor-based, servo controller,
providing both position and rate-loop control of the positioner. A firmware download
that modifies digital compensation filters allows the position and rate servo-loops
to be optimized for different payloads.
The SDC includes multiple RS-422/RS-232/RS-485 and Ethernet ports to
allow control of, and access to, the signals generated by sensors and monitoring
equipment associated with the payload. Cobham’s brushless, low-torque-ripple
motors and the Pulse-Width-Modulated (PWM) amplifiers within the SDC provide
rapid and precise control of the pedestal.
The SDC monitors servo faults and provides a number of safety features, which
include the ability to prevent remote operation of the positioner while maintenance
personnel are working on the unit.
The SDC is available for mounting in either a 19-inch EIA rack, a NEMA
weatherproof enclosure or it can be custom packaged. The SDC may be
commanded by an external computer system, joystick, or autotracker.

KEY FEATURES:
• Operation from 120 or 220 VAC, 1ϕor 3ϕ
and 28 VDC
• Brushless 3ϕ
,sinusoidally driven servo
amps, available in a variety of power
levels
• RT Linux operating system
• Tailored to a software interface
specification
• Uses high reliability components
including VICOR power supplies
• Provided with a variety of accessories – joystick, auto video trackers, VGA
monitors , recording media, time code
generators, video annotation and
stabilization components (gyros)

• Includes EMI/EMC suppression
• Programmable modes of operation
including BIT, playload control,
calibration and set up
• Interfaces with a wide variety of dad
pick-offs; resolver inductosyn, gryo’s,
optical encoders and resolvers
• MIL capable custom Servo Control
Board (MDC) for compact MIL
requirements
