Product Description
Asyst 12000-0341 Wafer Handling Robot – OEM P/N 785-10335-001

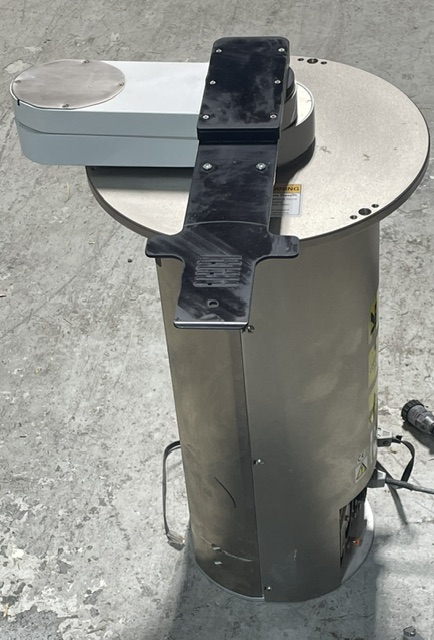

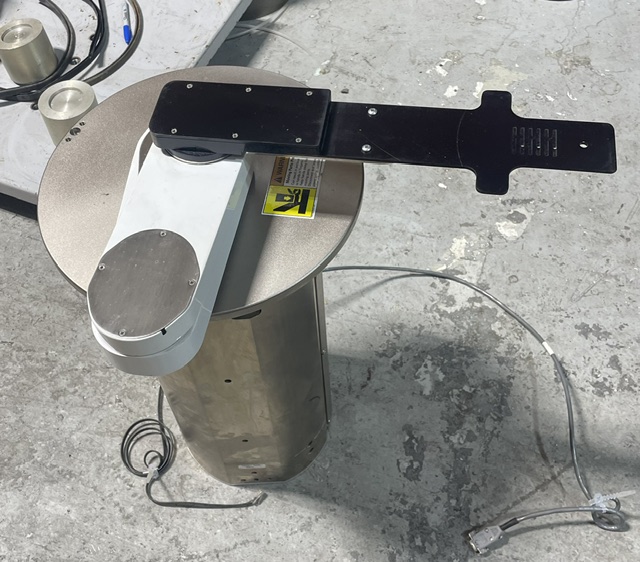

This used Asyst 12000-0341 is a wafer handling robot module, a critical component in a semiconductor wafer processing system. It is designed to automatically transfer semiconductor wafers between different process stations, load ports, and cassettes within an Equipment Front End Module (EFEM). This model is part of the 12000 series, which is designed to handle wafers up to 12 inches (300mm) in size.

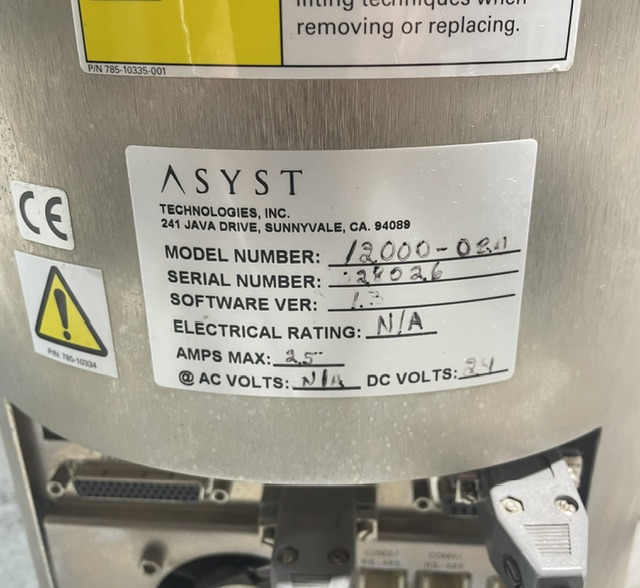

The unit is labeled with the OEM part number 785-10335-001 and operates on 24V DC with a maximum current of 25A . The warning sticker on the unit emphasizes its weight and the need for proper lifting techniques, indicating it is a heavy component.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Asyst Technologies, Inc. |
| Model Number | 12000-0341 |
| OEM Part Number | 785-10335-001 |
| Serial Number | 24036 |
| Software Version | 1.2 |
| Power | 24V DC, 25A max |
| Electrical Rating | N/A |
| Dimensions | Heavy (unknown weight) |
| Typical Application | Wafer handling/transfer |
| CE Marked | Yes |
| Condition | Used – Untested |
Applications
-
Semiconductor Manufacturing: Wafer transfer in fabs.
-
Equipment Front End Modules (EFEMs) : Integration into wafer handling systems.
-
Process Tools: Loading/unloading wafers from process chambers.
