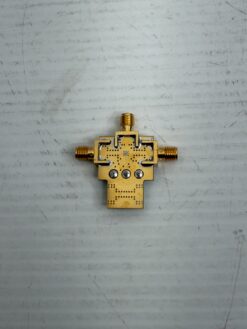

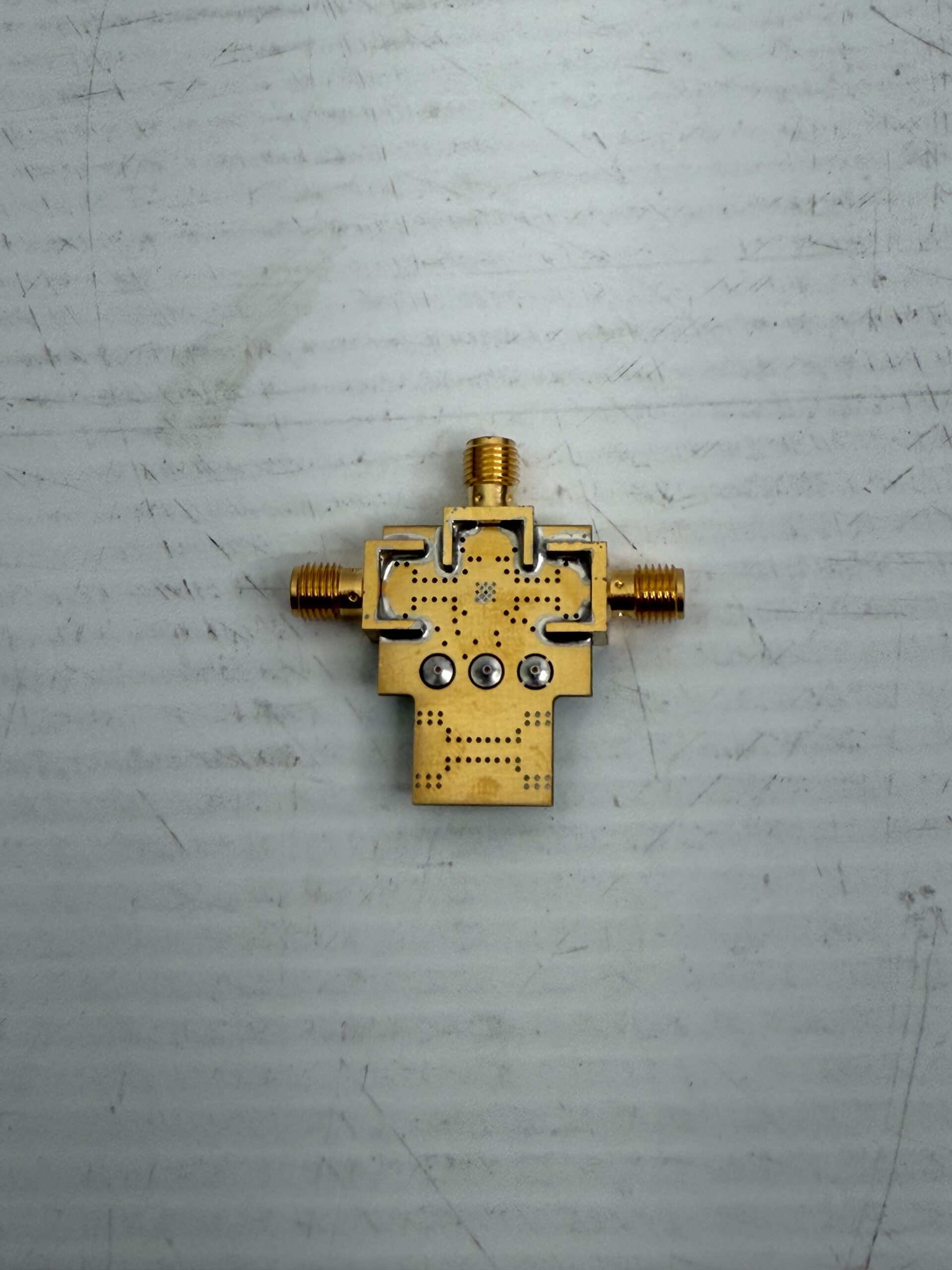

Analog Devices 107723-HMC232LP4 Evaluation Board is an RF development platform designed to evaluate the HMC232LP4 broadband SPDT non-reflective RF switch. It enables engineers to characterize switch performance for RF and microwave applications including wireless communications, radar systems, VSAT, test instrumentation, and telecommunications infrastructure. The board provides a convenient interface for laboratory testing without requiring a custom PCB.

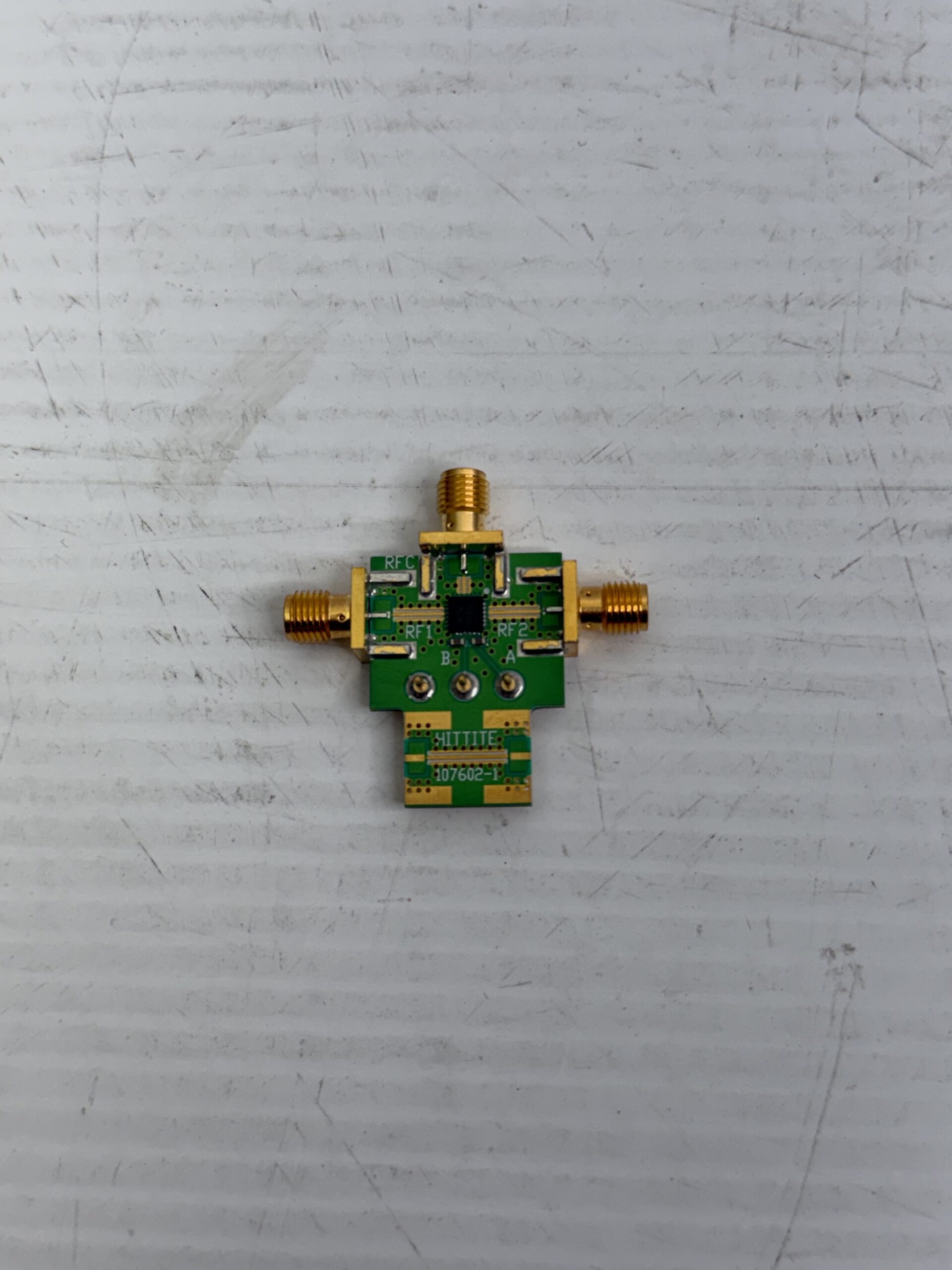

The evaluation board is populated with the HMC232LP4 GaAs MMIC SPDT switch and includes SMA RF connectors, DC control inputs, and a controlled-impedance RF layout using Rogers 4350 PCB material. The HMC232LP4 supports broadband operation from DC to 12 GHz, offering low insertion loss, high isolation, and fast switching performance, making it suitable for RF signal routing, receiver/transmitter switching, and automated test systems.

CONDITION: This unit is untested and sold as-is. Cosmetic wear may be present from previous use. SMA cables, power supplies, RF adapters, documentation, and original packaging are included only if shown in the listing photos.

Key Specifications
