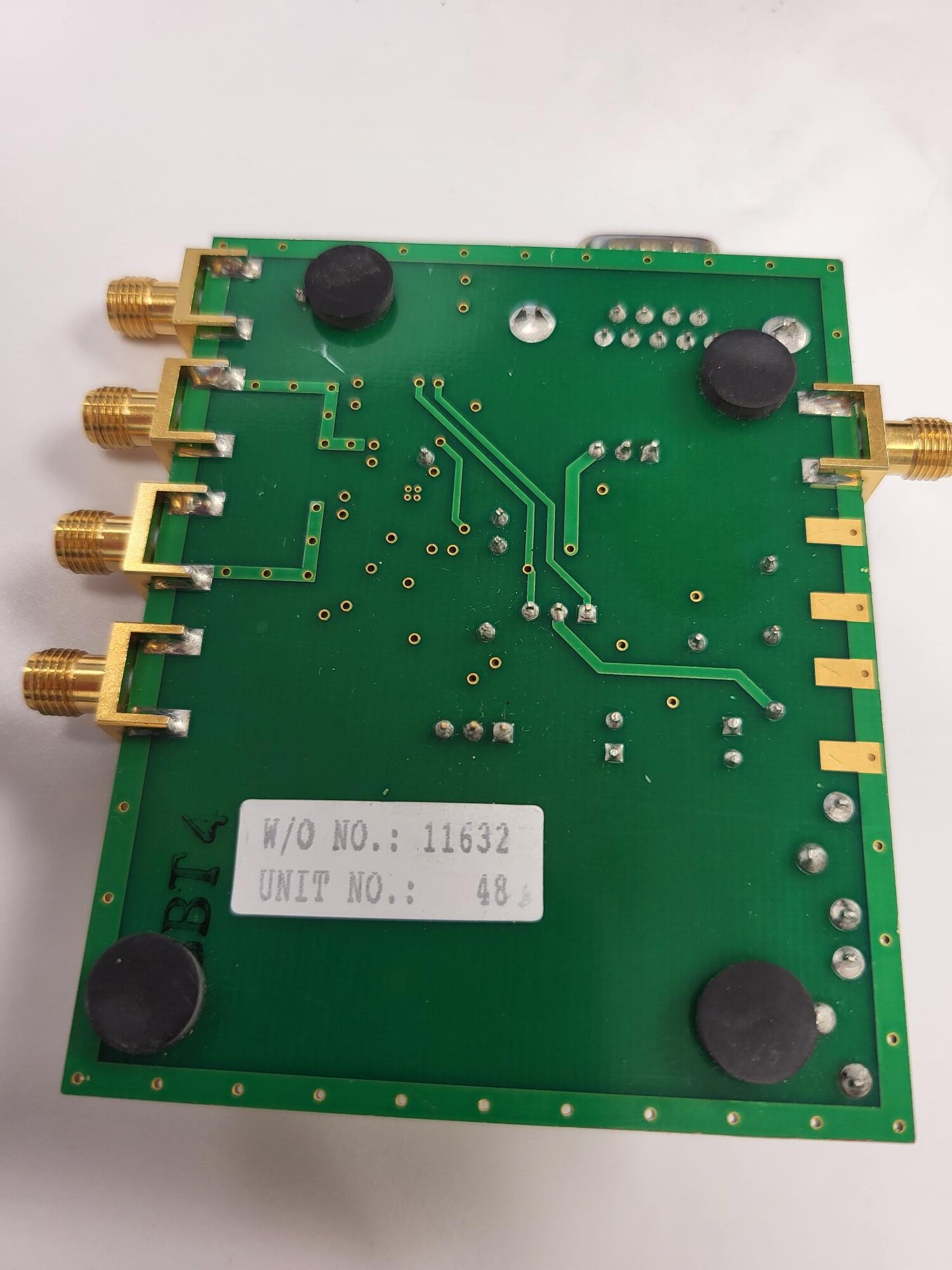

Analog Devices Eval Board ADF41083BZ1

This is a used item.  We are unable to test Circuit Boards.  Sold As Is

Analog Devices ADF41083BZ1 Evaluation Board – Precision PLL Frequency Synthesizer Testing

The ADF41083BZ1 Evaluation Board by Analog Devices provides a ready-to-use platform to evaluate the performance of the ADF41083 integer-N frequency synthesizer. Designed for engineers working on RF and wireless communication systems, this board simplifies the testing of PLL configurations for local oscillator (LO) generation and frequency synthesis applications.

Key Features:

• Designed for ADF41083 PLL: Supports integer-N PLL operation from 10 MHz to 6 GHz.

• USB Interface: Connects easily to a PC for configuration and control via Analog Devices’ software tools.

• Integrated RF Components: Includes loop filter and SMA connectors for seamless RF signal routing.

• Rapid Prototyping: Ideal for evaluating phase noise, lock time, and reference spurs in lab settings.

• Compact & Reliable: Professionally assembled board with high-quality RF layout practices.

Perfect for RF design validation, system prototyping, and academic research, the ADF41083BZ1 Eval Board accelerates PLL development with precision and reliability.
