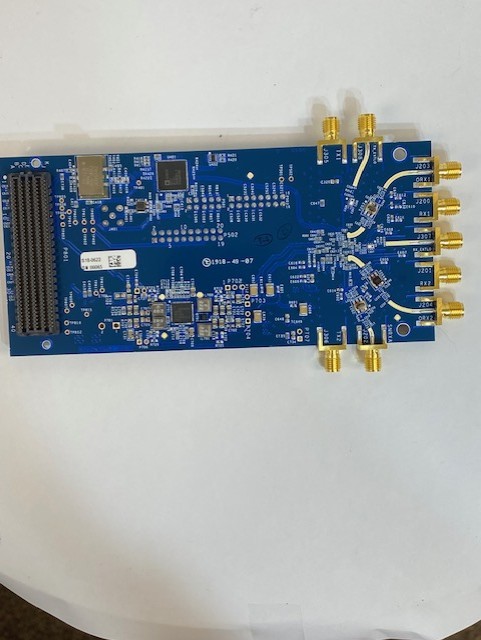

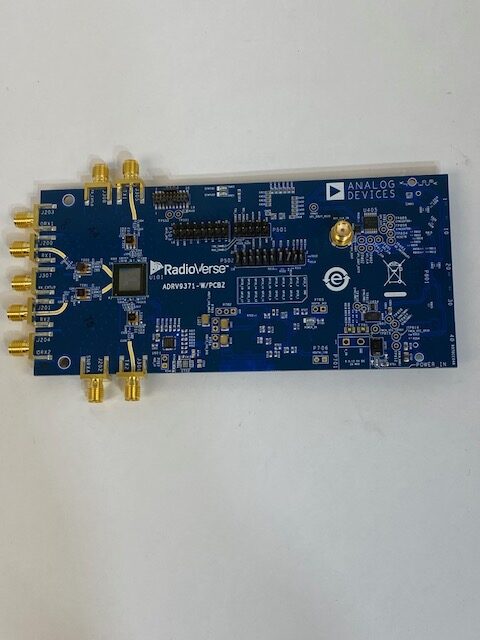

Analog Devices ADRV9371-W/PCBZ Evaluation Board

• The ADRV9371-W/PCBZ is a wide-tuning-range evaluation radio card featuring the AD9371 RF transceiver. It supports frequencies from 300 MHz to 6 GHz—ideal for broadband applications where flexibility across wide frequency bands is required.

• This board includes:

  • 2 transmit outputs

  • 2 receive inputs

  • 2 observation inputs

  • 1 sniffer (SnRx) path
    It comes with a complete power and clocking solution and connects via an FMC interface—commonly mated to a Xilinx ZC706 carrier board.

• It’s especially useful for:

  • Early system investigations

  • Prototyping waveforms

  • Software bring-up before custom hardware is finalized
    It’s not optimized for top-tier RF performance (like best EVM or noise figures), but excels at general evaluation purposes.

• The board is part of Analog Devices’ RadioVerse™ platform, which offers integrated support including schematics, HDL, drivers, GUIs, and software to accelerate prototyping.

This board appears unused however, we are unable to test and is being sold as is, final purchase.
