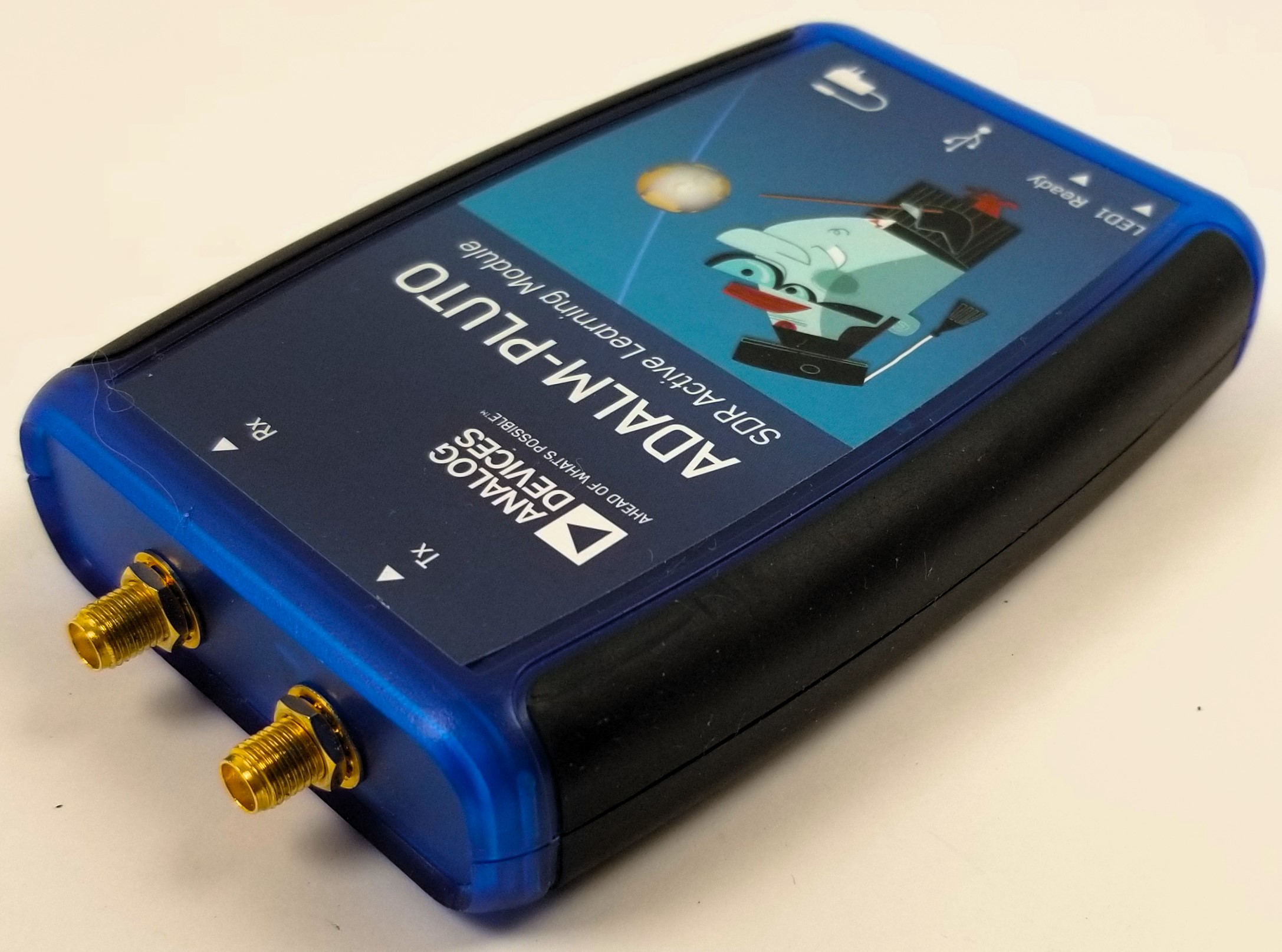

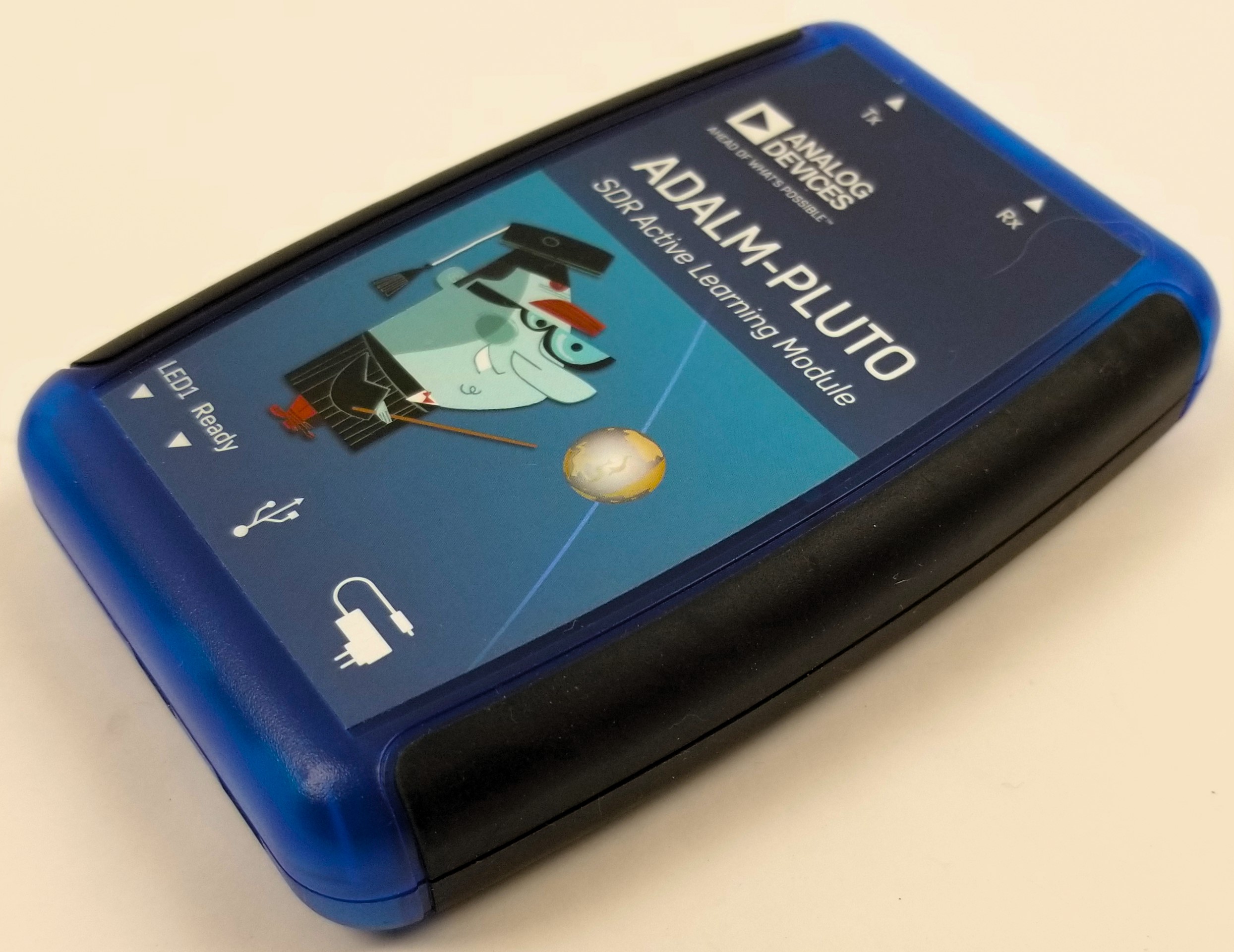

Analog Devices ADALM-PLUTO SDR Active Learning Module

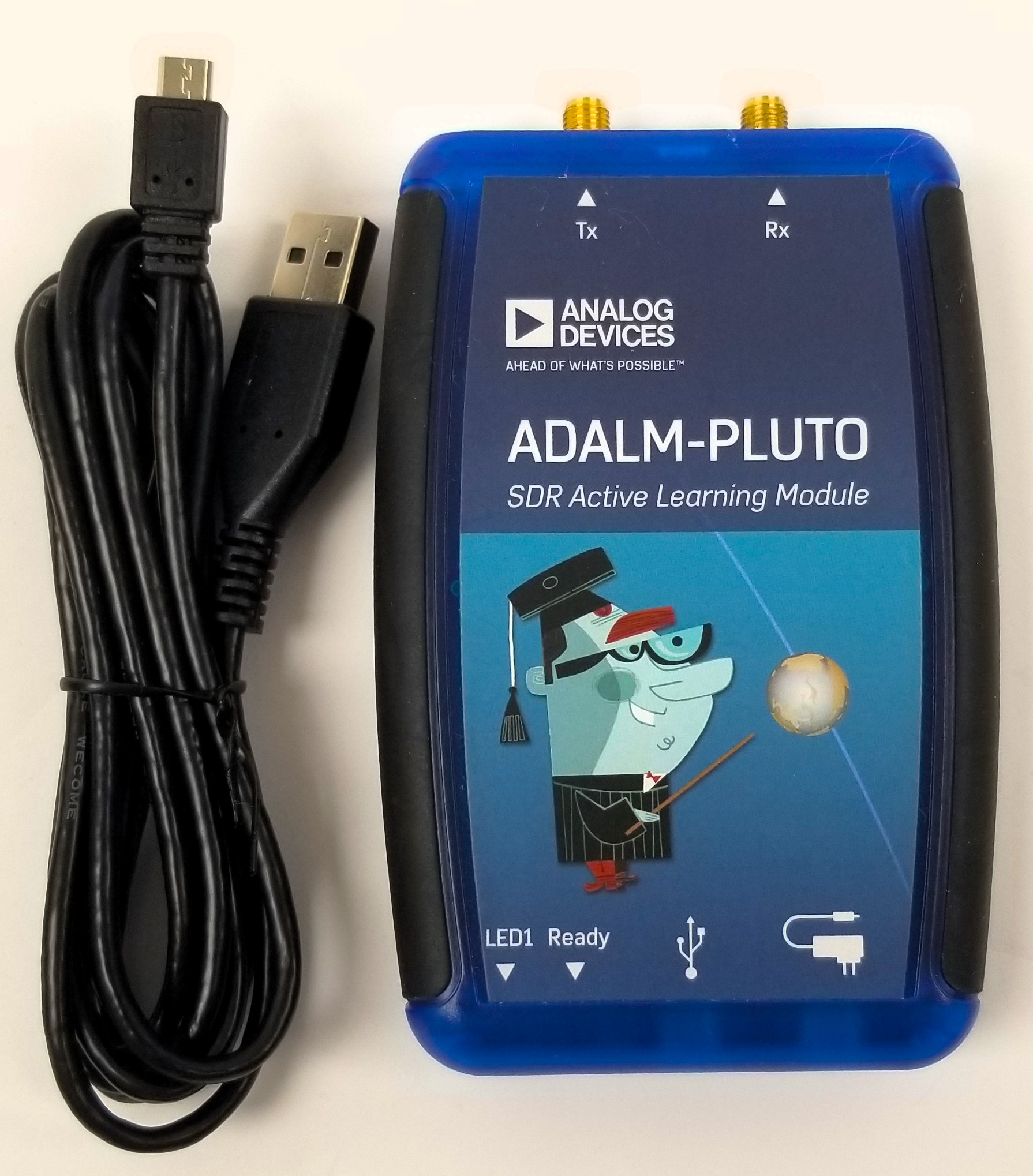

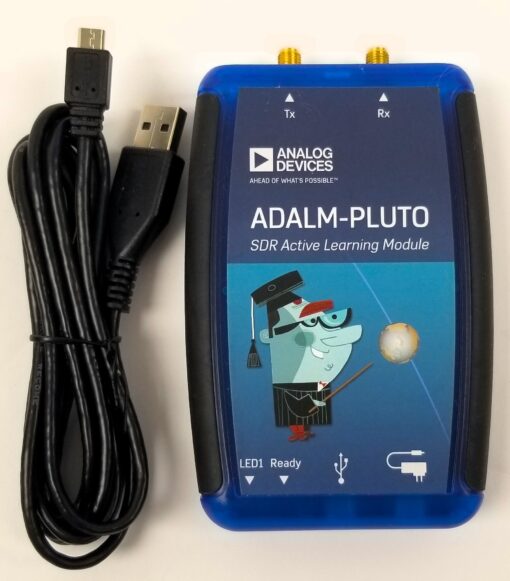

Analog Devices ADALM-PLUTO SDR Active Learning Module. Very good condition. With micro-USB interface cable. No manual or antennas. Purchaser responsible for any updates and proper, legal use. *This transceiver may be illegal to possess and use in certain countries – If this may apply, check with your customs regulations before ordering. BMI Surplus will not be responsible for item refusal/return or confiscation.

• Portable self-contained RF learning module
• Cost-effective experimentation platform
• Based on Analog Devices AD9363–Highly Integrated RF Agile Transceiver and Xilinx^® Zynq Z-7010 FPGA
• RF coverage from 325 MHz to 3.8 GHz
• Up to 20 MHz of instantaneous bandwidth
• Flexible rate, 12-bit ADC and DAC
• One transmitter and one receiver, half or full duplex
• MATLAB^®, Simulink^® support
• GNU Radio sink and source blocks
• libiio, a C, C++, C#, and Python API
• USB 2.0 Powered Interface with Micro-USB 2.0 connector
• High quality plastic enclosure
