Analog Devices AD8314 Evaluation Board

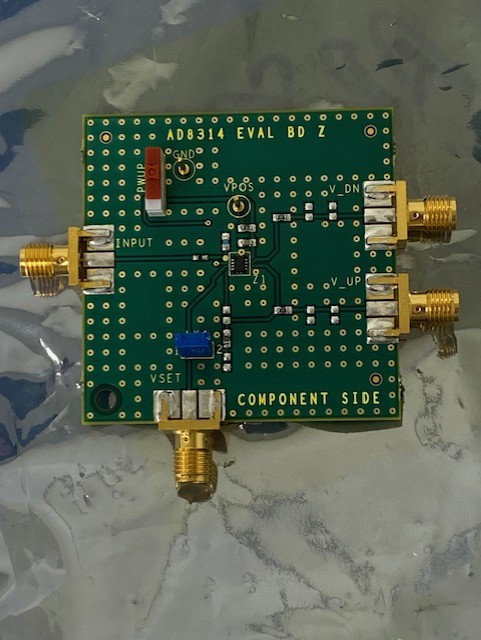

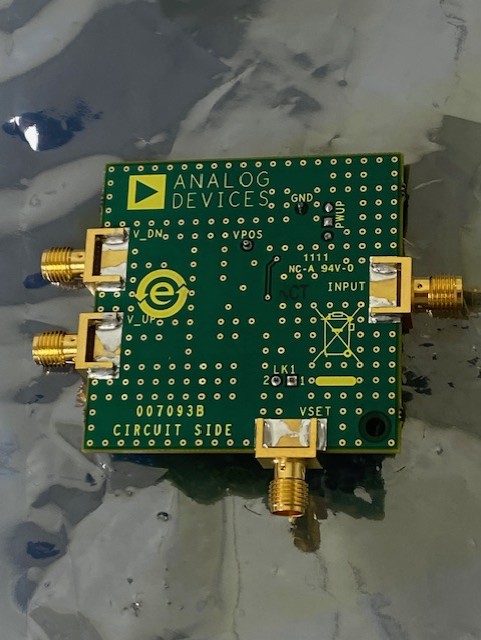

The AD8314 Evaluation Board, also known as EVAL-AD8314 or AD8314ACP-EVAL, is a fully assembled 4-layer FR4 circuit board designed to evaluate the RF detector/controller IC, AD8314. It supports normal operation using a single power supply between 2.7 V and 5 V, drawing approximately 10 mA. Power is input via the VPOS and GND pins.

Key signal interfaces are:

• RF input through an edge-mounted SMA connector labeled INPUT

• Setpoint input (VSET) via another SMA connector

• Detector outputs (V_UP and V_DN) accessible via SMA connectors

• The operating mode (measurement or controller) is selectable using a jumper labeled LK1

***Board appears new, however, we do not honor returns on circuit boards since we cannot test them.
