Amphenol MS3472W14-19P-LC Wall Receptacle
$50.00

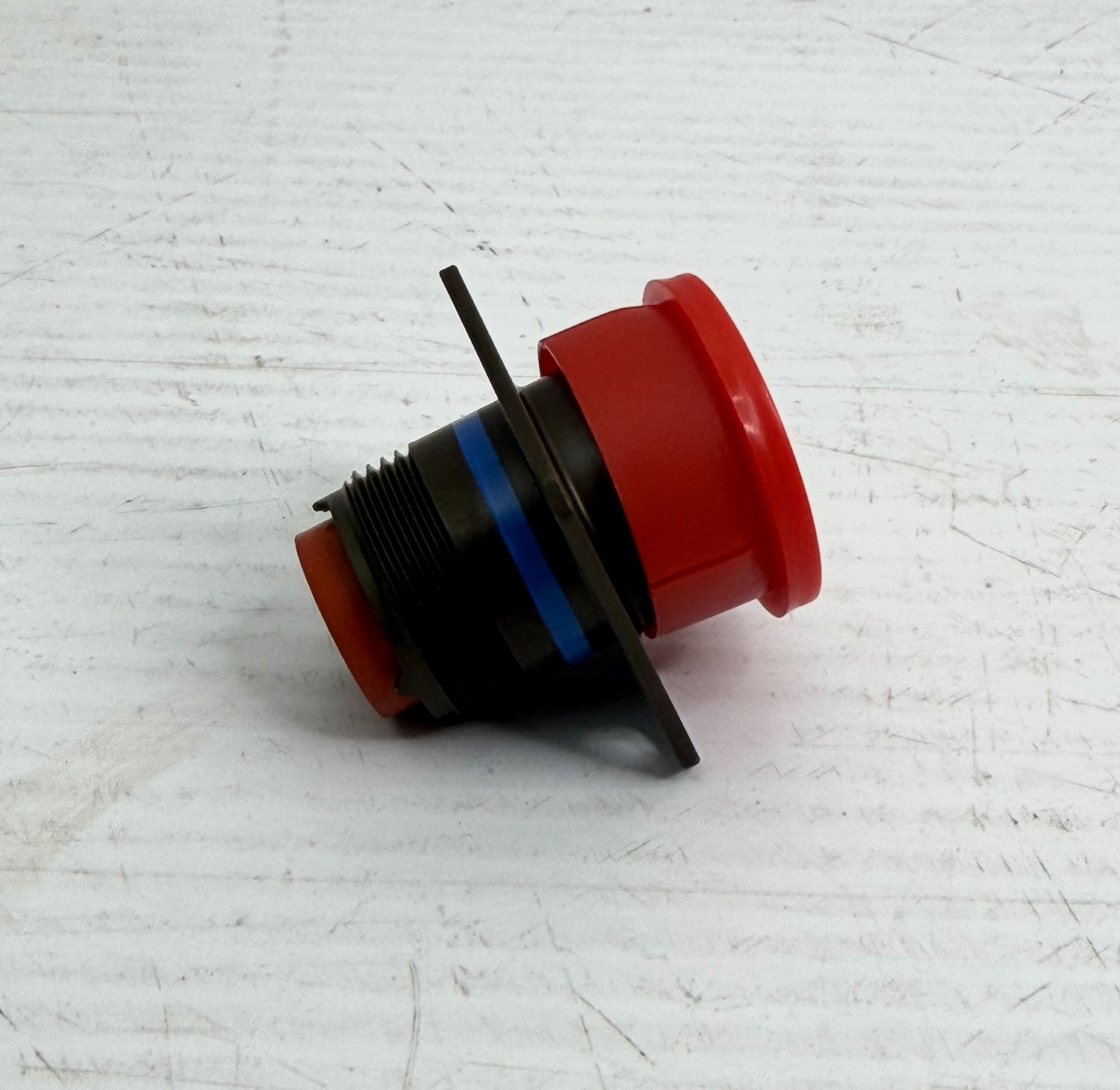

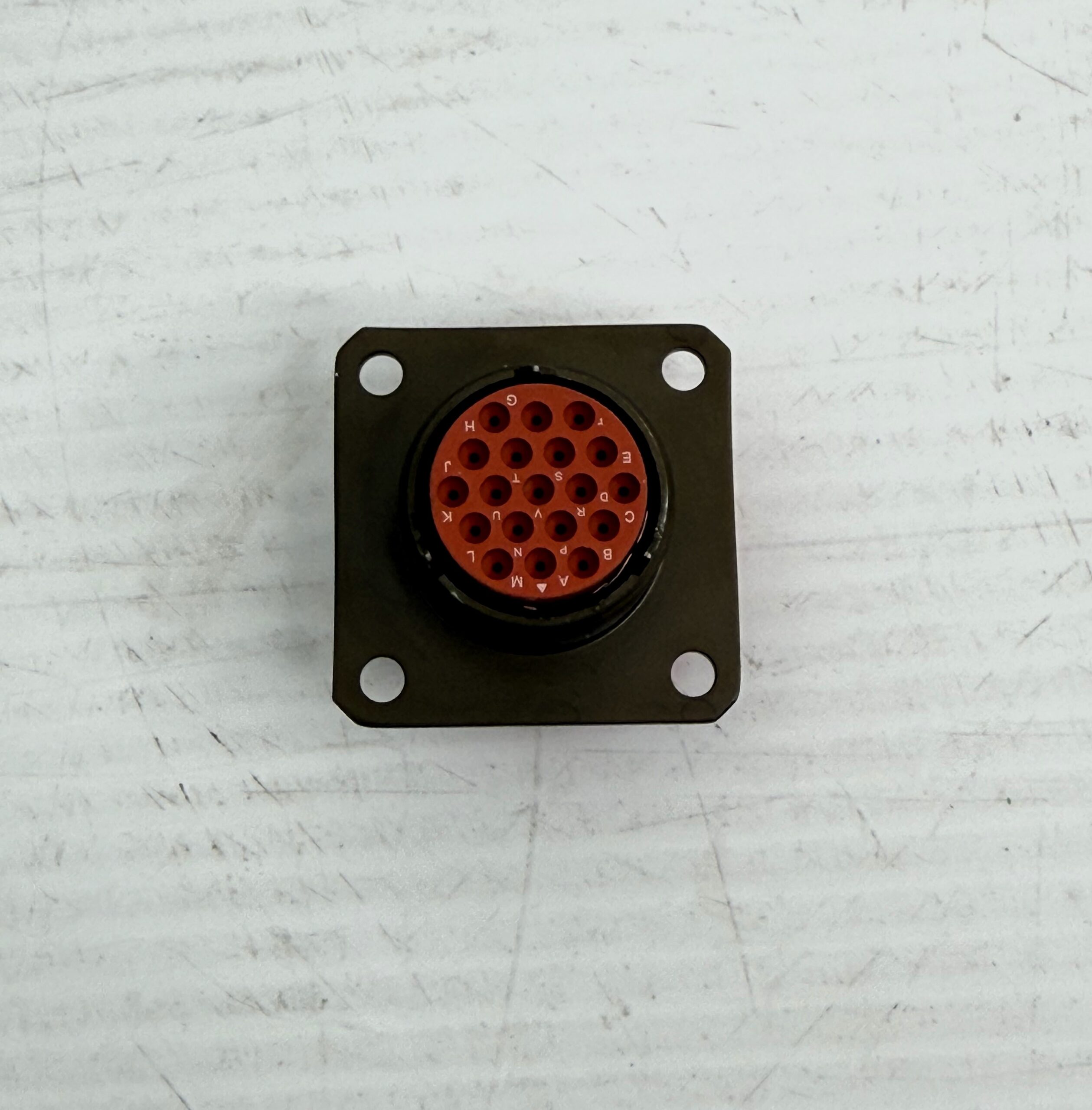

Amphenol MS3472W14-19P 19-position MIL-spec circular receptacle.
1 in stock
CompareAmphenol Aerospace MS3472W14-19P MIL-DTL-26482 Series II Wall Mount Receptacle is a rugged military-grade circular connector designed for aerospace, defense, industrial automation, and harsh-environment electrical interconnect applications. Manufactured to the MIL-DTL-26482 Series II specification, it provides reliable power and signal connections in environments exposed to vibration, moisture, dust, and temperature extremes.
CONDITION: This unit is untested and sold as-is. Cosmetic wear may be present from previous use. Crimp contacts, backshell, mounting hardware, protective caps, and original packaging are included only if shown in the listing photos.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Amphenol Aerospace |
| Part Number | MS3472W14-19P |
| Product Type | Circular Wall Mount Receptacle |
| Military Specification | MIL-DTL-26482 Series II |
| Connector Style | Wall Mount Receptacle |
| Contact Gender | Pin (Male) |
| Number of Positions | 19 |
| Shell Size / Insert | 14-19 |
| Contact Size | Size 20 Crimp |
| Coupling Style | Bayonet Lock |
| Mounting | Flange Panel Mount |
| Shell Material | Aluminum |
| Shell Finish | Olive Drab Cadmium over Nickel |
| Contact Finish | Gold |
| Operating Temperature | -65°C to +200°C |
| Applications | Aerospace, Military, Industrial, Defense |
| Weight | 1 lbs |
|---|---|
| Dimensions | 9 × 7 × 1 in |
