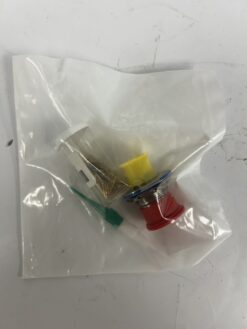

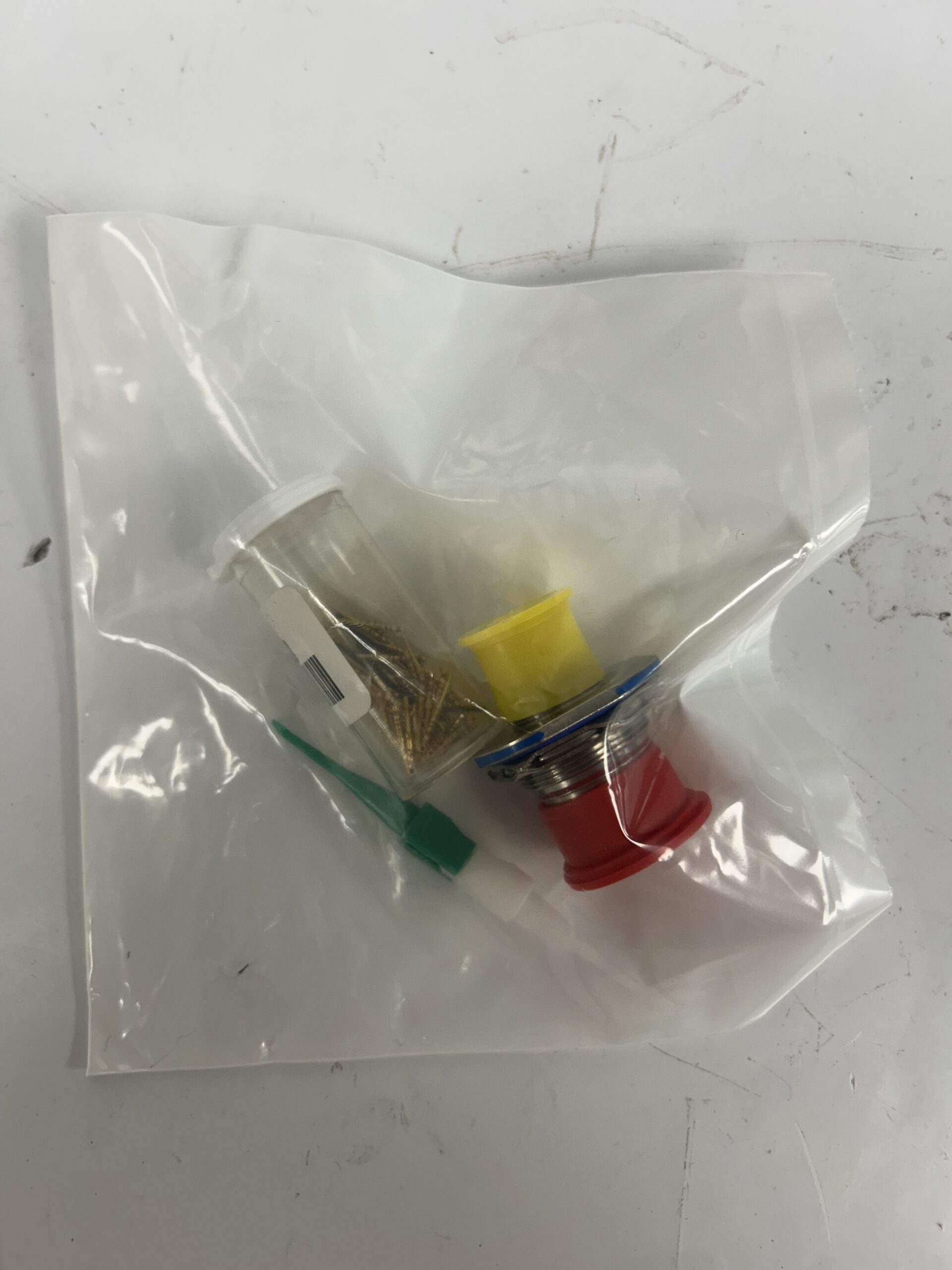

Amphenol D38999/24FC35PN Circular Connector

The Amphenol D38999/24FC35PN is a high-quality, rugged circular connector that meets the stringent requirements of aerospace, military, and industrial applications. Known for its robust design and reliable performance, this connector is engineered to deliver superior durability in harsh environments, making it a top choice for mission-critical systems. The D38999/24FC35PN is engineered to provide secure, long-lasting electrical connections, even in extreme conditions where failure is not an option.

Key Specifications:

• Part Number: Amphenol D38999/24FC35PN
• Manufacturer: Amphenol Aerospace
• Connector Type: Circular, Bayonet Coupling, High-Performance
• Shell Size: 24
• Contact Type: Pin
• Mounting Type: Panel Mount
• Termination Type: Solder
• Material: Aluminum shell with a corrosion-resistant finish
• Voltage Rating: Typically 500V
• Current Rating: 7.5 Amps per contact
• Environmental Protection: MIL-DTL-38999 Series III, sealed for harsh environments
• Temperature Range: -55°C to +125°C
• Plating: Gold-plated contacts for superior electrical conductivity and corrosion resistance
• Keying: Multiple key positions to prevent incorrect mating
• Contact Count: 35 contacts

Features and Benefits:

1. Rugged Construction:
   • The D38999/24FC35PN features a durable aluminum shell with an environmentally resistant finish, designed to endure extreme conditions. This construction ensures optimal performance even in the harshest aerospace and military environments.
2. Gold-Plated Contacts:
   • Equipped with gold-plated contacts, the connector ensures excellent electrical conductivity, corrosion resistance, and reliability over time. The gold plating minimizes the risks of signal degradation and ensures consistent performance.
3. Environmental Sealing:
   • This connector complies with MIL-DTL-38999 Series III standards, offering robust protection against moisture, dust, and vibrations. Its sealed design is ideal for environments where environmental conditions can significantly impact system reliability.
4. Bayonet Coupling System:
   • The D38999/24FC35PN is designed with a bayonet coupling mechanism that provides a secure, easy-to-mate connection. This coupling system ensures that the connector remains firmly locked even under extreme conditions, reducing the risk of accidental disconnections.
5. Versatile Applications:
   • The D38999/24FC35PN is used in a wide range of applications where a reliable, high-performance electrical connection is needed, including aerospace systems, military communication systems, and industrial control systems.

Applications:

1. Aerospace Systems:
   • Commonly used in avionics, aircraft communication systems, radar systems, and satellite communication systems. The D38999/24FC35PN is ideal for systems that require secure and reliable electrical connections in high-performance environments.
2. Military and Defense Equipment:
   • The connector is also widely used in military systems, including weapons systems, tactical communications, and unmanned aerial vehicles (UAVs). It provides reliable connectivity in extreme conditions like vibration, shock, and high humidity.
3. Industrial and Robotic Systems:
   • The D38999/24FC35PN is used in industrial automation, robotics, and machinery control systems. Its environmental sealing and durable construction make it suitable for industrial settings, including factory floors and robotic operations.
4. Ground Support Equipment:
   • Ideal for use in ground support systems for both military and commercial aerospace operations, the D38999/24FC35PN ensures reliable connections for various systems in aerospace ground operations.

Conclusion:

The Amphenol D38999/24FC35PN is a rugged, high-performance circular connector that provides reliable electrical connections for aerospace, military, and industrial applications. With its durable construction, gold-plated contacts, and sealed design, this connector ensures secure, long-lasting connections even in extreme environments. Whether used in avionics, defense equipment, or industrial systems, the D38999/24FC35PN offers superior performance and reliability.
