Overview & Specifications
-

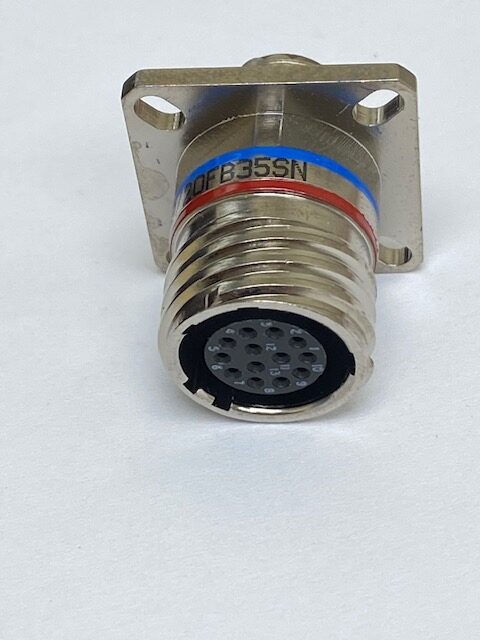

Designation: D38999/20FB35SN
-
MIL-DTL-38999 Series III circular connector
-
Wall-mount female receptacle – 13 positions.
-
-
Shell & Insert:
-
Shell size: 11 (arrangement B35).
-
Insert arrangement: 11-35 (13 contacts).
-
-
Mounting & Coupling:
-
Wall-mount flange style with threaded coupling (Tri-Start quick coupling).
-
-
Materials & Finishes:
-
Shell material: Aluminum alloy, electroless nickel plated.
-
-
Operating Conditions:
-
Temperature range: –65 °C to +200 °C.
-
Insulation resistance: ≥ 5000 MΩ (at 500 V DC).
-
Durable up to ~500 mating cycles.
-
IP67 rated, offering high moisture and corrosion resistance, and 48-hour salt-spray resistance.
-
-
Performance & Applications:
-
Meets stringent EMI shield standards (≥ 65 dB at 10 GHz).
-
Designed for rugged, harsh environments: military, aerospace, industrial, marine, and space applications.
-
