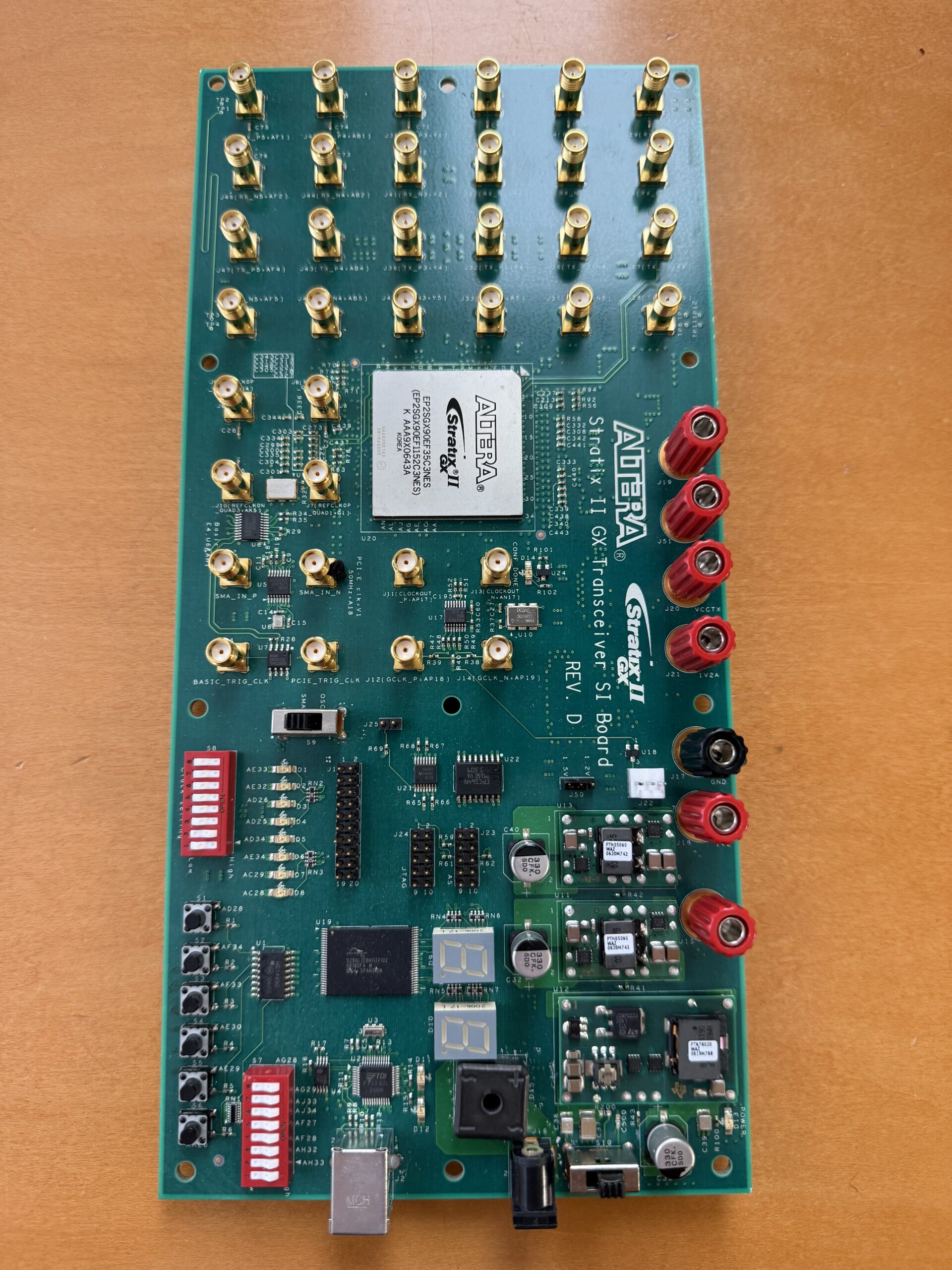

Altera Stratix II GX Transceiver Signal Integrity (SI) Test/Development Board

A specialized high-speed transceiver validation and signal integrity (SI) test board designed by Altera (now Intel FPGA) for characterizing and developing with the Stratix II GX FPGA family. This board enables engineers to test SERDES performance, channel compliance, and high-speed I/O under real-world conditions.

🔧 Key Specifications & Features:

• FPGA: Altera Stratix II GX device (specific variant varies)

• Primary Use: Signal Integrity (SI) testing & transceiver validation for high-speed serial protocols (PCIe, Gigabit Ethernet, XAUI, etc.)

• Transceiver Count: Multiple high-speed serial transceiver channels (3.125+ Gbps capable)

• Interfaces: SMA, SFP, or other high-frequency connectors for direct signal injection/measurement

• Clock Management: Precision clock sources, jitter attenuators, and reference clock inputs

• Test Points & Probes: Extensive probing points for eye diagram, jitter, and BER measurements

• Compliance Testing: Aids in pre-compliance for standards like PCI Express, Serial RapidIO, and SONET/SDH

• Power: Dedicated regulators and filtering for clean transceiver power domains

🛠️ Potential Applications:

• FPGA/SERDES Validation: Characterizing transceiver performance, margin testing, and signal integrity analysis

• High-Speed Digital Design: Prototyping and testing custom serial link implementations

• Compliance Testing: Pre-compliance validation for high-speed communication standards

• Research & Education: Studying jitter, channel loss, and equalization techniques in academic or R&D settings

• Component Salvage: Source of high-quality SMA/SFP connectors, precision oscillators, and FPGA power circuitry
