Altera 6XX-10063 development board

Product Description

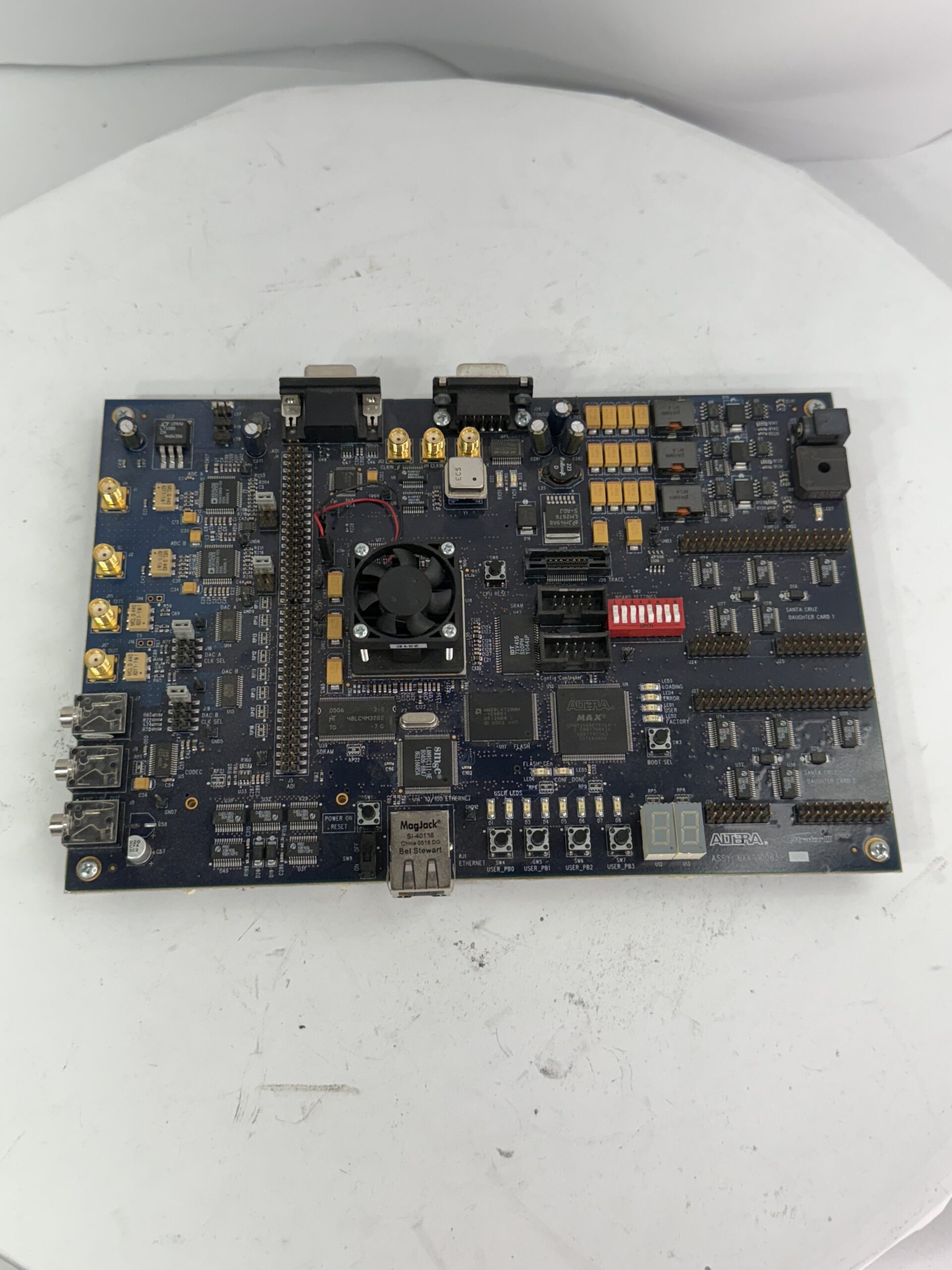

Altera 6XX-10063 FPGA/CPLD Development/Prototype Board

This is an Altera development or prototype board, identified by part number 6XX-10063. Designed for programming, testing, and developing with Altera (now Intel) FPGAs or CPLDs, this board is sold AS IS for engineering evaluation, parts salvage, or educational use.

Likely Features (Based on Altera Boards):

• Core Device: Likely contains an Altera FPGA (e.g., MAX, Cyclone, Stratix series) or CPLD

• Programming Interface: JTAG header for configuration via Altera Quartus tools

• I/O: Headers, switches, LEDs, and possibly a display for prototyping

• Memory: May include SRAM, Flash, or SDRAM for embedded projects

• Power: Onboard regulation for device core and I/O voltages

Condition:

⚠ SOLD AS IS – AS POSTED ON OUR POLICIES PAGE
⚠ UNTESTED – PULLED FROM LAB / DEVELOPMENT ENVIRONMENT
⚠ MAY BE INCOMPLETE – Verify components (e.g., FPGA, memory) against photos

Potential Uses:

• Component Salvage: Source for Altera FPGA/CPLD, oscillators, memory, and connectors

• Digital Design Education: For university labs teaching FPGA development or digital logic

• Repair Donor: Board for harvesting parts to repair an identical working unit

• Prototyping Base: For engineers willing to reverse-engineer and repurpose the board

Important Notes:

• Functionality Not Guaranteed: Assume non-working until fully tested with appropriate tools.
