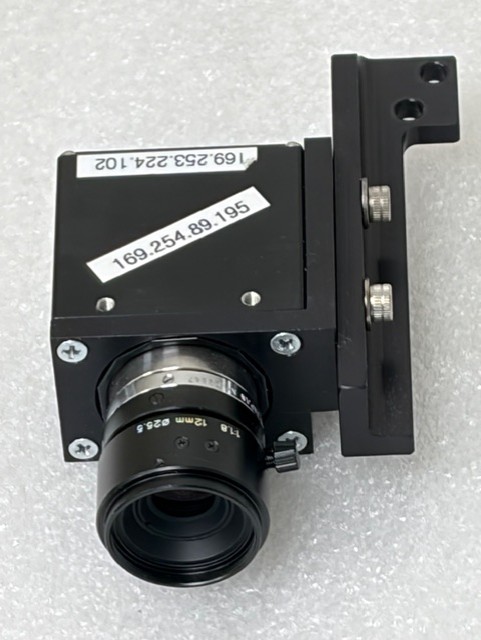

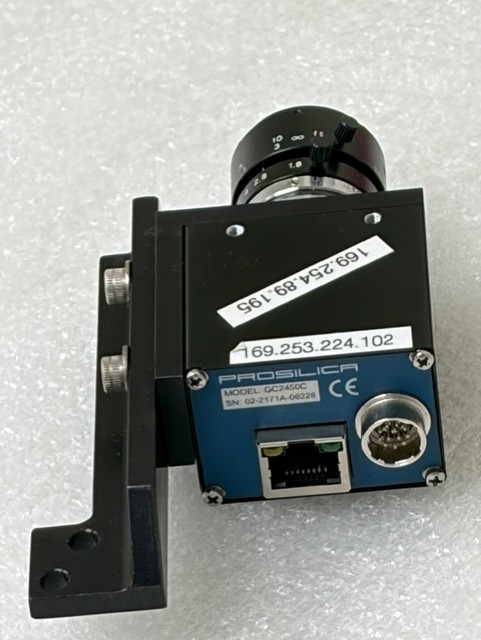

Allied Vision Prosilica GC2450C High Resolution Industrial Machine Vision Camera

Key Specifications

• Sensor: Sony ICX625AQA CCD
• Resolution: 2448 × 2050 (5 Megapixel)
• Frame Rate: 15 fps at full resolution
• Sensor Format: 2/3″
• Pixel Size: 3.45 µm × 3.45 µm
• Shutter: Global shutter (progressive scan)
• Interface: Gigabit Ethernet (GigE Vision compliant)
• Lens Mount: C-Mount
• Bit Depth: 8-bit / 12-bit
• Color Formats: BayerRG8/12, RGB8, YUV formats
• Exposure Control: 10 µs to 48 s
• Power Consumption: ~3.8 W @ 12 VDC
• Weight: ~106 g

Features

• Compact industrial housing
• Long cable support up to 100 meters via Cat5e
• External trigger and synchronization I/O
• ROI (Area of Interest) readout
• Low-noise CCD imaging
• Suitable for machine vision and inspection systems

Common Applications

• Industrial inspection
• LCD and electronics inspection
• Metrology and measurement
• Traffic imaging / ITS
• Robotics vision systems
• Scientific and laboratory imaging
