Agilent Varian IMG-100 vacuum gauge

Product Description

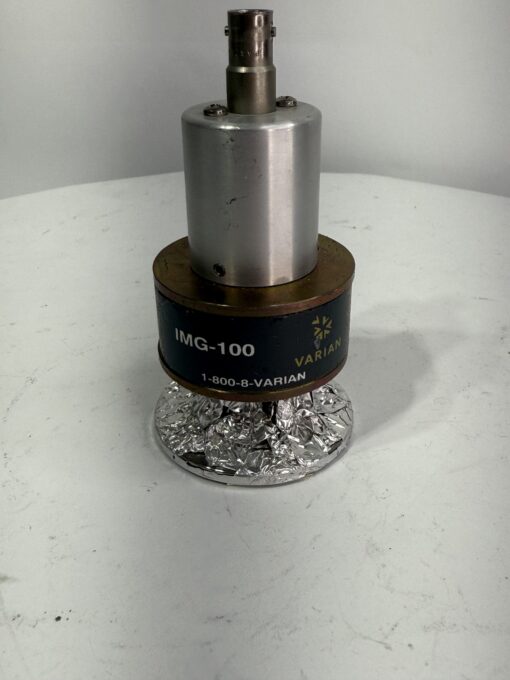

Agilent Varian IMG-100 Inverted Magnetron High-Vacuum Gauge (AS IS)

This inverted magnetron gauge is designed for precise high and ultra-high vacuum pressure measurement, providing reliable performance in demanding research, industrial, and semiconductor applications.

Key Specifications:

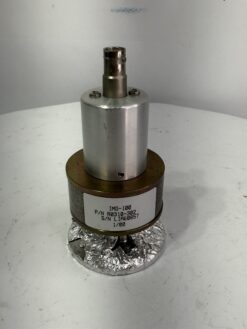

• Model: IMG-100 (Part # R0310-302)

• Type: Inverted Magnetron Gauge (IMG)

• Pressure Range: ~10⁻³ to 10⁻¹¹ Torr (typical)

• Connector: Electrical connector for controller

• Mounting: Standard vacuum flange (verify type/size)

• Compatibility: Requires compatible controller/power supply

Applications:

• Ultra-high vacuum (UHV) system monitoring

• Semiconductor process tools

• Research and analytical instrumentation

• Particle accelerator and synchrotron systems
