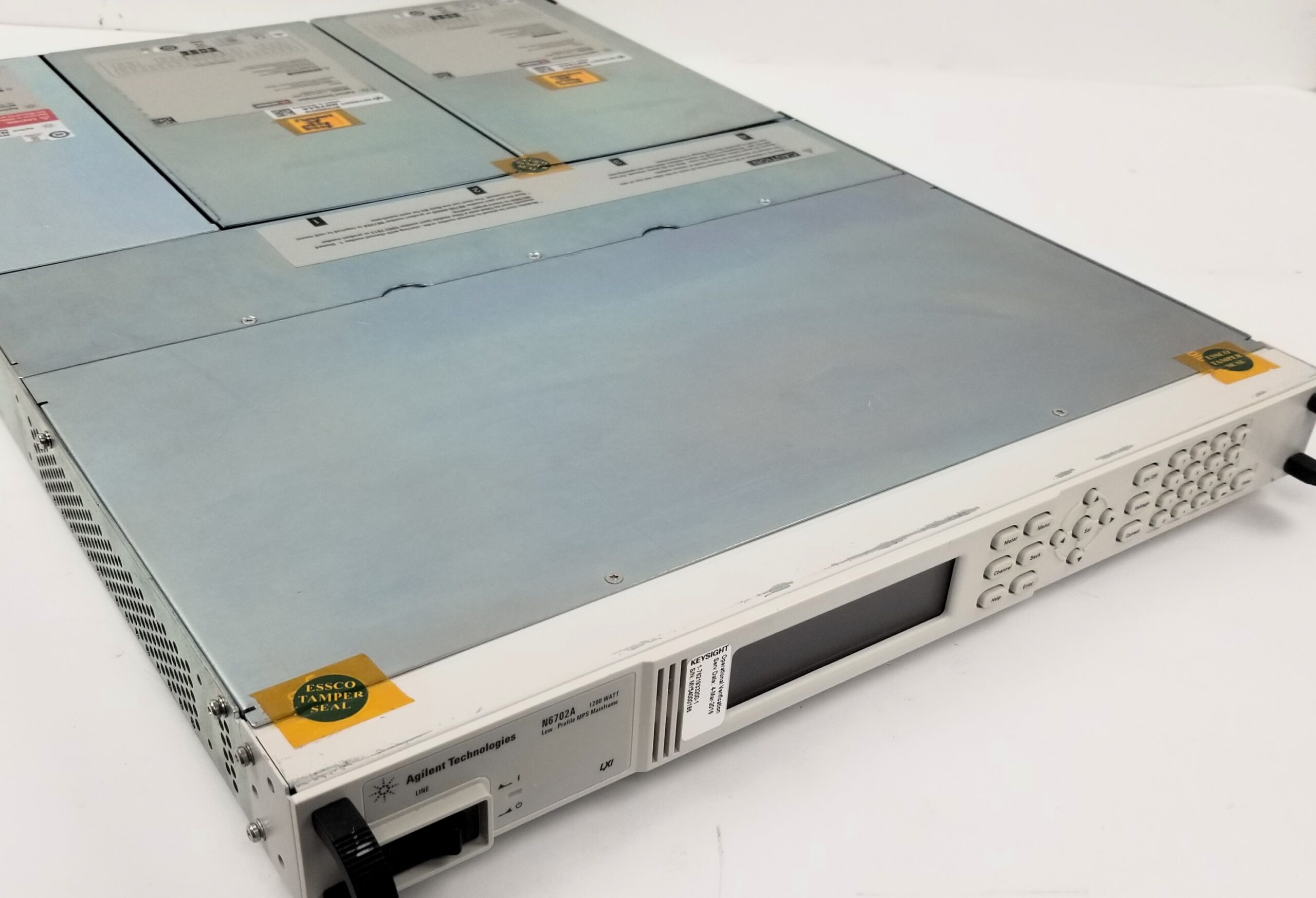

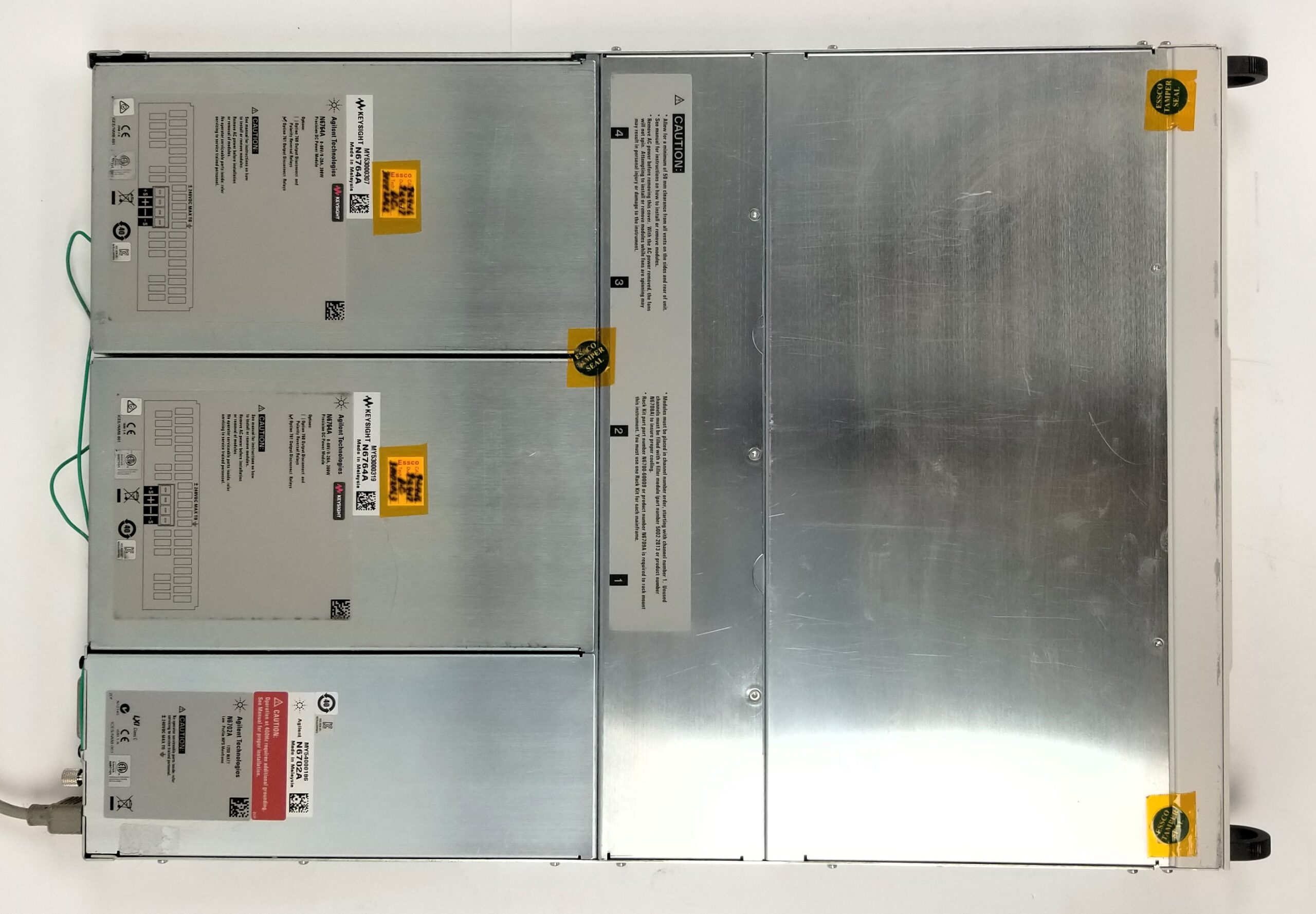

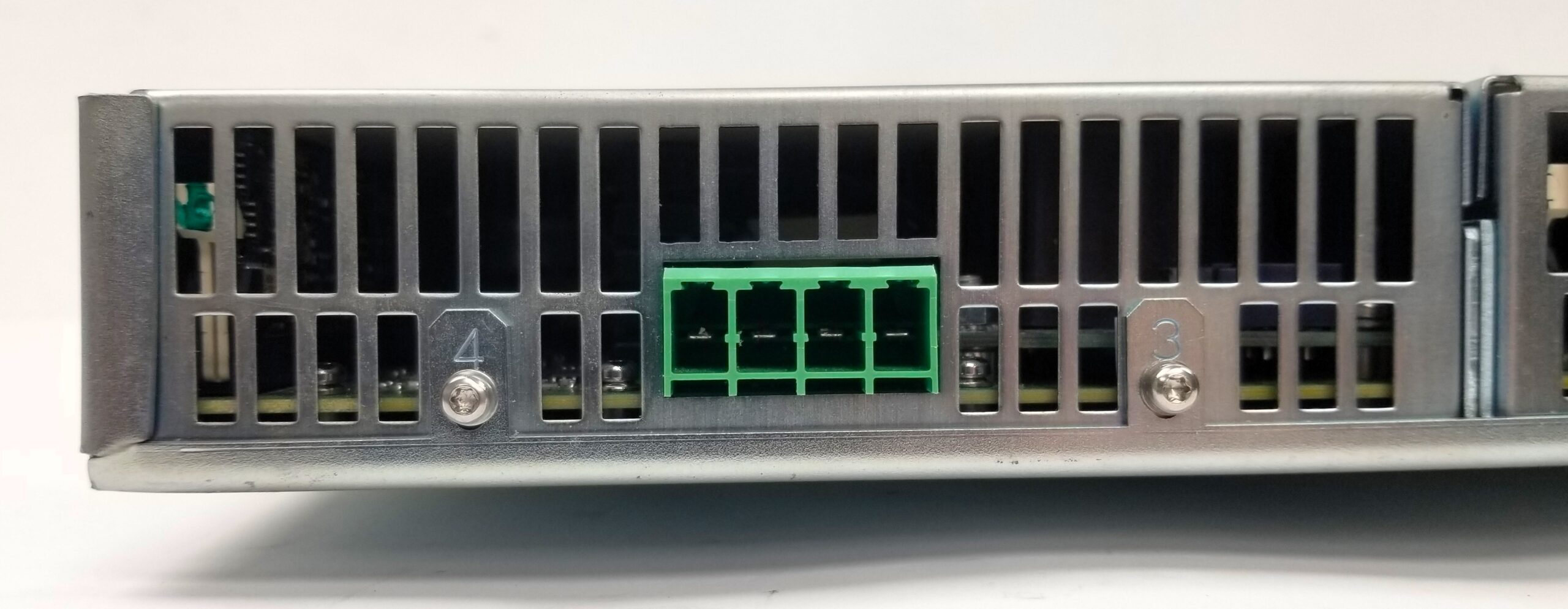

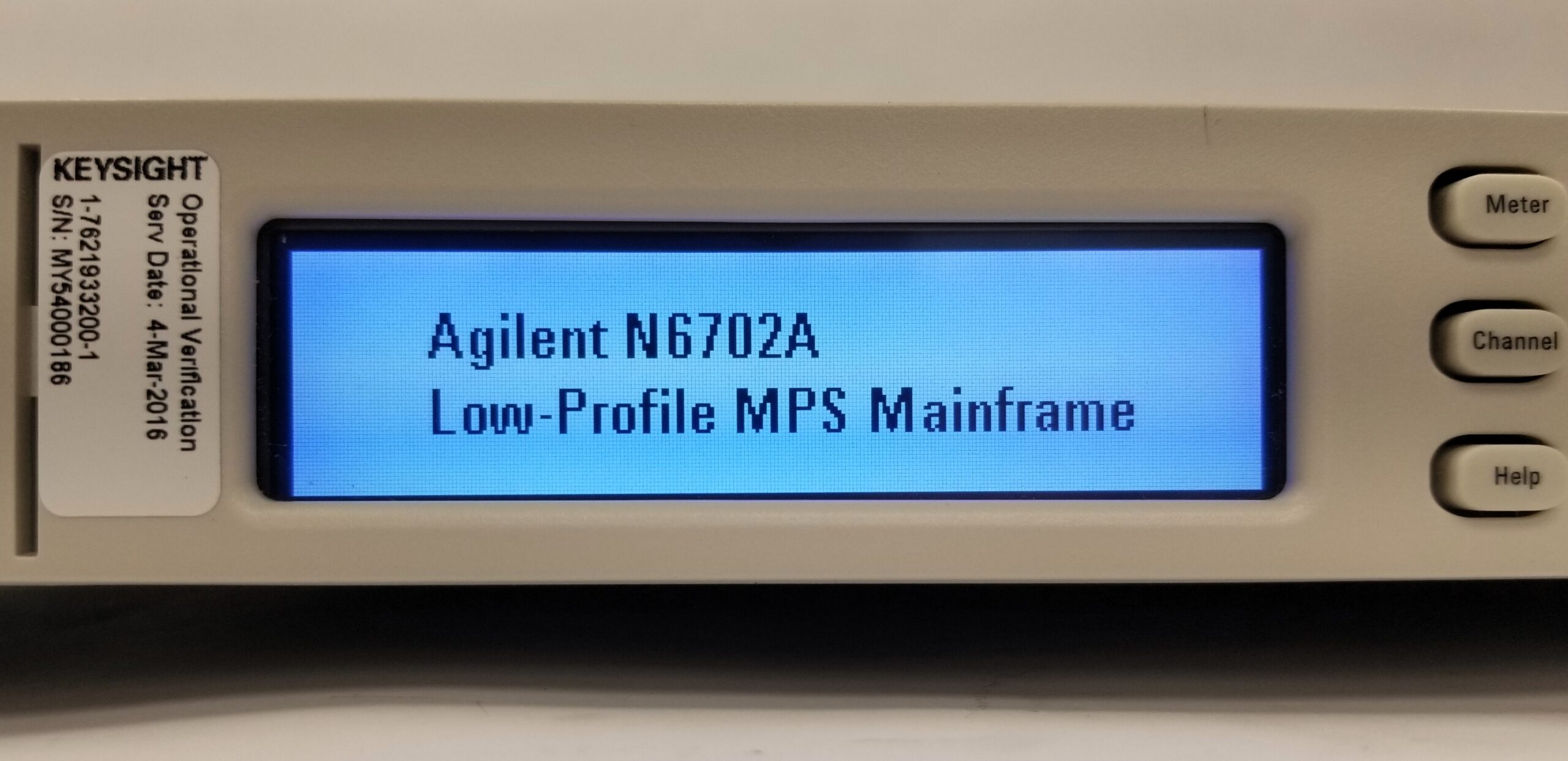

Agilent N6702A 1200-Watt Low Profile MPS Mainframe with 2 N6764A D.C. Modules. Precision Dual output power supply. 0-60 V 0-20A 300W X2. Very good condition, powers on, self-test O.K., display bright, fans operational and clean. Last calibration tamper seals intact. Each output checked O.K. with load resistor. No manual, zebra connectors (for output connection) or other accessories. Purchaser responsible for any calibration and/or certification if required, proper installation and use. As shown.
N6702:

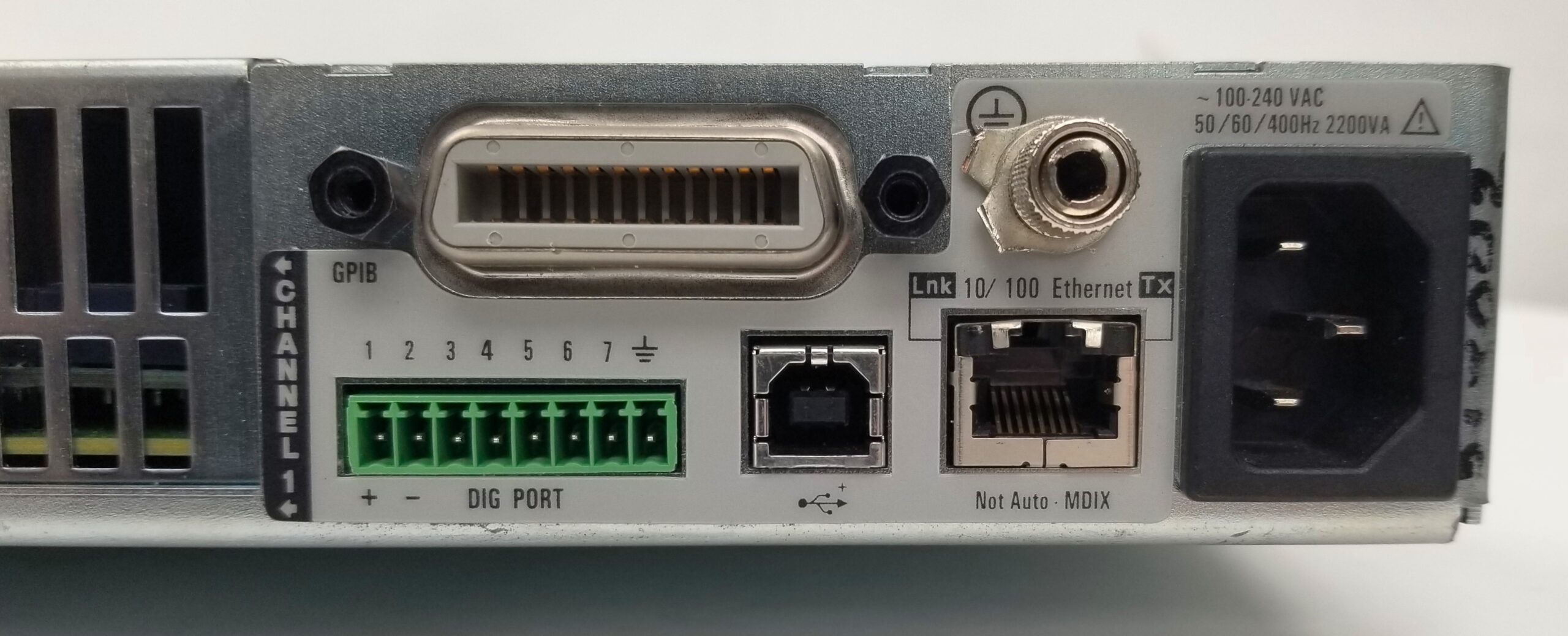

The Agilent N6702A is a 1200 W 1U high, 4-slot modular power system mainframe that accepts from 1 to 4 N6700 series DC power modules in any combination. Modules are ordered separately. The N6700B offers GPIB, LAN, and USB, interfaces standard, and LXI Class C compliance. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 – 300 W.

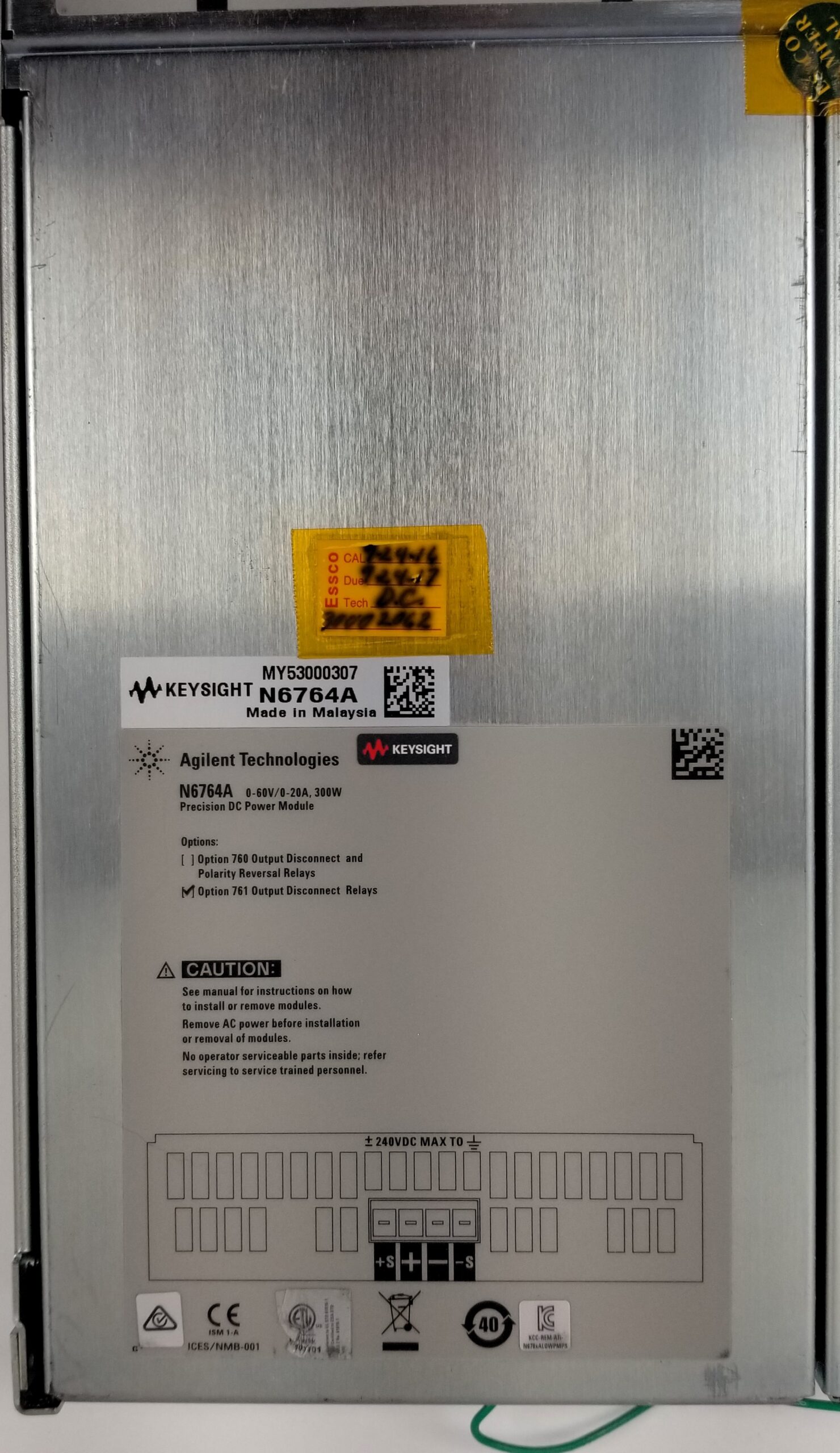

N6764A:
- For applications where precision is required
- Provides precise control and measurements in milliampere and microampere region
- Ability to simultaneously digitize voltage and current, and capture those measurements in oscilloscope-like data buffer
- DC output ratings (volts/amps/watts): 60 V/20 A/300 W
- Ripple and noise (p-p/rms): 6 mV/1 mV
- Voltage programming accuracy: 0.03% + 12 mV
- Current programming accuracy: 0.1% + 15 mA
- Voltage measurement accuracy: 0.03% + 25 mV
- Current measurement accuracy: 0.1% + 5 mA
