Agilent E8663B Analog Signal Generator 100 KHz-3.2GHz

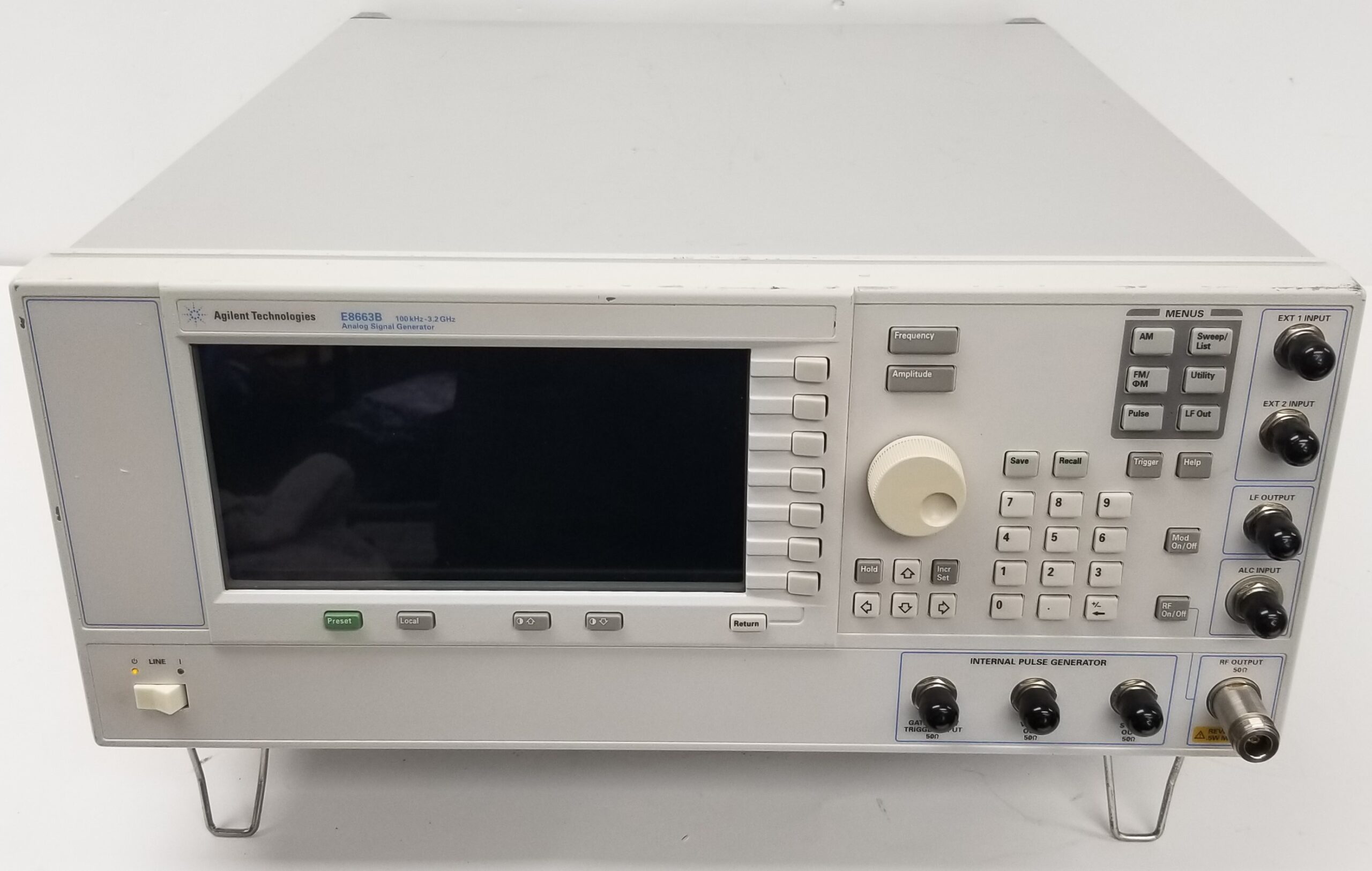

Agilent E8663B Analog Signal Generator 100 KHz-3.2GHz. Unit powers on and passes self-test with no errors. Display bright with no visible defects. fan clean and quiet. Last Agilent calibration seal affixed and intact. Basic check at various frequencies, modulation types and output levels O.K. Purchaser responsible for any calibration, certification or maintenance. No manual, software (if applicable), test cables or other accessories. Handle, desk feet with tilt stands and rear bumpers all present. As shown.

Product Overview

The Agilent E8663B is a fully synthesized signal generator with low phase noise and high output power. It contains an electronic oscillator, a circuit that is capable of creating a repetitive waveform.

Additional Features:

• Frequency range: 100 kHz to 3.2 GHz or *9 GHz with option*
• .001 Hz resolution
• -135 to +24 dBm typical output power with Option 1EU
• AM, FM, ØM, and pulse (may be simultaneously enabled)
• Typical 6 ns rise/fall times and 20 ns pulse width
• Dual internal function generators: sine, square, triangular, ramp, and noise
• 10BaseT LAN and GPIB
• SCPI and IVI-COM drivers
• Backwards compatible with the Agilent 8662A, 8663A and E8663B signal generators
• Compatible with the Agilent E5500 and 3048A phase noise test systems
