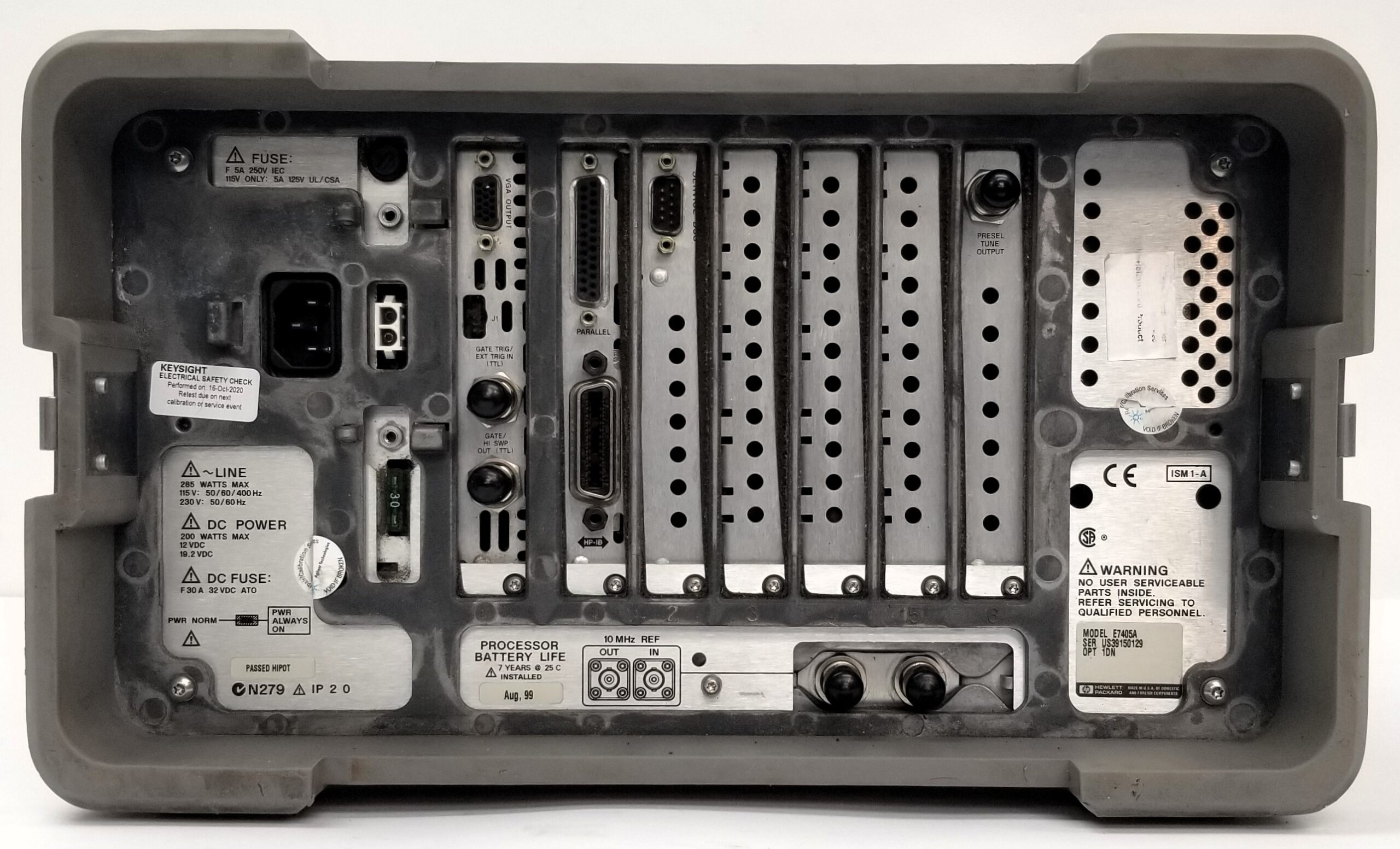

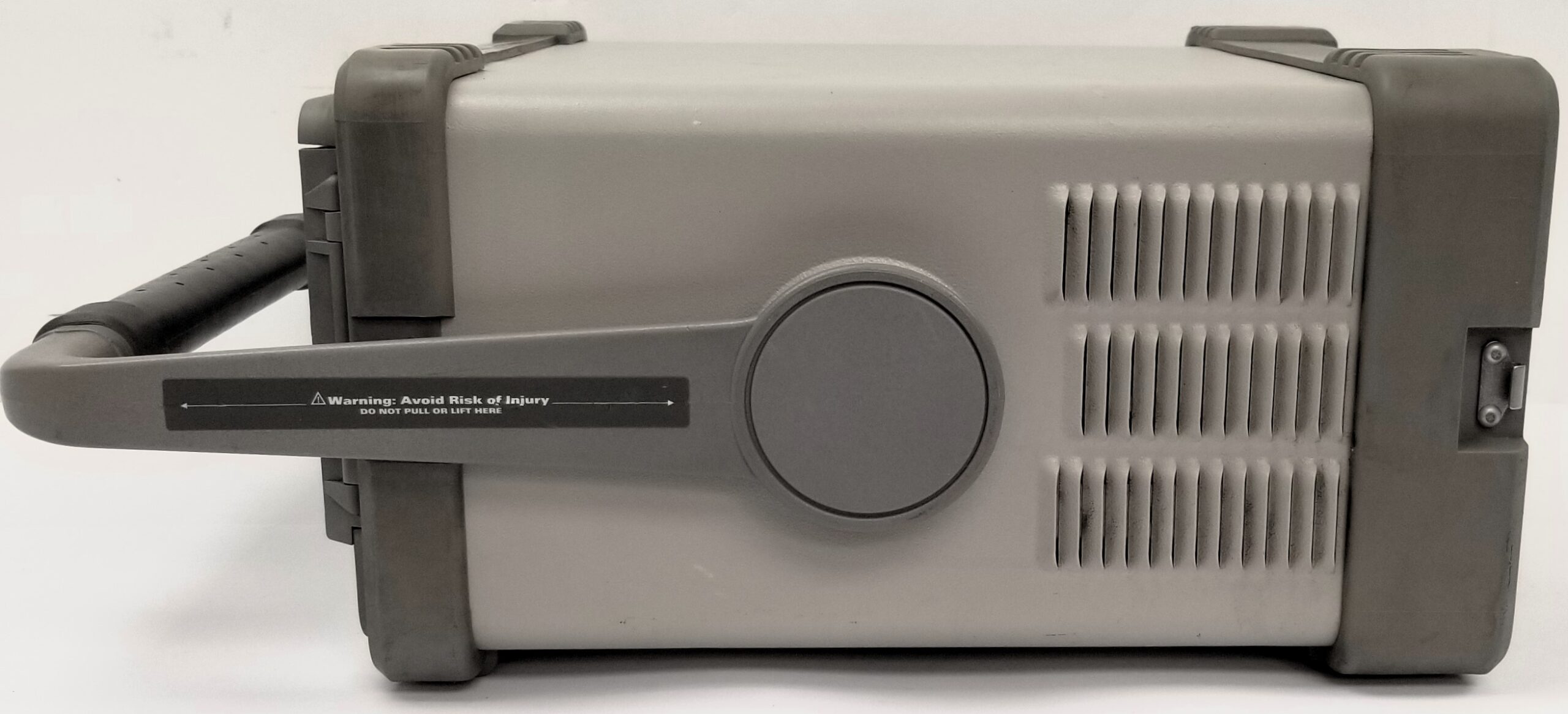

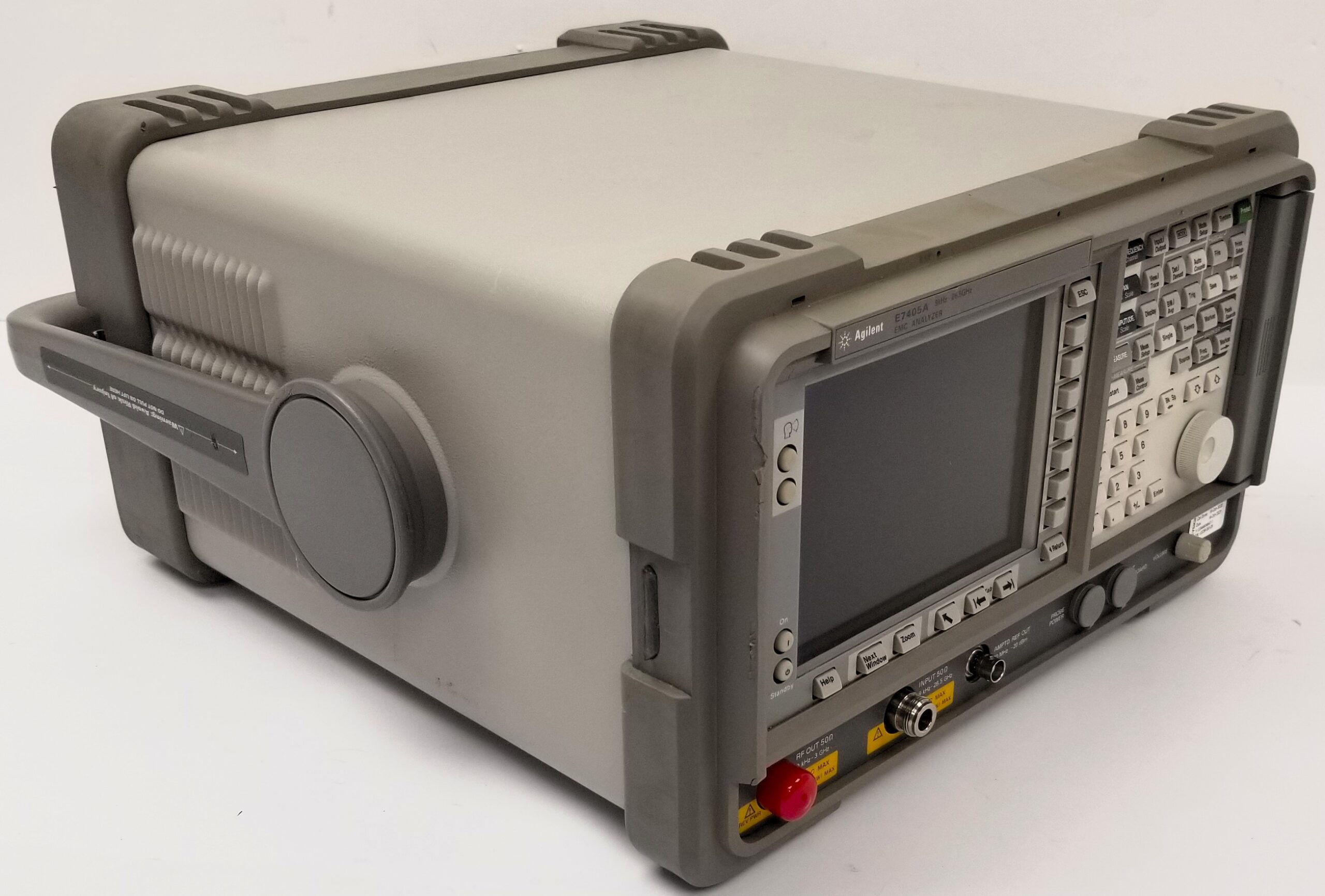

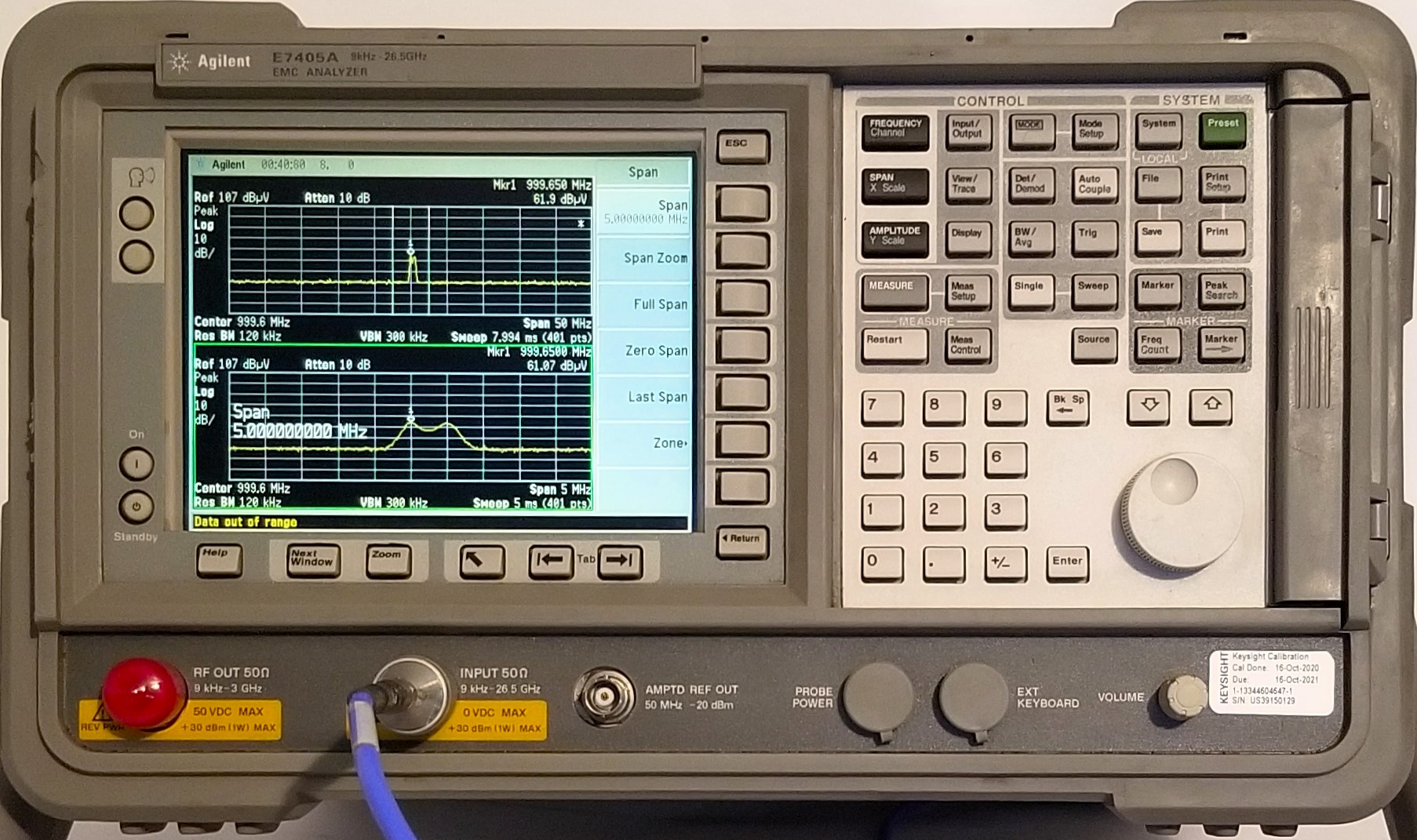

Agilent E7405A EMC Analyzer OPT 1DN 9KHz-26.5GHz. Good condition with minor scuffs on rubber surrounds for front and rear. Unit powers on, display bright, fan quiet, completes self-test and instrument initialization. Display then shows “align now” error code. After self-alignment (about 3-4 minutes) instrument responds O.K. to our test signal generator at various frequencies and levels throughout its bandwidth. When unit is turned off or unplugged, it requires self-alignment again to function without the error code present – this symptom may be caused by a weak or discharged processor battery according to several reliable resources. Purchaser responsible for any calibration, certification, updates or other maintenance if required. No manual, covers, cables or other accessories. As shown.
- 1 Hz to 5 MHz (including 200 Hz, 9 kHz, 120 kHz, 1 MHz EMI BW)
- +12.5 dBm TOI
- ≤150 dBm displayed average noise level (DANL)
- Optional (UKB) for lower frequency of 100 Hz
- Log sweep
- Built-in preamplifier
- Optional tracking generator
- Options included standard are: A4H, AYQ, B72, 060, 1DR, 1DS
- Compatible with E7415A EMI Software
- Compatible with BenchLink Web Remote software
| Frequency range | 9 kHz – 26.5 GHz |
| TOI | +12.5 dBm |
| DANL | ≤ 150 dBm |
| Optional UKB | Lower frequency of 100 Hz |
| Counter resolution | 1 Hz – 100 kHz |
| Input Attenuator Range | 0 – 60 dB, in 5 dB steps |
| Temperature Range | 0 – 55°C |
| Voltage | 12 – 20 Vdc |
| Weight | 17.1 kg (37.7 lb.) |
| Dimensions (H x W x D) | 416 mm x 222 mm x 409 mm |
