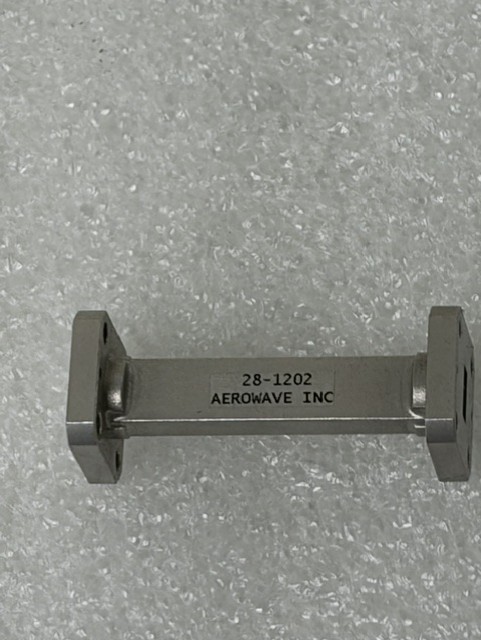

The Aerowave 28-1202 is a WR-28 rectangular waveguide straight section designed for Ka-band microwave applications. It is a 2-inch-long waveguide section used for transmitting RF energy in the 26.5 GHz to 40 GHz frequency range.
Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Aerowave Inc. |
| Model | 28-1202 |
| Waveguide Size | WR-28 |
| Frequency Range | 26.5 – 40 GHz (Ka-Band) |
| Length | 2 inches |
| Waveguide ID | 0.280″ × 0.140″ |
| Typical Flanges | UG-599/U compatible |
| Application | Microwave, radar, satellite communications, test systems |
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 3 × 2 in |
