Acterna (TTC) FIREBERD 6000A Communications Analyzer – Portable WAN Test Set for Datacom and Telecom Networks

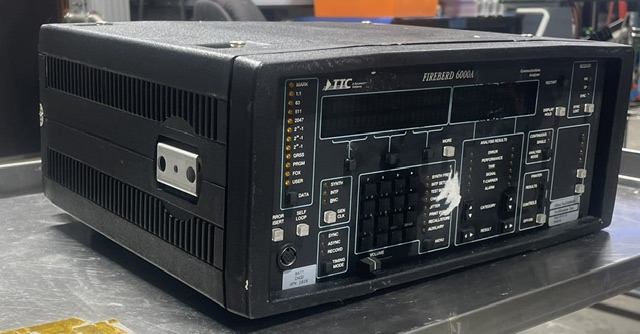

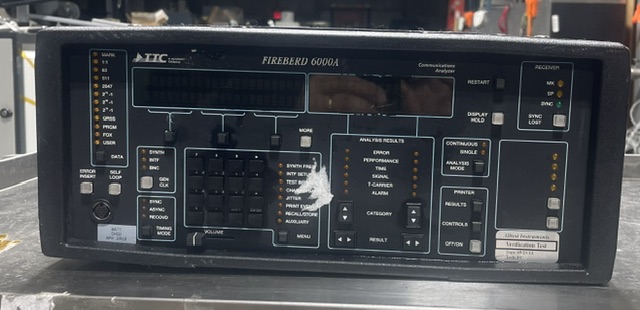

This used Acterna (formerly TTC, now Viavi) FIREBERD 6000A is a powerful, multi-functional communications analyzer designed for comprehensive testing of data networks . It is an industry-standard test set for bit error rate testing (BERT), physical layer analysis, and performance monitoring on a wide range of interfaces .
With over 20 interface modules available, this portable WAN analyzer can test T1/FT1, T3, E1/G.703, DDS, RS-232, V.35, RS-449, X.21, and HSSI at data rates from 50 b/s to 52 Mb/s . It supports advanced testing for ATM, frame relay, ISDN, and jitter generation/measurement, making it a versatile tool for central offices, engineering labs, and field technicians .
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Acterna / TTC (Telecommunications Techniques Corp.) / JDSU / Viavi |
| Model | FIREBERD 6000A |
| Data Rate Range | 50 b/s to 52 Mb/s |
| Compatible Interfaces | T1/FT1, T3, E1/G.703, DDS, RS-232, V.35, RS-449, X.21, HSSI |
| Protocol Testing | ATM, Frame Relay, ISDN, Fast Packet |
| Key Features | Bit Error Rate Testing (BERT), Jitter Generation/Measurement, TIMS |
| Case Type | Plastic (Standard) or Metal (Ruggedized) |
| Programmability | 10 user-defined test scripts, Frequency Synthesizer, Custom Patterns |

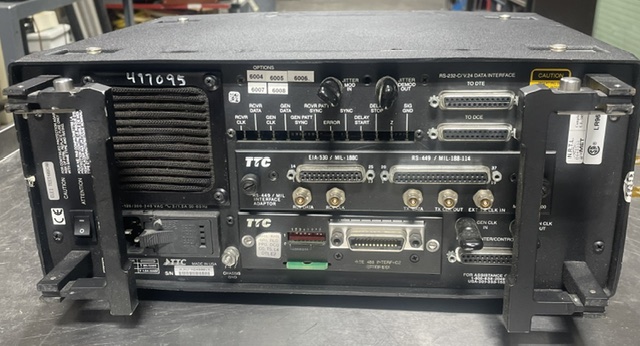

| Interface | RS-232 for remote control |
| Weight | ~19 lbs |
| Condition | Used – Untested |
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Modular Interface | Over 20 interface modules allow flexible testing of T1, E1, V.35, and more |
| Wide Data Rate | Test from 50 b/s to 52 Mb/s, including standard and non-standard rates |
| Advanced Testing | Includes jitter generation, ATM traffic monitoring, and frame relay analysis |
| Programmable | Save up to 10 test configurations for quick recall |
| Remote Operation | RS-232 interface for remote testing and printer output |
| Portable Design | Lightweight case for field use |
Applications
-
Telecommunications: Troubleshooting and testing T1/E1 circuits.
-
Enterprise Networks: Maintaining leased lines and data links.
-
Engineering Labs: Bit error rate testing on digital communication systems.
-
Education & Training: Demonstrating WAN protocols like ATM and Frame Relay.
