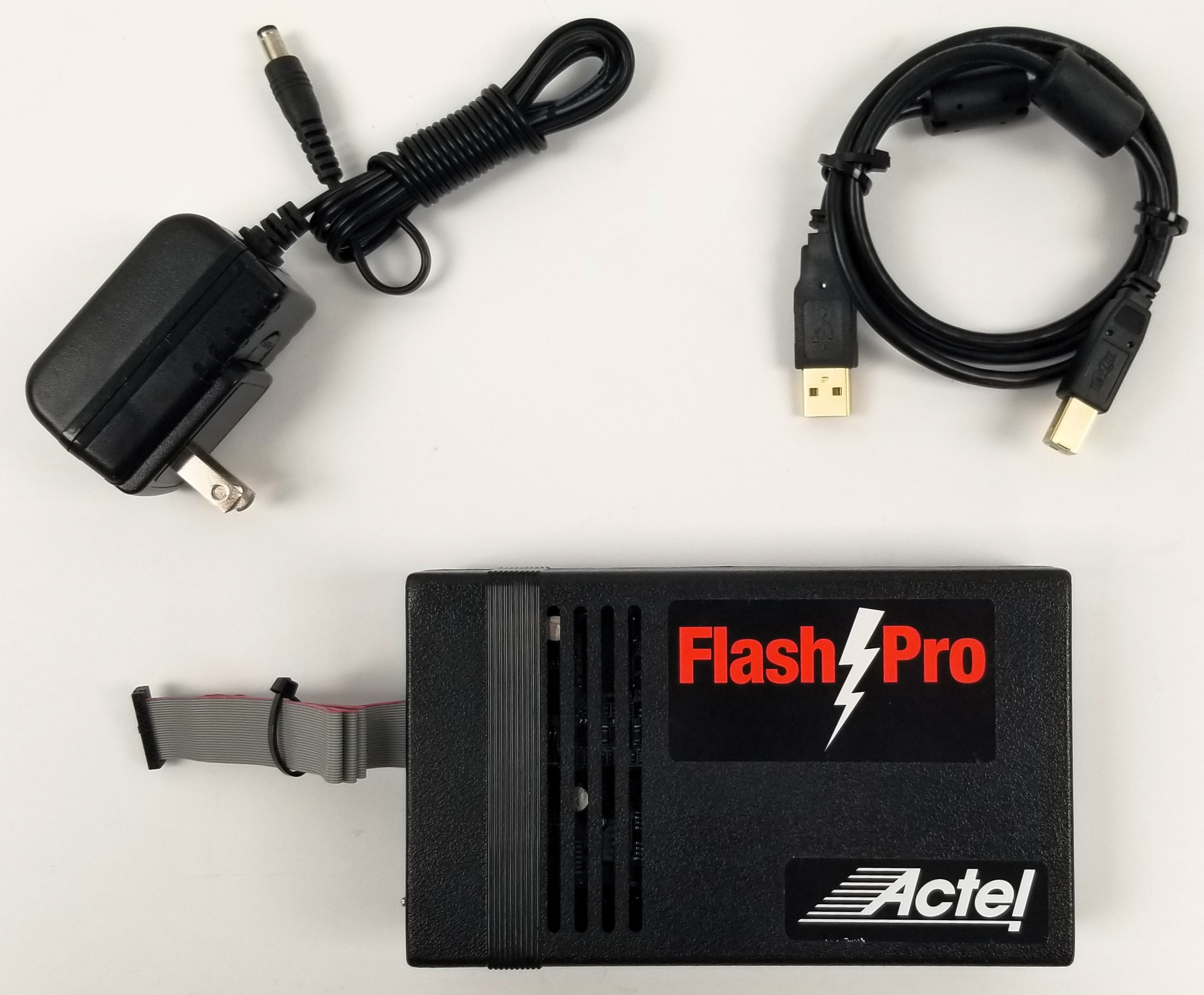

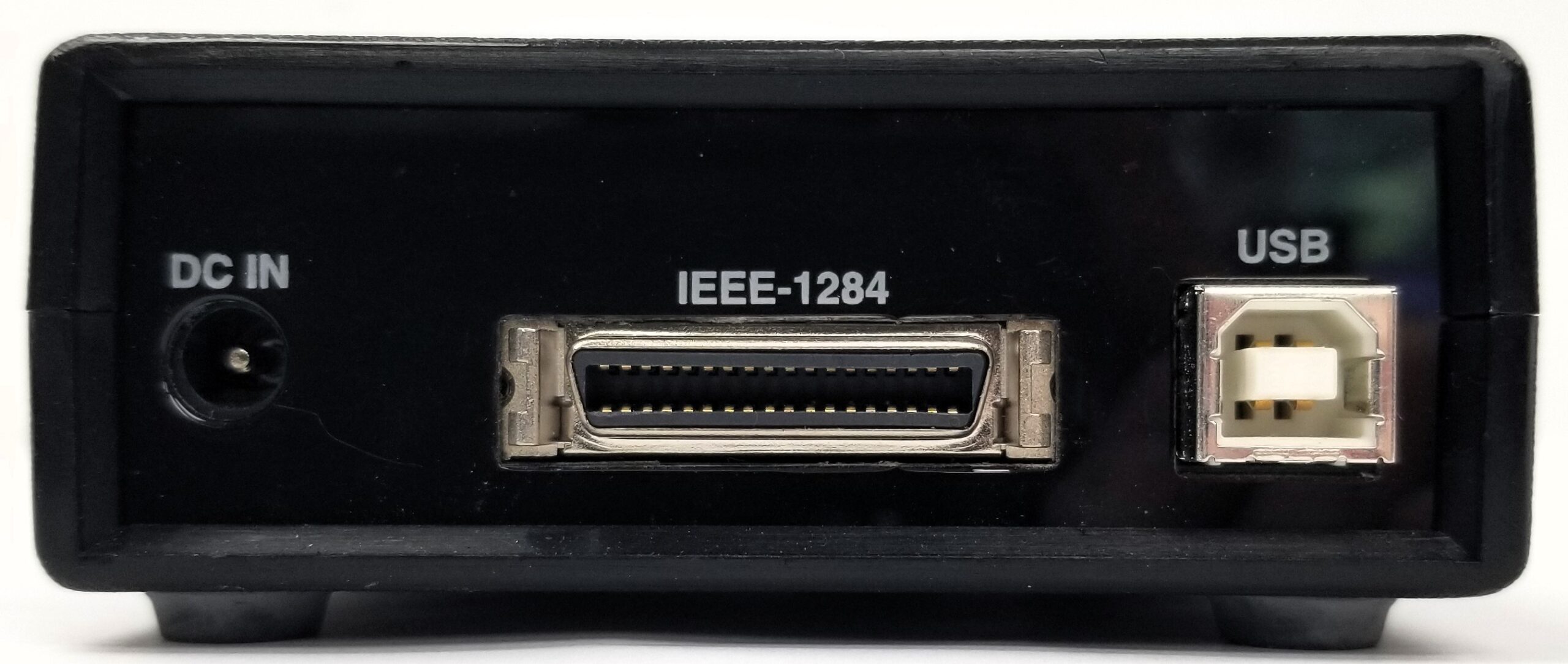

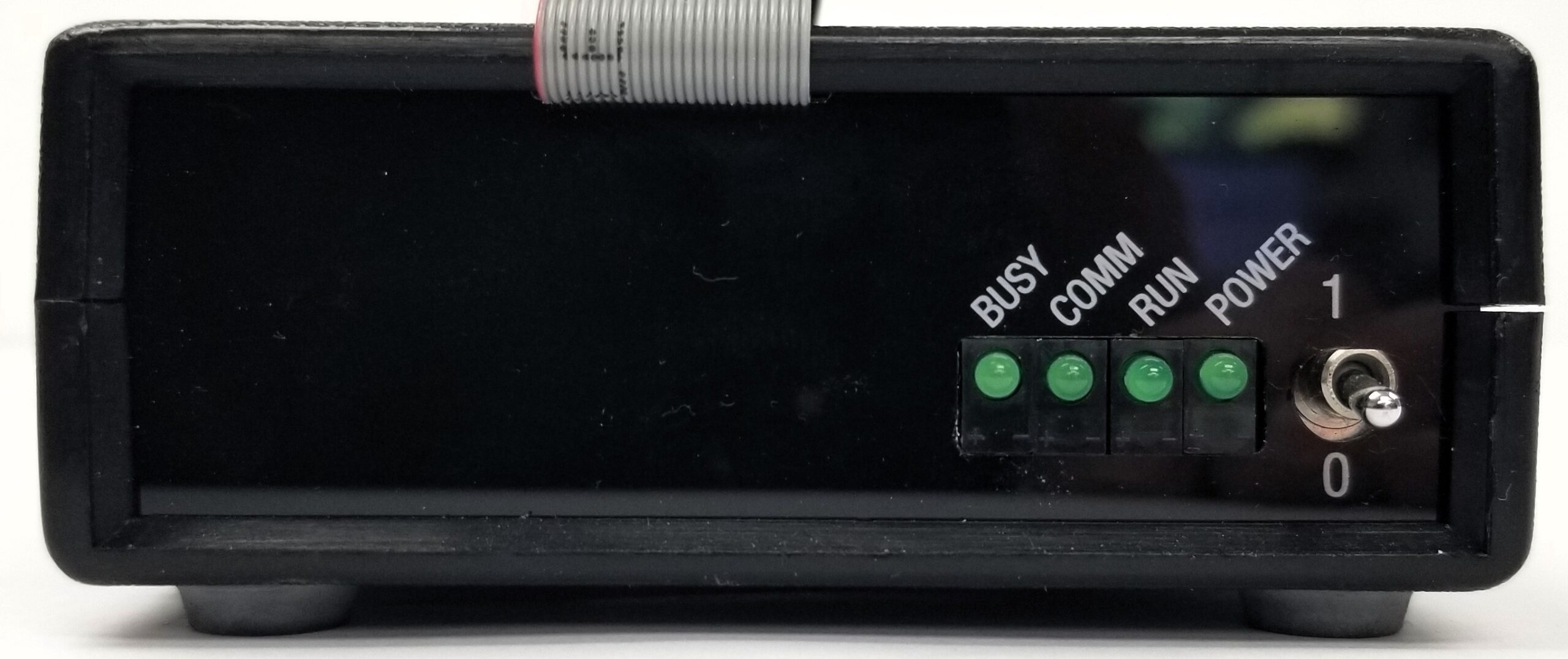

Actel FlashPro IEEE 1149 JTAG Programmer. Very good condition, with USB cable and +5V power supply. No manual. Purchaser responsible for system compatibility and proper use. As shown.
In-System Programming
The Actel family of FlashPro device programmers provides in-system programming (ISP) in an easy to use, compact system that supports Fusion and all ProASIC families. Whether you are programming a board containing a single device or multiple devices connected in a chain, you can quickly program and reprogram by connecting to a PC and the target board. FlashPro programmers provide everything you need to program Flash devices for compliance with IEEE 1149, using the JTAG port. They automatically skip any non-programmable devices in the JTAG chain, ensuring straightforward programming. FlashPro Saves Space, Money, and Time Programming with the FlashPro series of programmers saves you board space, since a single JTAG chain can be used for all JTAG devices. Programming via the JTAG port adds the flexibility of field upgrades or post-assembly, production-line “characterization.” Costs can be significantly reduced as a result of eliminating sockets on the board. Because FlashPro programmers use JEDEC-standard STAPL files, there are no built-in algorithms; there is no delay between product release and programming support. FlashPro programmers support IEEE 1532 for increased design compatibility. The FlashPro series of programmers may also be used for interactive debug of designs by using embedded IP in the Flash devices in conjunction with the Logic Navigator software. In addition, Actel Fusion™ devices have specific debug software to allow access to Fusion-specific peripherals such as Flash memory and an analog to digital converter (ADC).
