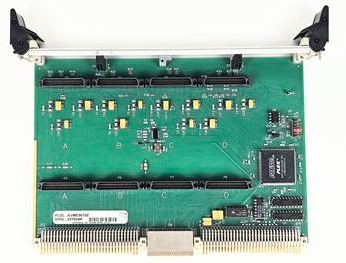

ACROMAG AVME9670E Digital I/O Module

Overview

The ACROMAG AVME9670E is a VMEbus-compatible digital input/output (I/O) module designed for industrial and embedded applications. It is tailored for high-performance data acquisition and control systems, offering flexibility and reliability in managing digital signals.

---

Key Features

1. VMEbus Compliance
   • Fully adheres to VMEbus specifications, ensuring compatibility with standard VME systems.
2. High-Density I/O Channels
   • Provides numerous digital input/output channels for efficient signal management in compact spaces.
3. Flexible Configuration
   • Allows customization of input and output modes to suit specific application requirements.
4. Isolation
   • Optically isolated channels to protect equipment and maintain signal integrity in noisy environments.
5. Wide Voltage Range
   • Supports a broad range of input and output voltages, making it adaptable to various industrial applications.

---

Specifications

Feature	Details
Bus Compatibility	VMEbus
Digital Channels	32 or more channels (model-dependent)
Input Voltage Range	0-30V (typical)
Output Voltage Range	0-30V (typical)
Isolation	Optical isolation up to 500V
Response Time	High-speed switching (microsecond range)
Connectors	Standard VME and external signal connectors
Operating Temperature	-40°C to 85°C (industrial-grade)
Power Consumption	<10W (typical)

---

Applications

1. Industrial Automation
   • Controls and monitors machinery, processes, and sensors.
2. Aerospace and Defense
   • Manages critical systems requiring reliable digital I/O interfaces.
3. Data Acquisition Systems
   • Collects and processes digital signals in laboratory and field environments.
4. Test and Measurement
   • Acts as an interface for automated test equipment (ATE).
5. Embedded Systems
   • Integrates into custom VME-based embedded solutions.

---

Advantages

1. Robust Performance
   • Reliable operation in harsh industrial and environmental conditions.
2. Versatile Design
   • Configurable for a wide range of I/O tasks.
3. VME Compatibility
   • Easy integration into existing VMEbus systems.
4. Noise Immunity
   • Optical isolation minimizes interference in high-noise settings.
5. Long Lifecycle Support
   • Ideal for systems requiring long-term availability and maintenance.

---

Limitations

1. Legacy Technology
   • VMEbus systems are becoming less common compared to modern interfaces like PCIe.
2. Limited Scalability
   • The module’s I/O capacity may not be sufficient for very large systems.

---

Technical Summary

Attribute	Details
Form Factor	VMEbus
Channel Configuration	Digital I/O, optically isolated
Power Requirements	VME standard (5V/3.3V)
Connectors	VME P1/P2, external connectors
