Abbot Electronics S3D-27A-400 Aircraft Inverter Module

Abbot Electronics S3D-27A-400 Aircraft Inverter Module. New. No manual or other accessories. Purchaser responsible for any certification if required and proper installation/use. As shown.

Product Description:

The Abbot Electronics S3D-27A-400 Aircraft Inverter Module is a compact, high-performance solution designed for aviation-grade power conversion. Specifically engineered to meet the rigorous demands of aircraft electrical systems, this inverter efficiently converts 24-30 Volts DC input into 27 Volts 400 Hz sinewave AC output, supporting a wide range of avionics and onboard electrical equipment.

With a robust, lightweight form factor, the S3D-27A-400 is ideal for aircraft integration, aerospace ground support systems, and military-grade electrical applications. It delivers stable 400Hz sinewave frequency and voltage output, ensuring reliability in critical environments and compliance with aerospace power distribution standards.

Key Features:

• ✈️ 27 Volts 400 Hz AC Output for Aviation and Aerospace Applications
• 🔌 Efficient DC to AC Power Conversion
• 🛠️ Compact, Modular Construction for Easy Installation
• ⚡ Reliable Output Performance Under Variable Load Conditions
• 🌐 Suitable for Military, Commercial Aircraft, and Avionics Systems

Applications:

• Aircraft Power Distribution Systems
• Aerospace Ground Support Equipment (GSE)
• Avionics Testing and Simulation Rigs
• Defense and Military Electronics
• High-frequency AC Power Systems

Specifications:

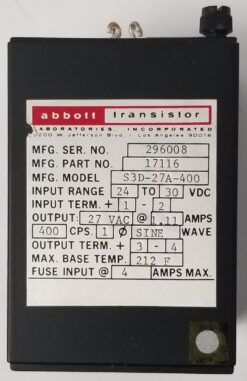

• Model: S3D-27A-400
• Input Voltage: DC 24-30
• Output Voltage: 27V AC (typical)
• Output Frequency: 400 Hz sinewave
• Power Rating: 4A Max
• Form Factor: Modular/Inverter Unit
• Cooling Method: Convection cooled (Heatsink)
• Compliance: Aviation and MIL-grade specifications

No manual or other accessories. Purchaser responsible for any certification if required and proper installation/use. As shown.
