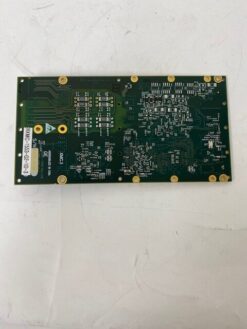

The Abaco Systems RXMC-1553 is a high-performance XMC mezzanine card designed for MIL-STD-1553A/B Notice II applications. It offers one or two dual-redundant channels and includes advanced Application Programming Interface (API) software to streamline application development.
Key Features:
-
Multi-Function and Dual-Function Modes: The RXMC-1553 can be configured for simultaneous operation as a Bus Controller (BC), up to 31 Remote Terminals (RTs), and Bus Monitor (BM). Dual-function versions support combinations of these modes, such as BM with BC or BM with RTs.
-
High-Precision Time-Tagging: It features 64-bit, 25-nanosecond message time-tagging for accurate event tracking.
-
IRIG-B Support: Includes an IRIG-B signal receiver and generator for time synchronization.
-
Error Handling: Offers extensive error injection and detection capabilities to support robust testing and simulation.
-
Flexible I/O Options: Available with rear P16, rear P14, or front I/O configurations to suit various system requirements.
-
Software Support: Provides high-level API support for Windows®, VxWorks®, and Linux operating systems (contact Abaco Systems for supported versions).
-
Rugged Design: Conductively cooled and conformal-coated versions are available for deployment in harsh environments.
| Weight | 1 lbs |
|---|---|
| Dimensions | 9 × 6 × 1 in |
