Product Description

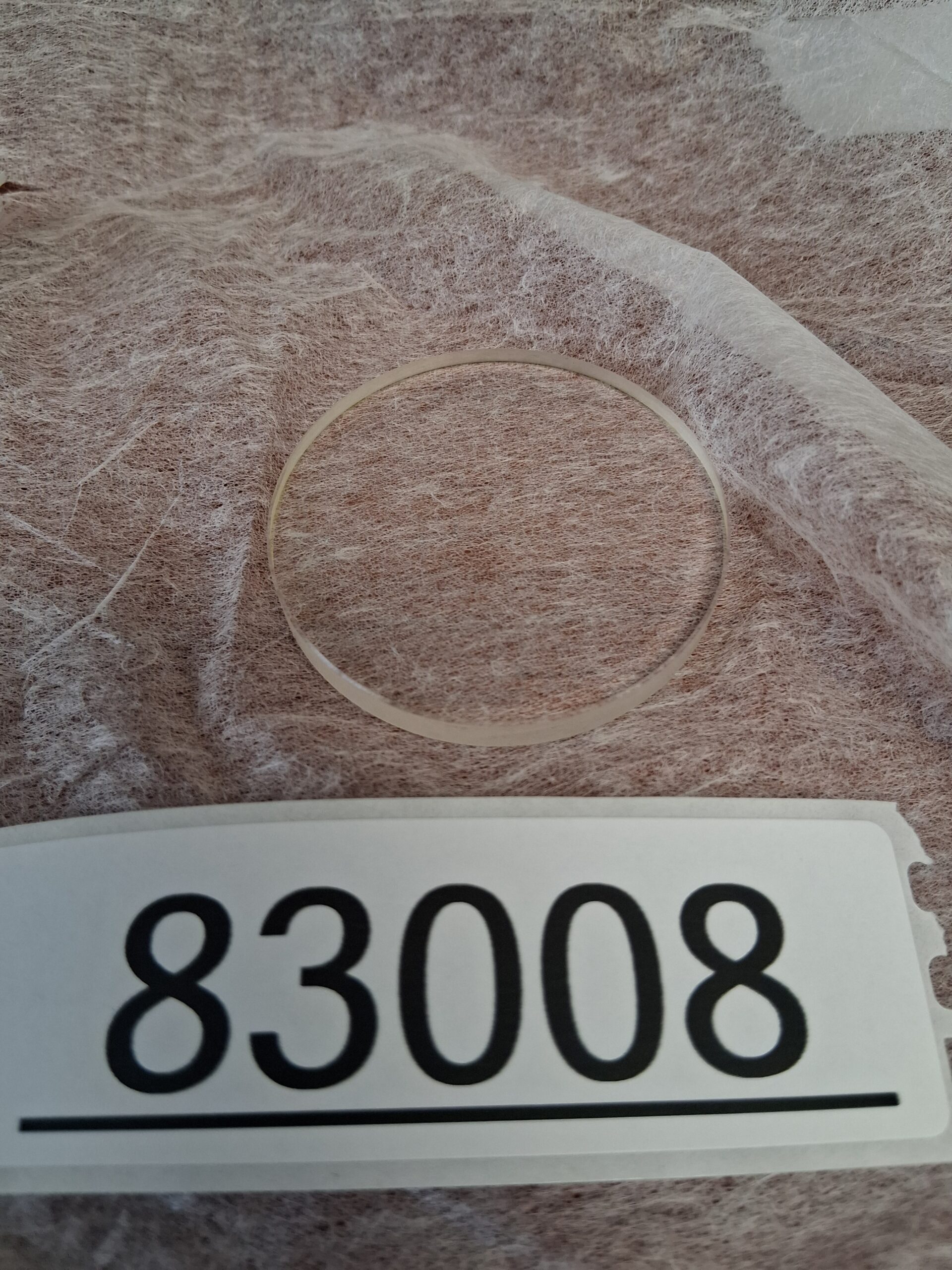

Premium Optical-Grade Acrylic Positive Meniscus Lens – 2″ (50mm) Diameter, ~18″ Focal Length
Elevate your optical projects with this high-quality positive meniscus lens, crafted from crystal-clear PMMA acrylic for exceptional light transmission, impact resistance, and durability. Whether you’re teaching the fundamentals of optics, building a DIY projector, or exploring creative photography, this lens delivers sharp, distortion-free performance at a fraction of the weight and cost of glass.
🔍 Key Specifications:
-
Diameter: 50mm (2 inches)
-
Thickness: 7.5mm (robust, rigid, warp-resistant)
-
Focal Length: ~18 inches (457mm) – gentle positive power
-
Design: Positive meniscus – strongly convex front, very subtle concave rear
-
Material: Optical-grade acrylic (PMMA) – lightweight, shatterproof, UV-stable
-
Surface Quality: Excellent – pristine; no scratches, grooves, or casting defects
-
Edge Finish: Smooth polished edge – ready for custom mounting
-
Condition: Like-new surplus – carefully stored
✅ Condition & Notes:
-
Condition: Excellent – Pristine Surfaces
-
Origin: Surplus from educational or industrial optical stock
-
Visual: Completely clean – no haze, crazing, or abrasions
-
Includes: Lens only – no handle, frame, or mounting hardware
⚙️ Why This Lens Excels:
🧪 Superior Meniscus Design:
Unlike simple plano-convex lenses, the positive meniscus configuration (convex front + subtle concave rear) minimizes spherical aberration and delivers sharper, more uniform focus across the aperture—ideal for imaging and projection applications.
💎 Optical-Grade Acrylic:
-
92% light transmission – nearly equivalent to uncoated glass
-
Impact-resistant – will not shatter if dropped
-
UV-stable – will not yellow over time
-
50% lighter than glass – easier to mount and position
📏 Generous Focal Length:
The ~18-inch focal length provides comfortable working distance for:
-
Low-power magnification (1.5–2x) with wide field of view
-
Projection optics with manageable throw distance
-
Light collection without extreme curvature
🛠️ Applications & Uses:
🔬 Optics Education & Demonstration:
-
Teach refraction, focal points, real/virtual images
-
Demonstrate chromatic aberration vs. achromats
-
Safe, shatterproof option for student labs and outreach
🔍 Low-Power Magnification:
-
1.5–2x comfortable viewing of maps, documents, circuit boards, or fine print
-
Large 50mm aperture provides wide, bright field of view
-
No eye strain – ideal for extended reading or inspection tasks
📽️ DIY Projection & Imaging:
-
Condenser lens in overhead or slide projectors
-
Objective lens in simple telescopes or viewfinders
-
Close-up photography – creative diopter effects
💡 Light Collection & Beam Control:
-
Gather light onto sensors, solar cells, or photodiodes
-
Soften or spread LED or lamp beams
-
Prototype optics for custom instruments
🧰 Maker & Hobbyist Projects:
-
Build a smartphone projector or magnifying lamp
-
Create a wide-field viewer for birding or nature study
-
Experiment with lens combinations for unique effects
