4DSP FMC110 FPGA Analog Input/Output Mezzanine Card. New in original box. No manual, software (if applicable), or other accessories. As shown.

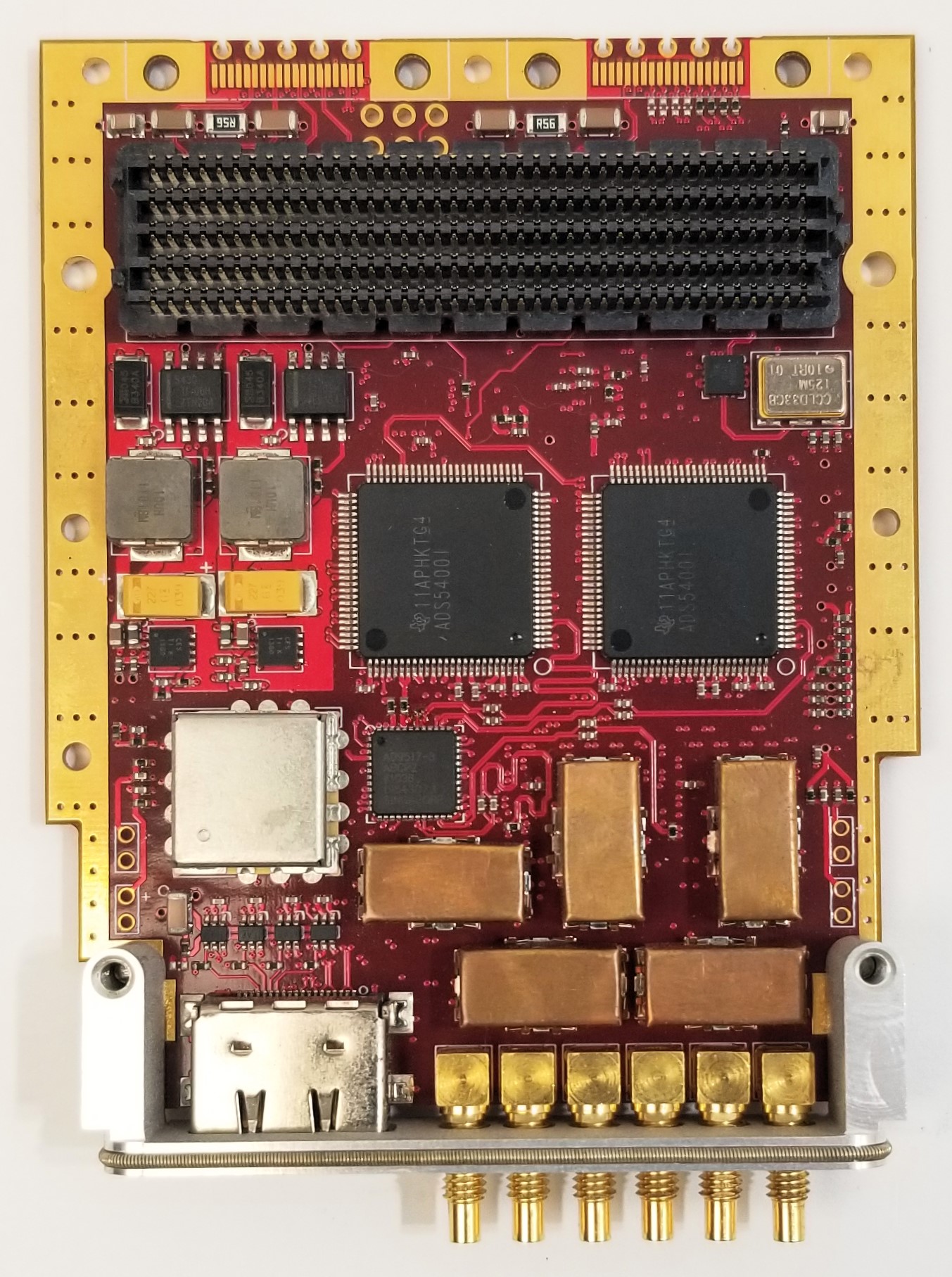

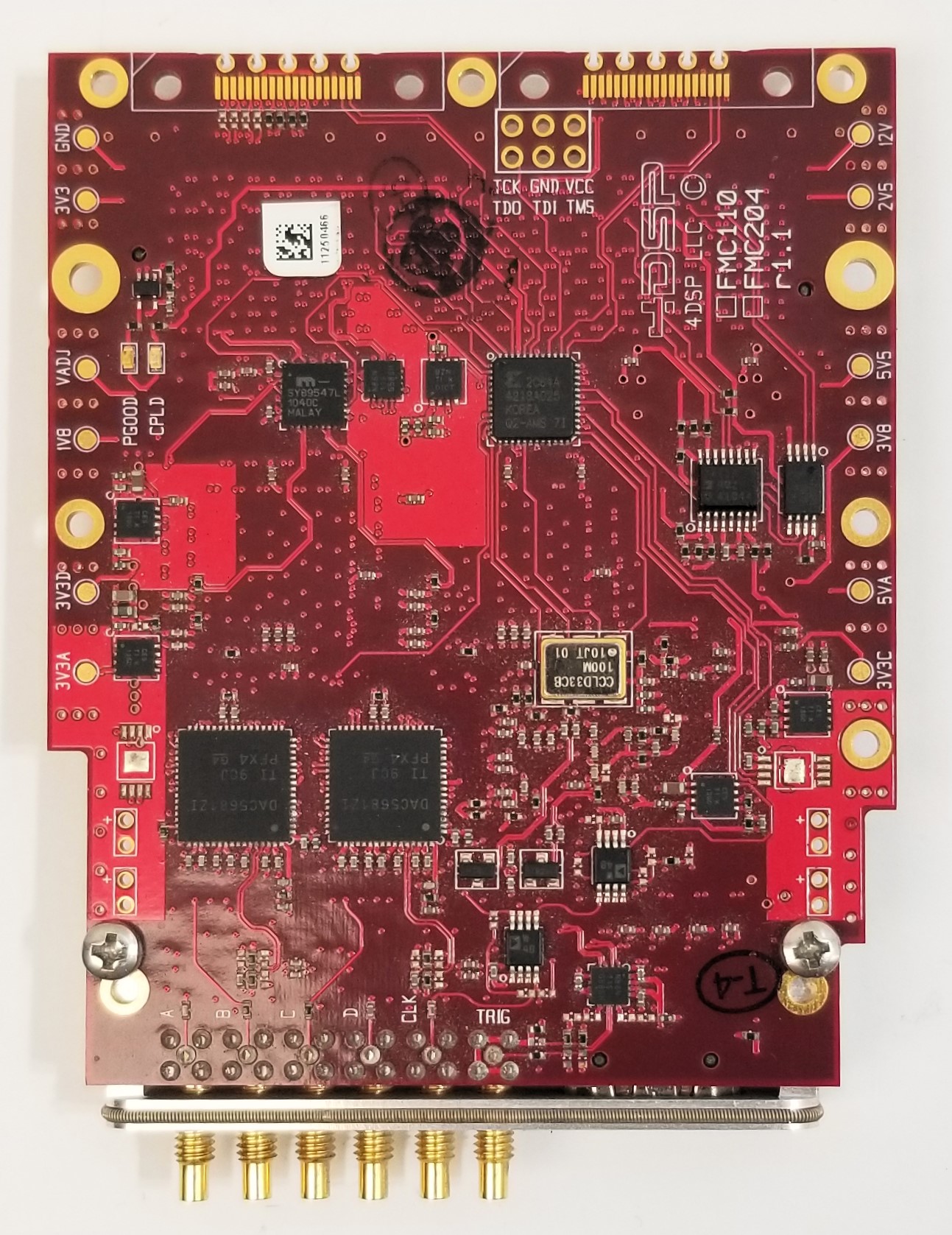

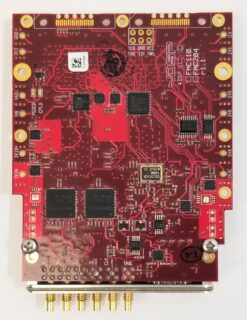

The 4DSP FMC110 FPGA Analog Input / Output Mezzanine Card is a dual channel A/D and dual channel D/A FMC daughter card. The FMC110 provides two channels of 12-bit A/D @ 1 Gsps and two channels of 16-bit D/A @ 1 Gsps enabling simultaneous sampling at a maximum rate of 1 Gsps. The sample clock can be supplied externally through a coaxial connection or supplied by an internal clock source (optionally locked to an external reference). Additionally a trigger input for customized sampling control is a manufactured option.
- Dual – A/D – D/A Channel Operation
- Single Ended AC-Coupled Analog Input
- Clock Source, Sampling Frequency, and Calibration Through an SPI Communication Bus
- (6) Front Panel SSMC Connectors
| Weight | 2 lbs |
|---|---|
| Dimensions | 9 × 6 × 3 in |
