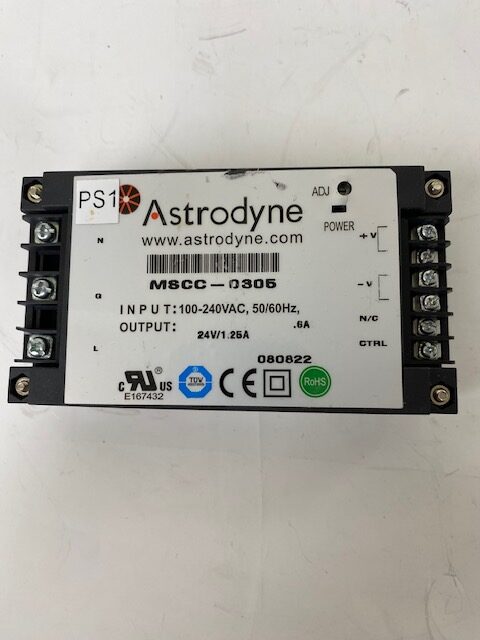

Astrodyne MSCC-0305 Power Supply

​The Astrodyne MSCC-0305 is a 30W ultraminiature modular switching power supply from the MCA-30 series, designed for both medical and industrial applications. Here are its key specifications:

• Output Voltage: 24V DC

• Output Current: 1.25 A

• Input Voltage Range: 90–264 VAC

• Power Output: 30W

• Efficiency: Approximately 80%

• Isolation Voltage: 3,000 VAC input-to-output

• Operating Temperature: 0°C to 50°C

• Mounting Type: Chassis mount

• Dimensions: 4.76″ L × 2.56″ W × 1.00″ H (120.9 mm × 65.0 mm × 25.4 mm)

• Certifications: CE, cURus; compliant with IEC 60601-1 and 60950-1 standard

This power supply is suitable for applications requiring compact, reliable AC/DC conversion, such as in medical devices and industrial equipment. It features universal AC input and is designed for chassis mounting.
