10 inch tapped CF flange

Product Description

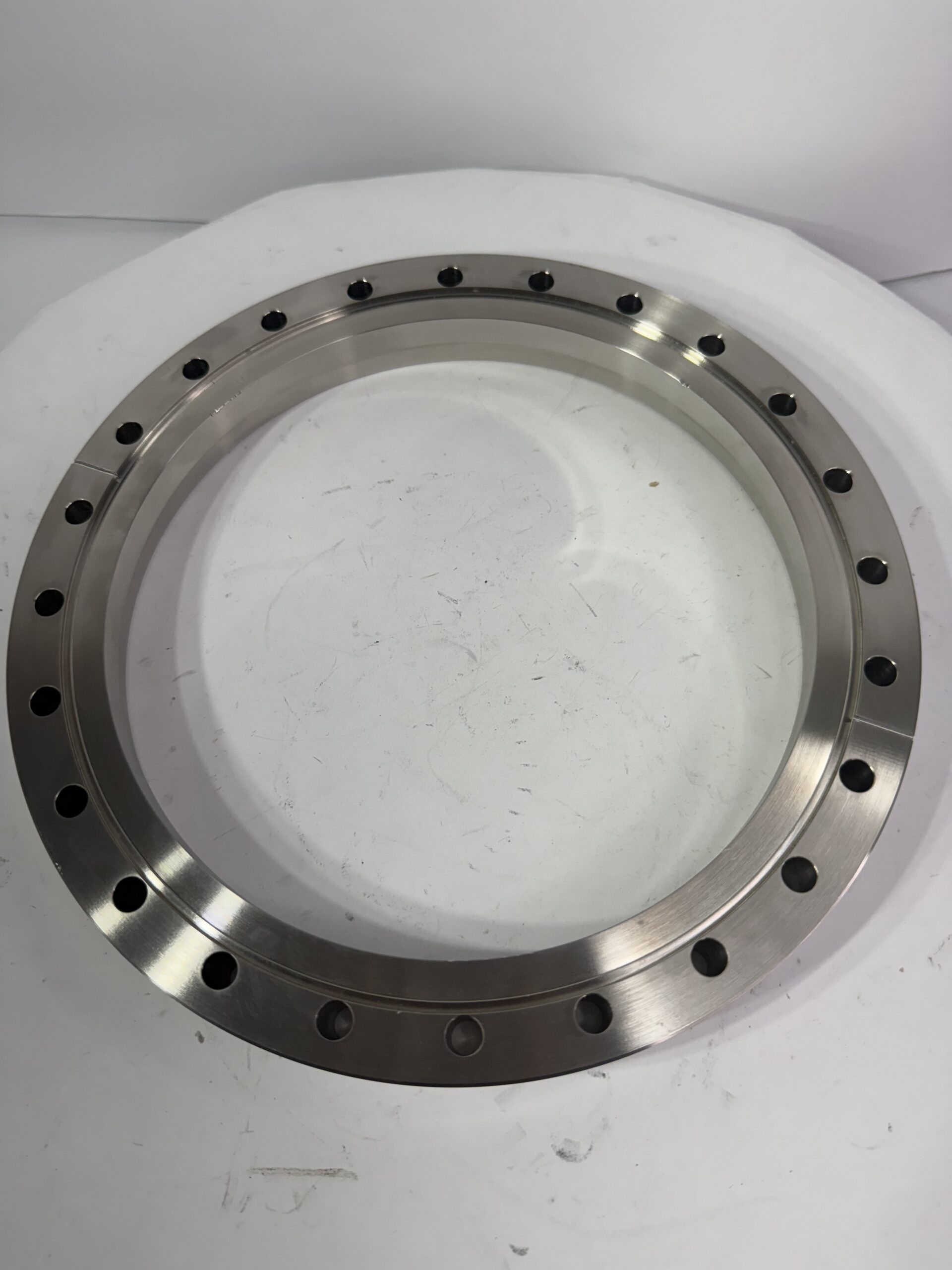

10″ x 8″ Tapped ConFlat (CF) Flange – 316LN Stainless Steel

This high-purity 316LN stainless steel ConFlat flange features a tapped design with clean, threaded holes for simplified and robust assembly in ultra-high vacuum (UHV) systems.

Key Features & Specifications:

• Flange Size: 10″ OD x 8″ ID (254mm x 203mm) – DN200CF

• Material: 316LN Stainless Steel (Low Carbon, Nitrogen Alloyed for high strength and corrosion resistance)

• Type: Tapped (Gender: [Specify Male/Female if known])

• Mounting: Threaded holes for fasteners, eliminating the need for nuts

• UHV Compatible: Precision knife-edge for a copper gasket seal, suitable for pressures down to 10⁻¹¹ Torr

Applications:

• Permanent port installations on vacuum chambers

• High-vibration environments (tapped design resists loosening)

• Semiconductor and thin-film processing equipment

• Research and development UHV systems
