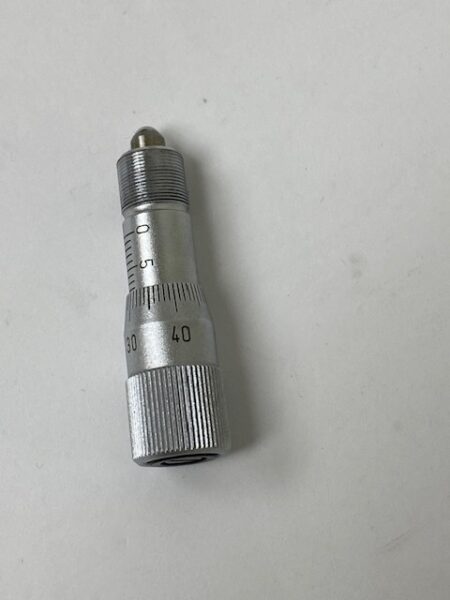

Newport SM-25 Vernier Micrometer – LOT OF 5

Description

🛠️ Key Specs & Features

• Travel Range: 25 mm

• Graduations & Resolution: 10 µm main scale, 1 µm vernier resolution

• Thread Pitch: 0.5 mm (50.8 threads per inch)

• Axial Load Capacity: Approx. 102 N (≈ 23 lb)

• Mounting Interface: 9.5 mm (⅜‑inch) shank, with 3/8‑40 threads

• Drive Mechanism: Precision knob for fine manual adjustment

🔧 Application & Compatibility

• Designed for Newport ULTRAlign™, 460P, and similar mini‑stage systems: smooth, high-resolution control in optical or positioning setups

• Typical use includes precision alignment in labs or teaching setups—for instance, in an atomic conductance experiment to displace a spring gauge by micrometers
